Axle And Differential Front Disassembly / Assembly: Notes

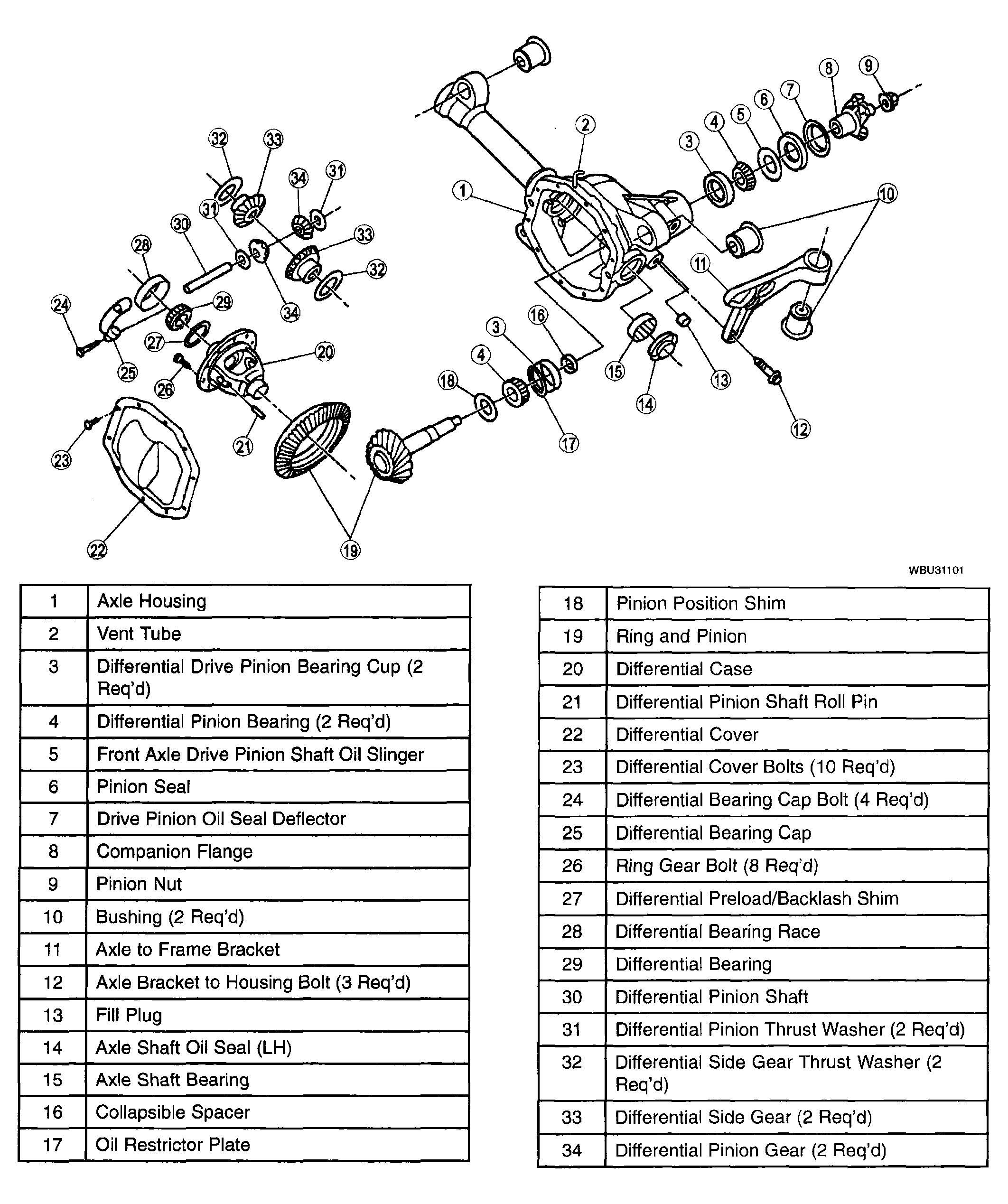

Fig 1: Identifying Axle And Differential Components

G04308863

Courtesy of MAZDA MOTORS CORP.
