Throttle Body Installation Note

  1. Tighten the throttle body installation bolts in the order shown in the figure.

    Tightening torque

    8-11.5 N.m {82-117 kgf.cm, 71-101 in.lbf}

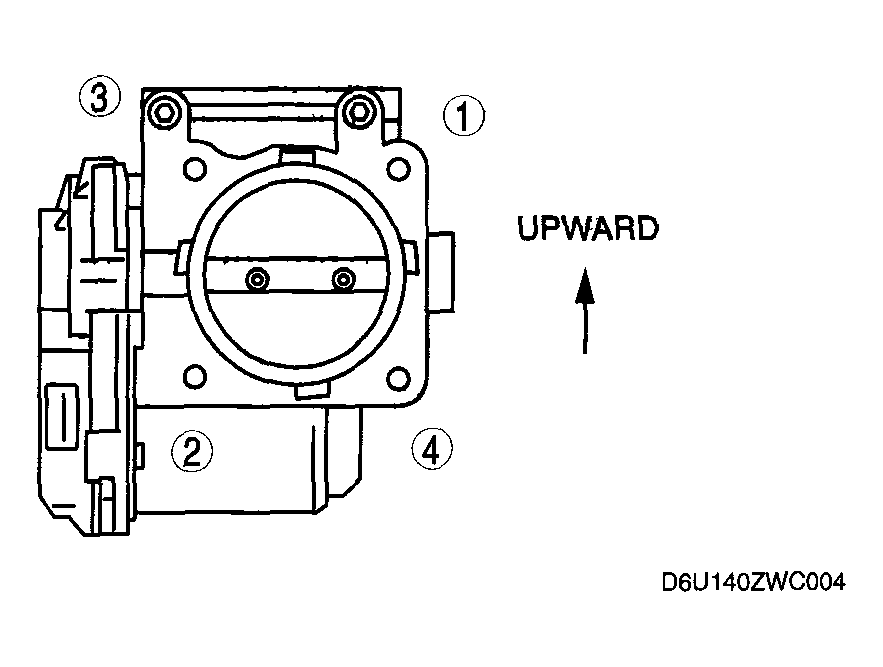

    Fig 1: Throttle Body Bolt Tightening Sequence
    G04324739Courtesy of MAZDA MOTORS CORP.
