Steering Lock component Installation Note

  1. Install the steering lock component to the steering shaft.
  2. Verify that the lock operates correctly.
  3. Install new steering lock mounting bolts.
  4. Tighten the bolts until the heads break off.

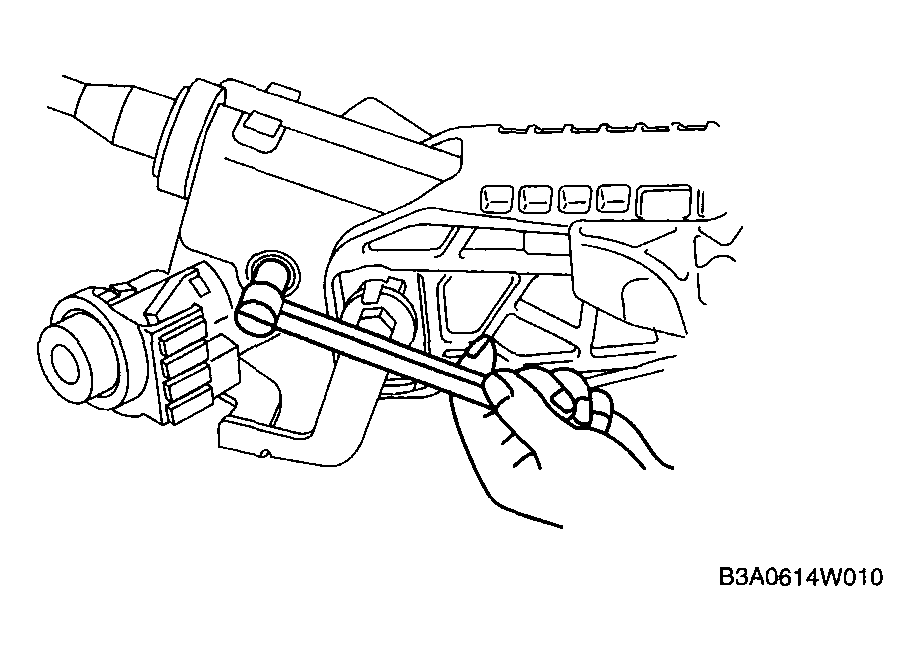

    Fig 1: Tightening Steering Lock Mounting Bolts
    G04316613Courtesy of MAZDA MOTORS CORP.
