Auto Wiper System Connector End View

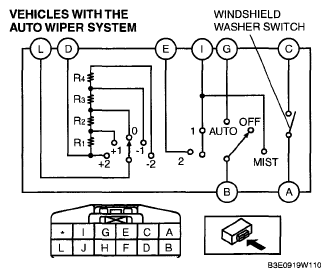

Fig 1: Auto Wiper System Connector End View

G04957087

Courtesy of MAZDA MOTORS CORP.
