Manual Transaxle: Differential: Assembly

CAUTION:

• Be careful not to crush the bearing while pressing it onto the differential case.

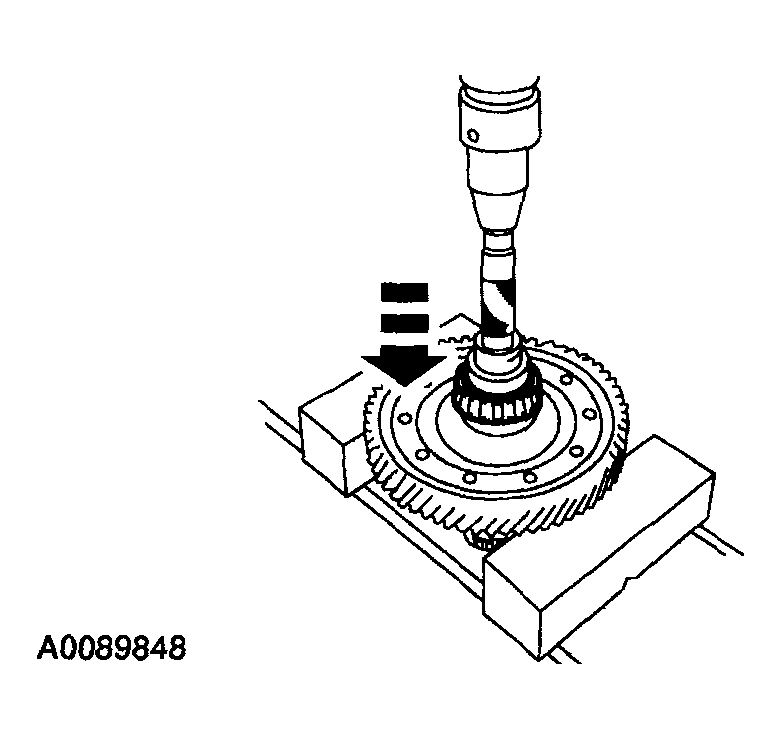

Fig 1: Installing Differential Side Bearing

Courtesy of MAZDA MOTORS CORP.

1. Install the differential side bearing.
2. Install the VSS drive gear and the spacer.
   CAUTION:

   • Be careful not to crush the bearing while pressing it onto the differential case.

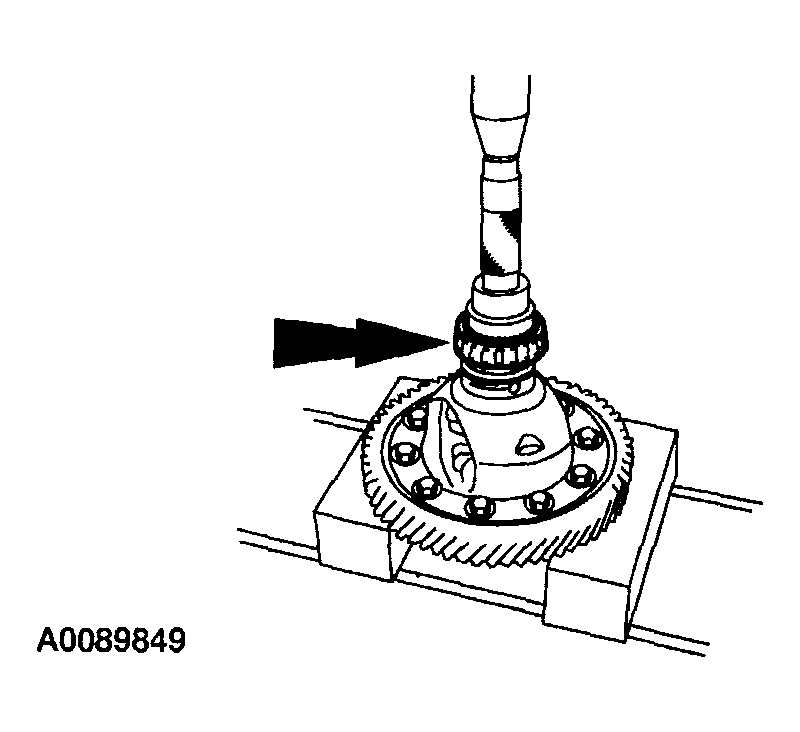

   Fig 2: Installing Differential Side Bearing

   Courtesy of MAZDA MOTORS CORP.
3. Install the differential side bearing.

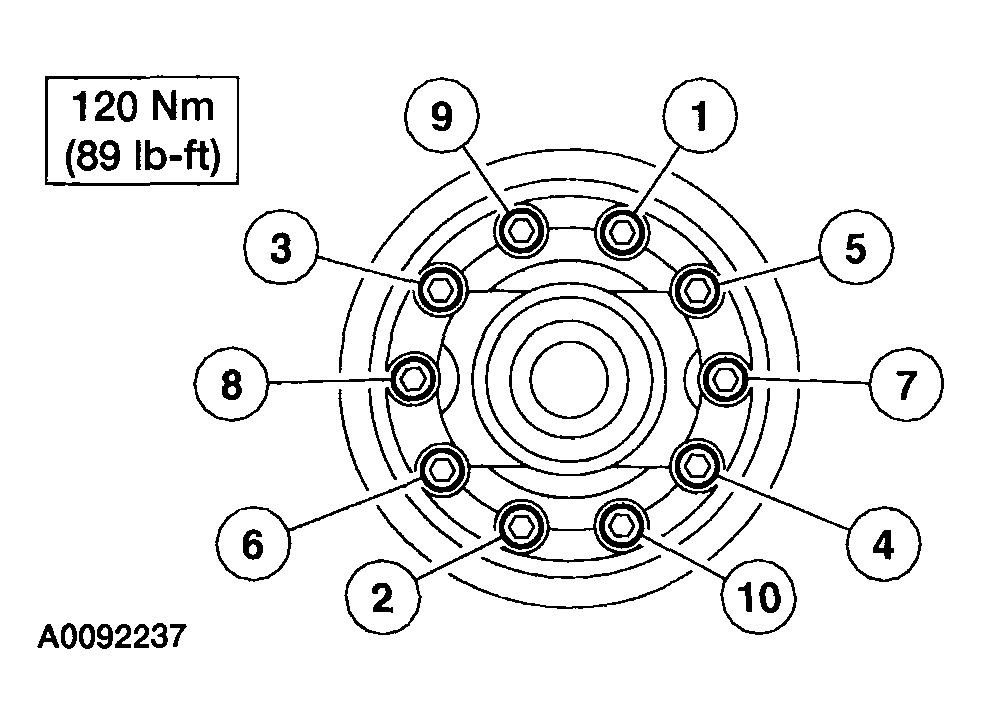

   Fig 3: Tightening Bolts In Sequence With Torque Specification

   Courtesy of MAZDA MOTORS CORP.
4. Install and tighten the bolts in the sequence indicated.
