Headlights
>>
Lighting System
>>
Light Switch Inspection
>>
Headlight switch
Headlight switch

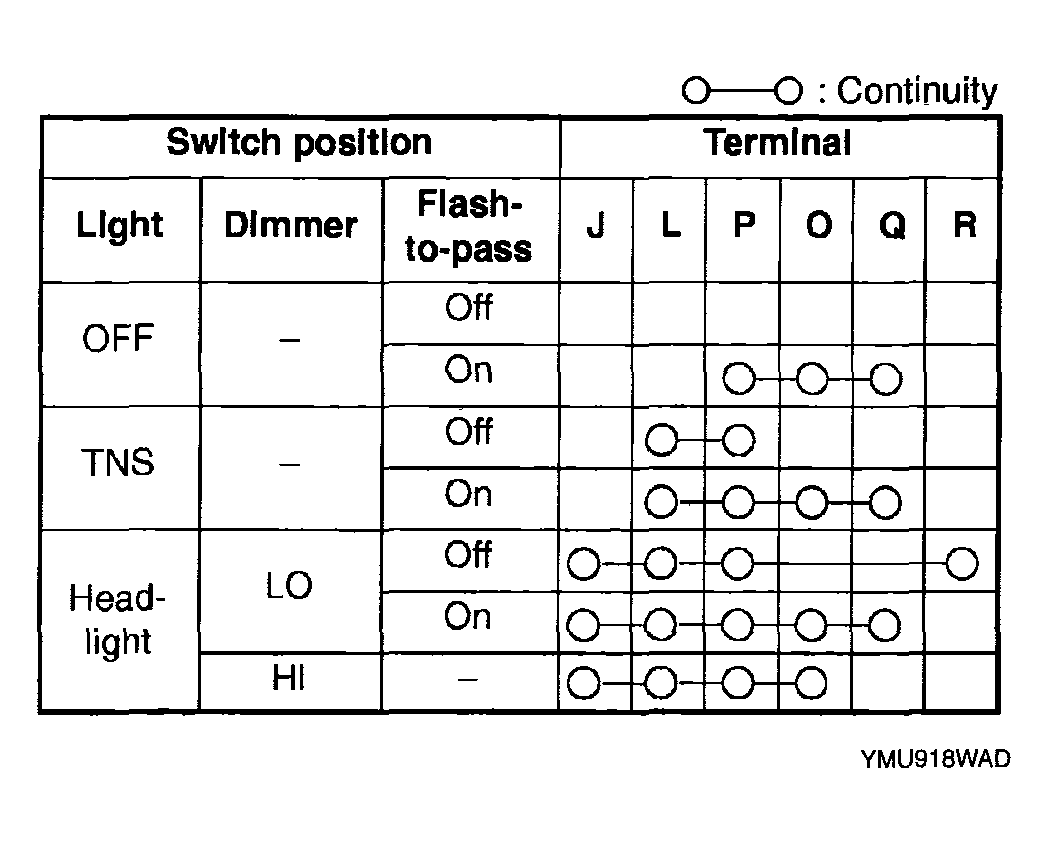

Fig 1: Headlight Switch Continuity Table
Courtesy of MAZDA MOTORS CORP.
Fig 2: Headlight Switch Connector Terminals
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
