Cargo Compartment Light Switch Inspection

  1. Remove the liftgate lower trim. (See LIFTGATE LOWER TRIM REMOVAL/INSTALLATION .)
  2. Disconnect the cargo compartment light switch connector.
  3. Inspect for continuity between the cargo compartment light switch terminals using an ohmmeter.
    • If not as specified, replace the liftgate lock.

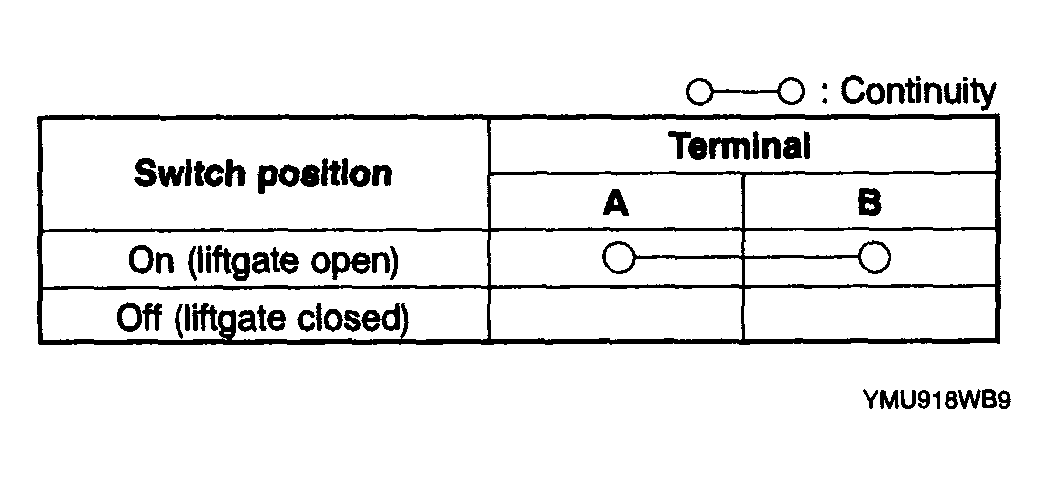

      Fig 1: Cargo Compartment Light Switch Continuity Table
      G04329742Courtesy of MAZDA MOTORS CORP.
      Fig 2: Cargo Compartment Light Switch Connector Terminals
      G04329743Courtesy of MAZDA MOTORS CORP.
