Blower Unit Description

WARNING: This page is about a different car, the 2002 Mazda 626. However, it is still accessible from the selected car via links, so may be relevant.

The blower unit blows either fresh air or recirculated air into the passenger compartment.

Air intake door operation

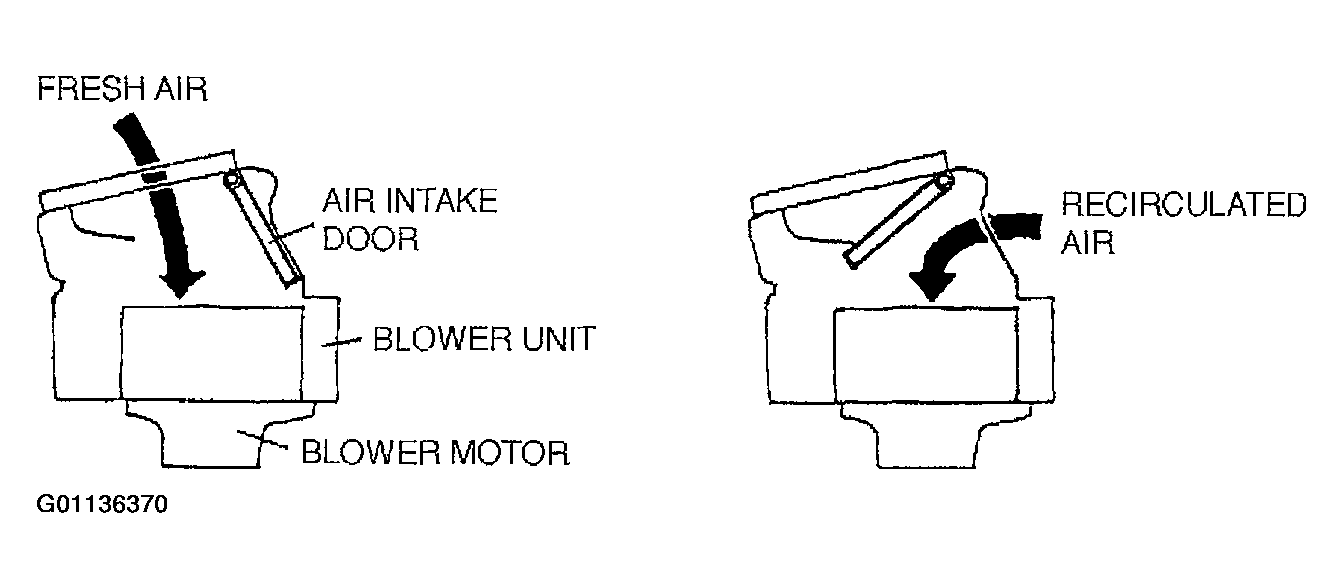

Fig 1: Identifying Blower Motor Fresh Air & Recirculated Air Intakes

Courtesy of MAZDA MOTORS CORP.
