Snap Ring Disassembly Note

  1. Carefully remove the snap ring without damaging the pinion shaft component.

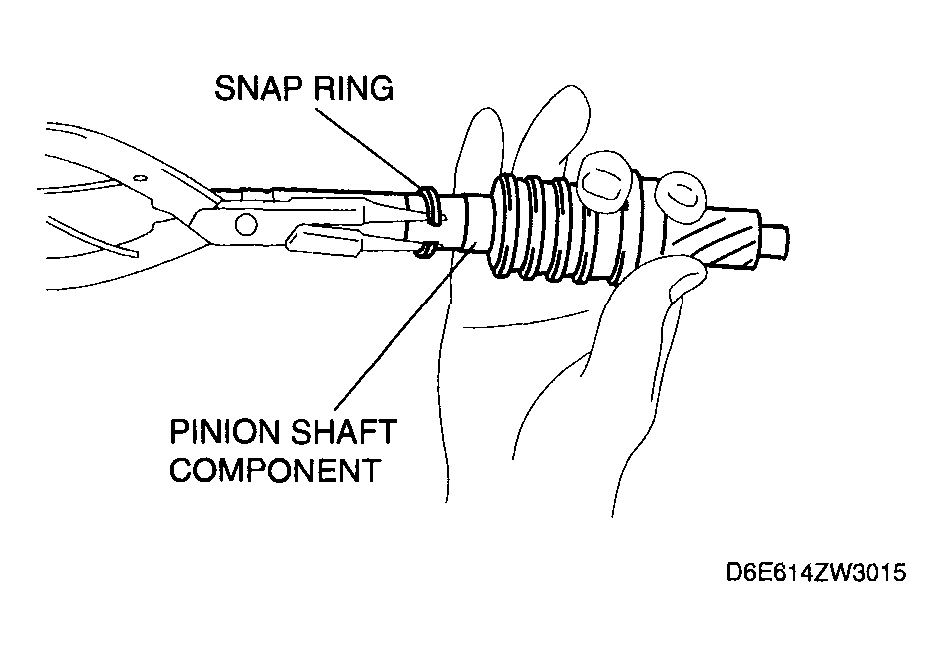

    Fig 1: Removing Snap Ring
    G04326546Courtesy of MAZDA MOTORS CORP.
