Disconnecting connectors
Disconnecting connectors

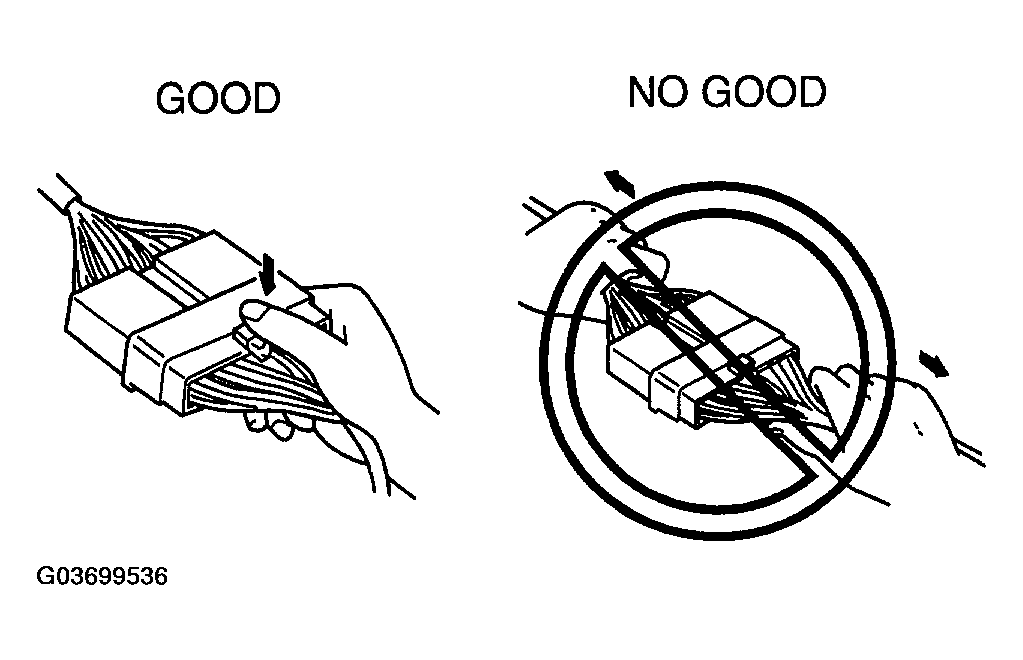

When disconnecting connector, grasp the connectors, not the wires.
Fig 1: Precaution For Disconnecting Connector
Courtesy of MAZDA MOTORS CORP.
Connectors can be disconnected by pressing or pulling the lock lever as shown.
Fig 2: Disconnecting Connectors
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
