Seat cushion frame disassembly note

  1. Remove the bands.

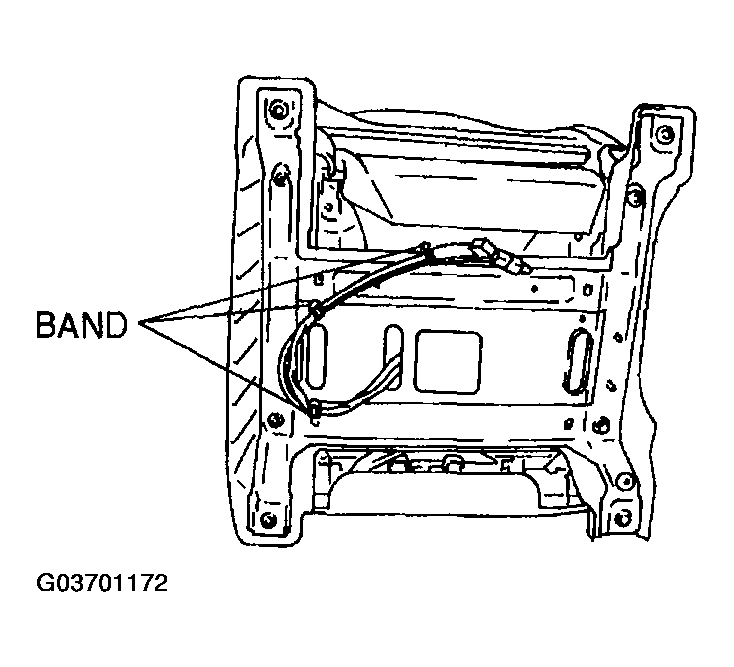

    Fig 1: Removing Bands
    G03701172Courtesy of MAZDA MOTORS CORP.
