Engine Mechanical
>>
Mechanical
>>
Service Tools (Engine Mechanical)
>>
Special Tools - Engine
Special Tools - Engine

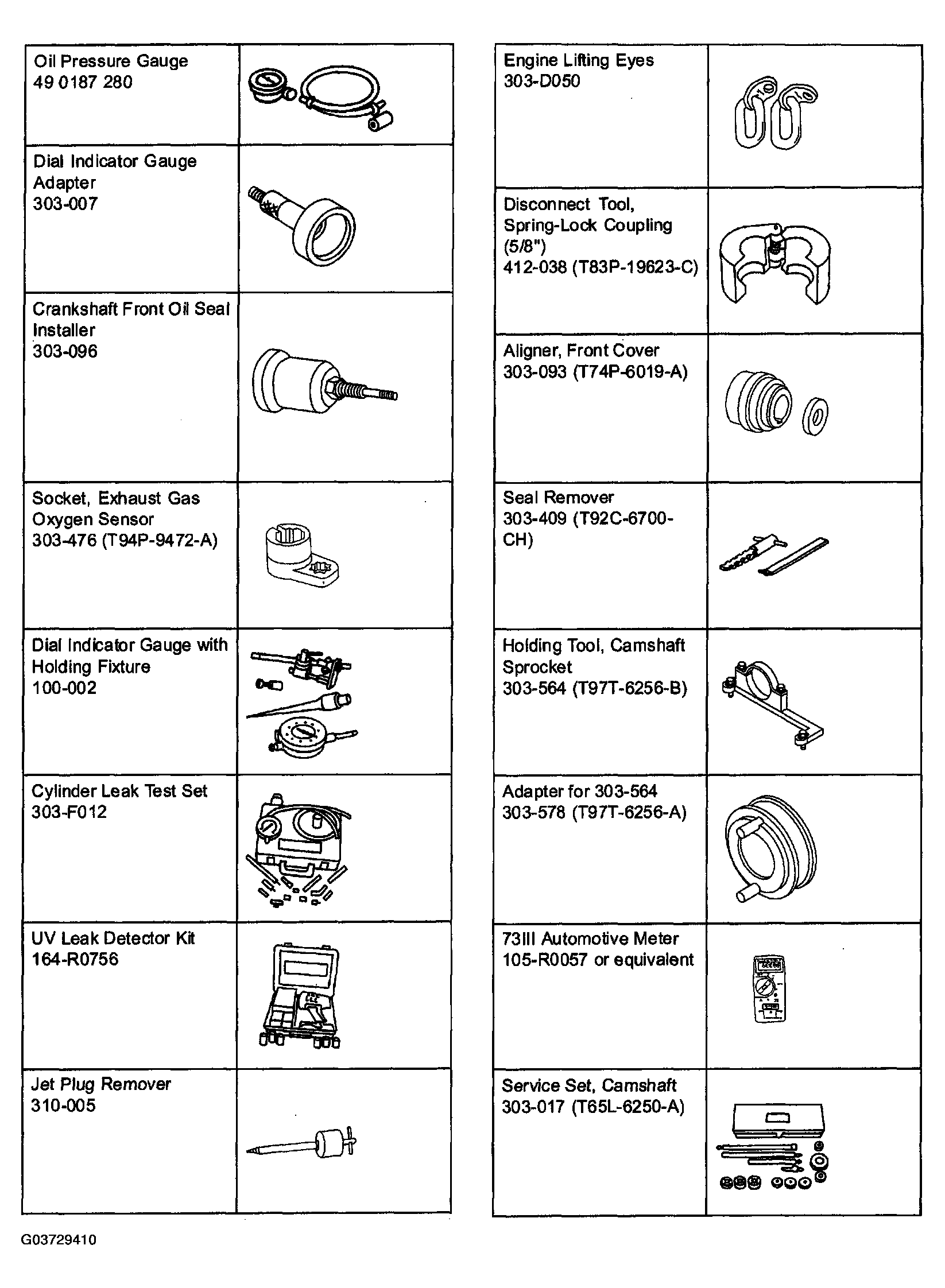

Fig 1: Identifying Special Tools - Engine (1 Of 4)
Courtesy of MAZDA MOTORS CORP.

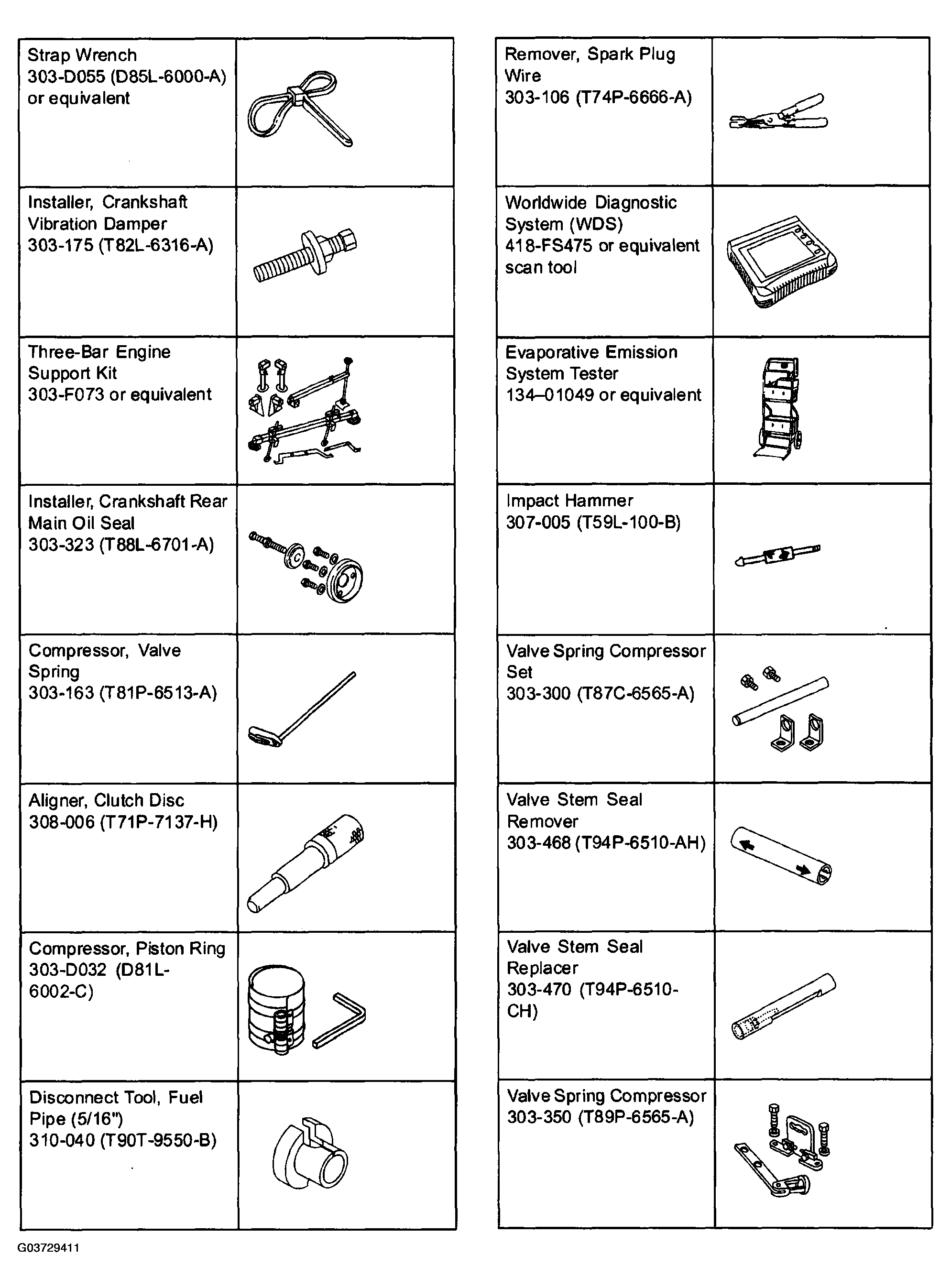

Fig 2: Identifying Special Tools - Engine (2 Of 4)
Courtesy of MAZDA MOTORS CORP.

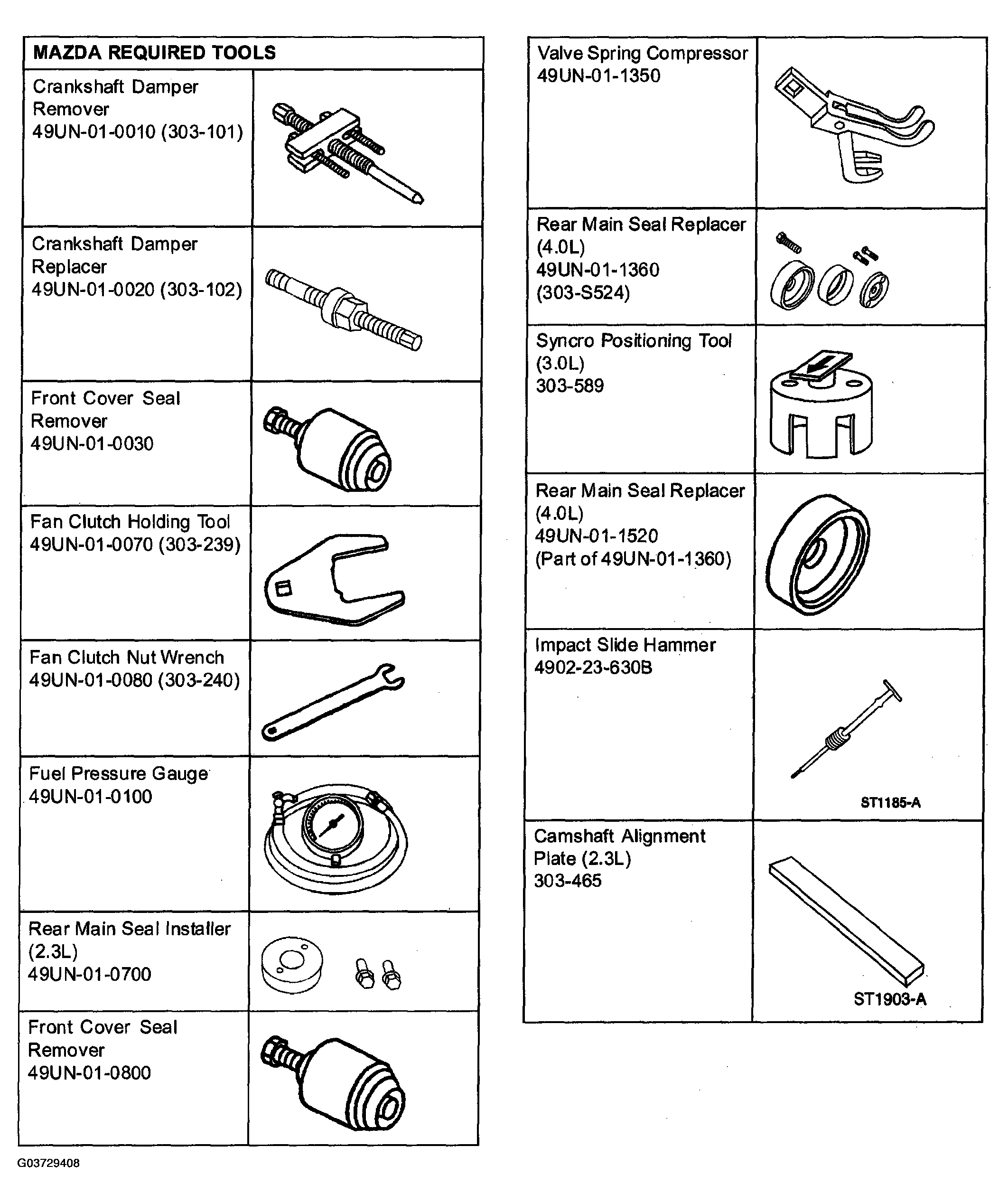

Fig 3: Identifying Special Tools - Engine (3 Of 4)
Courtesy of MAZDA MOTORS CORP.

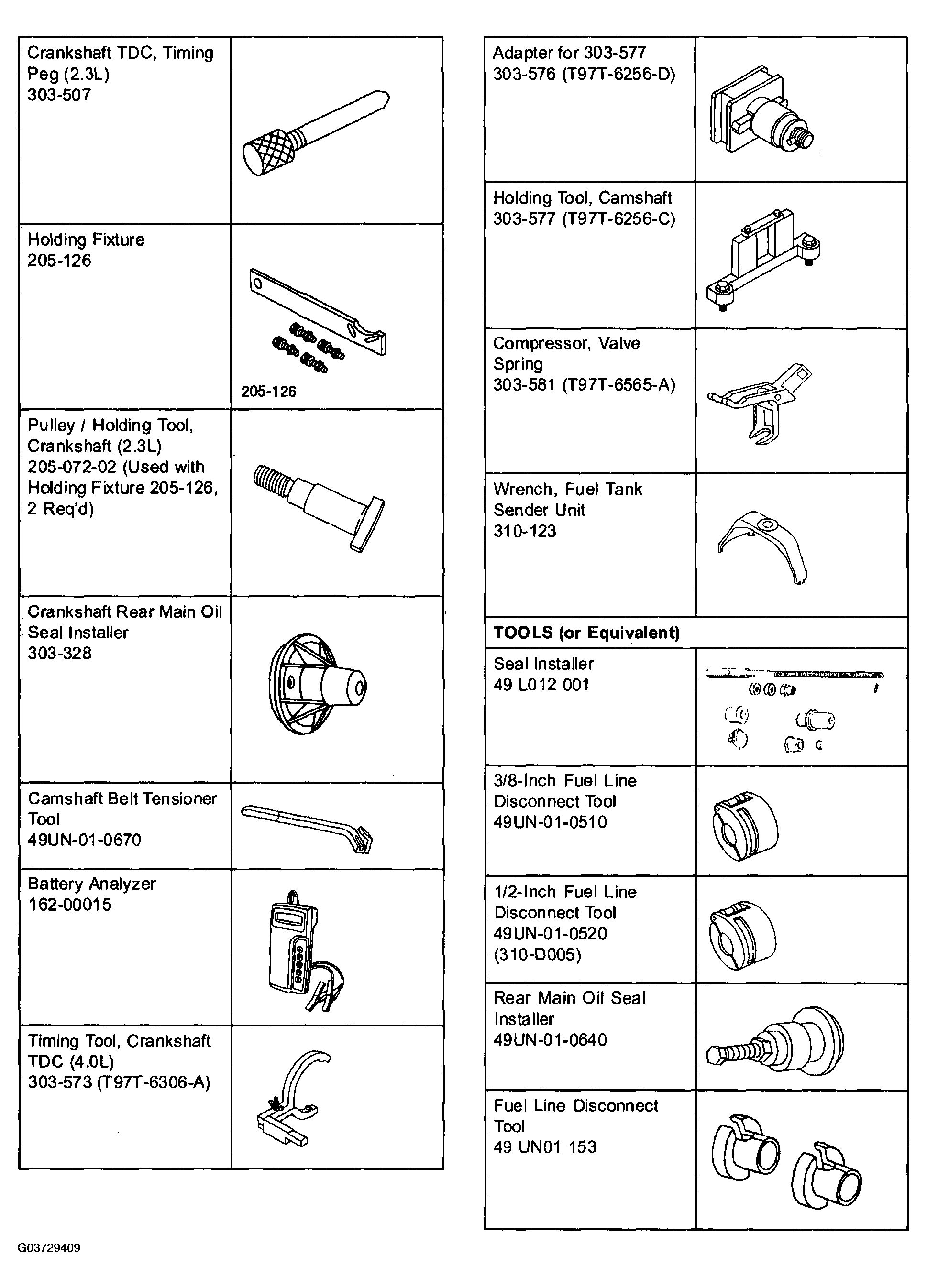

Fig 4: Identifying Special Tools - Engine (4 Of 4)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
