Front Carrier Component Assembly

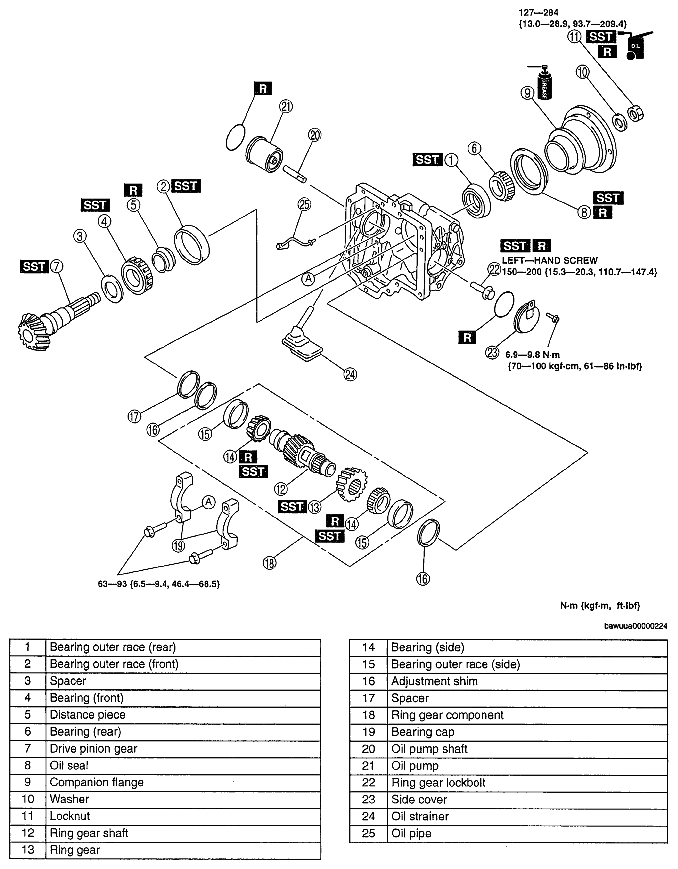

Fig 1: Exploded View Of Front Carrier Component Assembly With Torque Specifications

G04824186

Courtesy of MAZDA MOTORS CORP.
