Front Carrier Component Assembly Procedure

Using a press, assemble the opposite ring gear side bearing (side) to the ring gear shaft.
Substitution SST
- 49 G033 105(A)
  Outer diameter: 25 mm {0.99 in} or more
- 49 G033 105 (B)
  Outer diameter: 34-40 mm {1.34-1.57 in}

  Plate thickness: 1 mm {0.04 in} or more

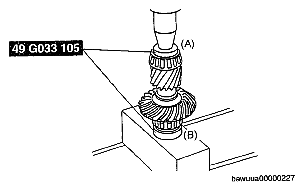

  Fig 1: Identifying SST (49 G033 105)
  Courtesy of MAZDA MOTORS CORP.
Using a press, assemble the ring gear to the ring gear shaft
Substitution SST
- 49 G033 105
  Outer diameter: 15-30 mm {0.60-1.18 in}

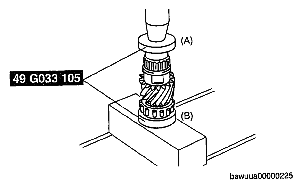

  Fig 2: Identifying SST (49 G033 105)
  Courtesy of MAZDA MOTORS CORP.
Using a press, assemble the ring gear side bearing (side).
Substitution SST
- 49 G033 105(A)
  Outer diameter: 15-30 mm {0.60-1.18 in}
- 49 G033 105 (B)
  Outer diameter: 34-40 mm {1.34-1.57 in}

  Plate thickness: 1 mm {0.04 in} or more
Temporarily assemble the bearing outer races (side).

Fig 3: Identifying SST (49 G033 105)
Courtesy of MAZDA MOTORS CORP.
Place the ring gear component on the surface plate as shown in the figure, and measure the height using a vernier caliper or height gauge. This is dimension A.

Fig 4: Identifying Dimension A
Courtesy of MAZDA MOTORS CORP.
Measure the width of the front carrier ring gear installation area with the spacer installed. This is dimension B.
The maximum and minimum total thickness C of the adjustment shims on both sides can be expressed by the following formula:
C = B - A - (0.01-0.03 mm {0.00039-0.00118 in})

Fig 5: Identifying Spacer With Dimension B
Courtesy of MAZDA MOTORS CORP.
If the total thickness of the installed adjustment shims is within the C range, use the shims as they are.

If the total thickness of the installed adjustment shims is not within the C range, select the appropriate number of adjustment shims from the table below and use them.

ADJUSTMENT SHIM

Identification mark	Thickness (mm {in})	Identification mark	Thickness (mm {in})
350	3.50 {0.1378}	410	4.10 {0.1614}
355	3.55 {0.1398}	415	4.15 {0.1634}
360	3.60 {0.1417}	420	4.20 {0.1654}
365	3.65 {0.1437}	425	4.25 {0.1673}
370	3.70 {0.1457}	430	4.30 {0.1693}
375	3.75 {0.1476}	435	4.35 {0.1713}
380	3.80 {0.1496}	440	4.40 {0.1732}
385	3.85 {0.1516}	445	4.45 {0.1752}
390	3.90 {0.1535}	450	4.50 {0.1772}
395	3.95 {0.1555}	455	4.55 {0.1791}
400	4.00 {0.1574}	460	4.60 {0.1811}
405	4.05 {0.1594}	-	-

NOTE:

When reusing adjustment shims, do not mix up the left and right shims.
Do not mix up the left and right side bearing races and spacers.

Install the front carrier to the SST .
Install the adjustment shim chosen for the front carrier ring gear side and spacer on opposite side.
Assemble the ring gear component to the front carrier.

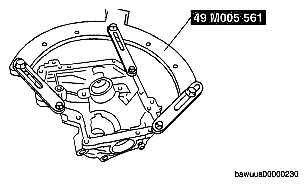

Fig 6: Identifying SST (49 M005 561)
Courtesy of MAZDA MOTORS CORP.
Using the plastic hammer, assemble the selected adjustment shim in between the spacer and bearing race as shown in the figure.

Fig 7: Assembling Adjustment Shim Using Plastic Hammer
Courtesy of MAZDA MOTORS CORP.
Align the alignment marks of the bearing caps, assemble the bearing caps, and tighten the bolts temporarily.
CAUTION:
- Locking compound is applied to a new ring gear lockbolt. Reuse the old ring gear lock bolt when inspecting the preload.
Install the ring gear lockbolt and inspect the ring gear bearing preload.

Fig 8: Identifying Alignment Marks Of Bearing Caps
Courtesy of MAZDA MOTORS CORP.

Standard ring gear bearing preload

0.6-2.1 N.m {6.2-21.4 kgf.cm, 5.4-18.5 in.lbf}
- If the rotational torque is not within the specification, select the suitable adjustment shim and reinstall so that the rotational torque is within the specification.
Follow the disassembling procedure in Step 11 to remove the ring gear component.
NOTE:
- Identify the left and right side of the adjustment shim for reinstallation.
Using the SSTs , assemble the bearing outer races.
Substitution SST
- 49 F027 005
  Outer diameter: 61-61.8 mm {2.41-2.43 in}

  Plate thickness: 1 mm {0.04 in} or more
- 49 F027 007
  Outer diameter: 70-71.8 mm {2.76-2.82 in}

  Plate thickness: 1 mm {0.04 in} or more

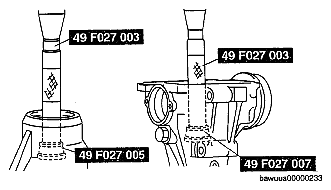

  Fig 9: Assembling Bearing Races Using SST
  Courtesy of MAZDA MOTORS CORP.

Using the SSTs , adjust the drive pinion height as follows:

Install the SSTs to the removed spacer and bearing.
Assemble the spacer, bearing and SSTs.
Using an O-ring, secure the SST .
Assemble the bearing, SSTs , washer, and nut.
Tighten the nut to the SST to where it can still be rotated by hand.

Fig 10: Identifying SST (49 8531 565, 49 H025 003A)
Courtesy of MAZDA MOTORS CORP.
Place the SSTs on the plate surface and set the dial gauge to "0".

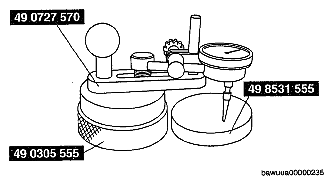

Fig 11: Identifying SST (49 0727 570, 49 8531 555, 49 0305 555)
Courtesy of MAZDA MOTORS CORP.

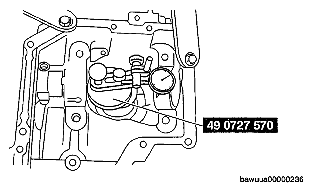

Position the SST (49 0727 570) on the driver pinion model.
Attach the dial gauge head to where the carrier bearing outer race (side) is installed and measure the lowest position. Also, measure the value of where the side bearing outer race (side) is installed on the opposite side.
Measure the average value between the values of both sides measured in Step 7. This value is the spacer thickness which determines the pinion height.

Fig 12: Identifying SST (49 0727 570)
Courtesy of MAZDA MOTORS CORP.

Pinion height error factor within allowance limit ± 0.032 mm {± 0.00126 in}

SPACER

Identification mark	Thickness (mm {in})	Identification mark	Thickness (mm {in})
08	3.08 {0.1213}	29	3.29 {0.1295}
09	3.095 {0.1219}	30	3.305 {0.1301}
11	3.11 {0.1224}	32	3.32 {0.1307}
12	3.125 {0.1230}	33	3.335 {0.1313}
14	3.14 {0.1236}	35	3.35 {0.1319}
15	3.155 {0.1242}	36	3.365 {0.1325}
17	3.17 {0.1248}	38	3.38 {0.1331}
18	3.185 {0.1254}	39	3.395 {0.1335}
20	3.20 {0.1260}	41	3.41 {0.1343}
21	3.215 {0.1266}	42	3.425 {0.1348}
23	3.23 {0.1272}	44	3.44 {0.1354}
24	3.245 {0.1278}	45	3.455 {0.1360}
26	3.26 {0.1283}	47	3.47 {0.1366}
27	3.275 {0.1289}	-	-

Assemble the spacer selected for pinion height adjustment with the rounded off side facing the gears.
Using the SST , assemble the bearing (front) to the drive pinion gear.
Substitution SST
- 49 F401 331,49 F401 337A
  Outer diameter: 37.2-43.3 mm {1.47-1.70 in}

  Inner diameter: 35.2 mm {1.39 in} or more

  Plate thickness: 1 mm {0.04 in} or more

  Inner diameter depth: 140 mm {5.51 in} or more

  Fig 13: Assembling Bearing To Drive Pinion Using SST (49 F401 331 And 49 F401 337A)
  Courtesy of MAZDA MOTORS CORP.
Assemble a new distance piece to the drive pinion gear.
Assemble the drive pinion gear to the front carrier.
Install the bearing (rear), companion flange, washer, and new locknut to the drive pinion and temporarily tighten.
Rotate the companion flange by hand and seat the bearing.
Using the SST , tighten the locknut from the lower limit of the specified tightening torque and set to the preload value. Note the tightening torque when the specified preload value is obtained.

Fig 14: Tightening Locknut Using SST (49 S120 710)
Courtesy of MAZDA MOTORS CORP.

Tightening torque

127-284 N.m {13.0-28.9 kgf.m, 93.7-209.4 ft.lbf}

Drive pinion preload value

0.88-1.37 N.m {9.0-14.0 kgf.cm, 7.9-12.1 in.lbf}
Remove the locknut, washer, and companion flange.
Apply oil to the lip area of a new oil seal.
Using the SST , assemble the oil seal.
Substitution SST
- 49 U027 003
  Outer diameter: 66-70.8 mm {2.60-2.78 in}

  Inner diameter: 53.7 mm {2.12 in} or more

  Plate thickness: 1 mm {0.04 in} or more

  Inner diameter depth: 50 mm {1.97 in} or more

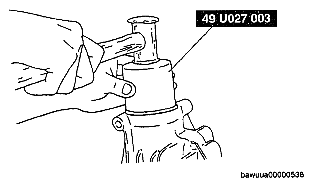

  Fig 15: Assembling Oil Seal Using SST (49 U027 003)
  Courtesy of MAZDA MOTORS CORP.
Apply the grease to the bearing contact surface of the companion flange.
Assemble the companion flange.
Using the SST , tighten the new locknut to the tightening torque noted when the preload was adjusted.
Reverify the preload.
Drive pinion preload value

0.88-1.37 N.m {9.0-14.0 kgf.cm, 7.9-12.1 in.lbf}

Fig 16: Tightening Locknut Using SST (49 S120 710)
Courtesy of MAZDA MOTORS CORP.
Assemble the ring gear component following the procedure in Step 11 to 14.
Set the dial gauge with the measuring probe attached perpendicularly to the end of one of the ring gear teeth.
Secure the drive pinion and measure the backlash from when the ring gear is moved.
Standard drive pinion backlash

0.09-0.11 mm {0.0035-0.0043 in}
CAUTION:
- Perform the backlash measurement on the ring gear circumference at four points.
If the backlash is not within the specified range above, adjust it by sliding the ring gear in the shaft direction.

Fig 17: Measuring Backlash
Courtesy of MAZDA MOTORS CORP.
NOTE:
- Slide the ring gear in the shaft direction by replacing the adjustment shim. If the right side adjustment shim is replaced with one that is 0.05 mm {0.002 in} thicker, the left side shim must be replaced with one that is 0.05 mm {0.002 in} thinner.
Tighten the bearing cap bolts.
Tightening torque

63-93 N.m {6.5-9.4 kgf.m, 46.4-68.5 ft.lbf}
Perform the drive pinion and ring gear tooth contact inspection.
1. Apply tooth marking compound evenly to both surfaces of the ring gear.
2. Rotate the ring gear back and forth several times.
3. Inspect for gear tooth contact at four points on the ring gear circumference and verify that the gear tooth contact indicated by the tooth marking compound is as indicated in Fig 18.
  - If the tooth contact points are normal, wipe off the marking compound.
  - If the tooth contact points are not normal, adjust the pinion height, then adjust the backlash.

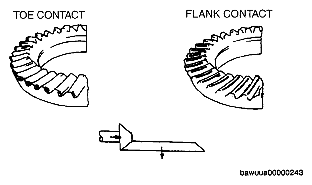

    Fig 18: Identifying Ring Gear Tooth Contact
    Courtesy of MAZDA MOTORS CORP.
4. If toe and flank contact is indicated as shown in Fig 19, replace the drive pinion spacer with a thinner one to maintain the drive pinion further away.

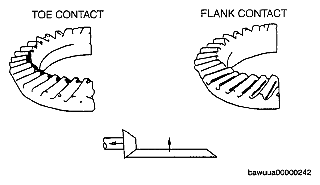

  Fig 19: Identifying Toe And Flank Contact
  Courtesy of MAZDA MOTORS CORP.
5. If heal and face contact is indicated as shown in Fig 20, replace the drive pinion spacer with a thicker one to bring the drive pinion closer.
Using a suitable wrench, secure the ring gear shaft and tighten the new ring gear lockbolt to the specified tightening torque.
CAUTION:
- Before installing the new ring gear lockbolt, remove the old thread-locking compound remaining on the thread of the ring gear shaft.
Tightening torque

150-200 N.m {15.3-20.3 kgf.m, 110.7 - 147.4 ft.lbf}
Align the cast hexagon of the oil pump shaft and assemble the oil pump and oil pump shaft.

Fig 21: Tightening Ring Gear Lockbolt
Courtesy of MAZDA MOTORS CORP.
Align the oil holes of the oil pump and front carrier.
Assemble the oil strainer.
Assemble the oil pipe.
Apply oil to a new O-ring and assemble the side cover.
Assemble the side cover to the front carrier.
Tightening torque

6.9-9.8 N.m {70-100 kgf.cm, 61-86 in.lbf}

Fig 22: Identifying Oil Hole
Courtesy of MAZDA MOTORS CORP.
Remove the front carrier component from the SST .
