Main Control Cover & Gasket: Installation

Position the main control cover gasket on the case.

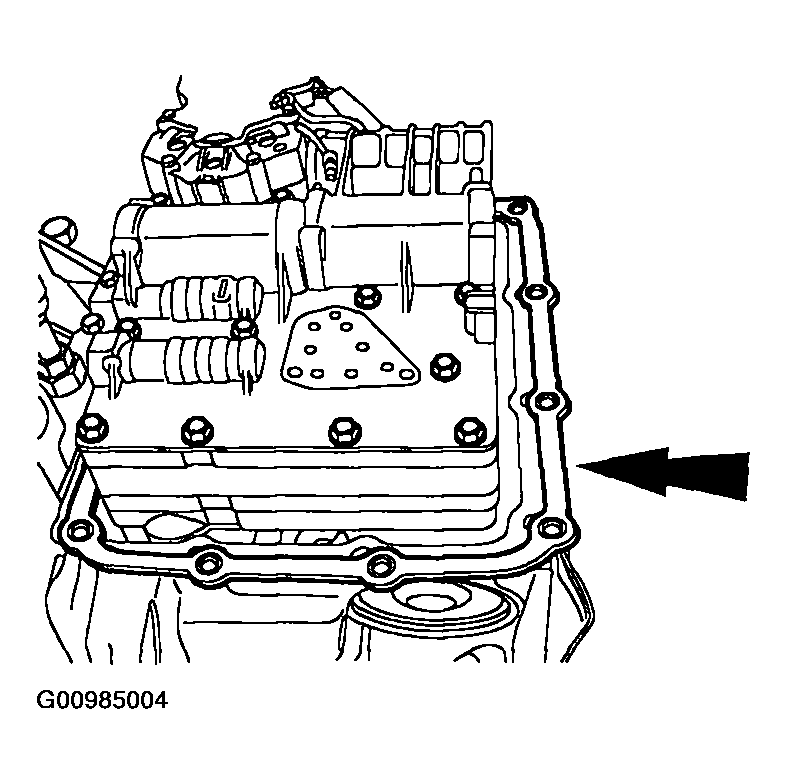

Fig 1: Positioning Main Control Cover Gasket On Case
Courtesy of MAZDA MOTORS CORP.

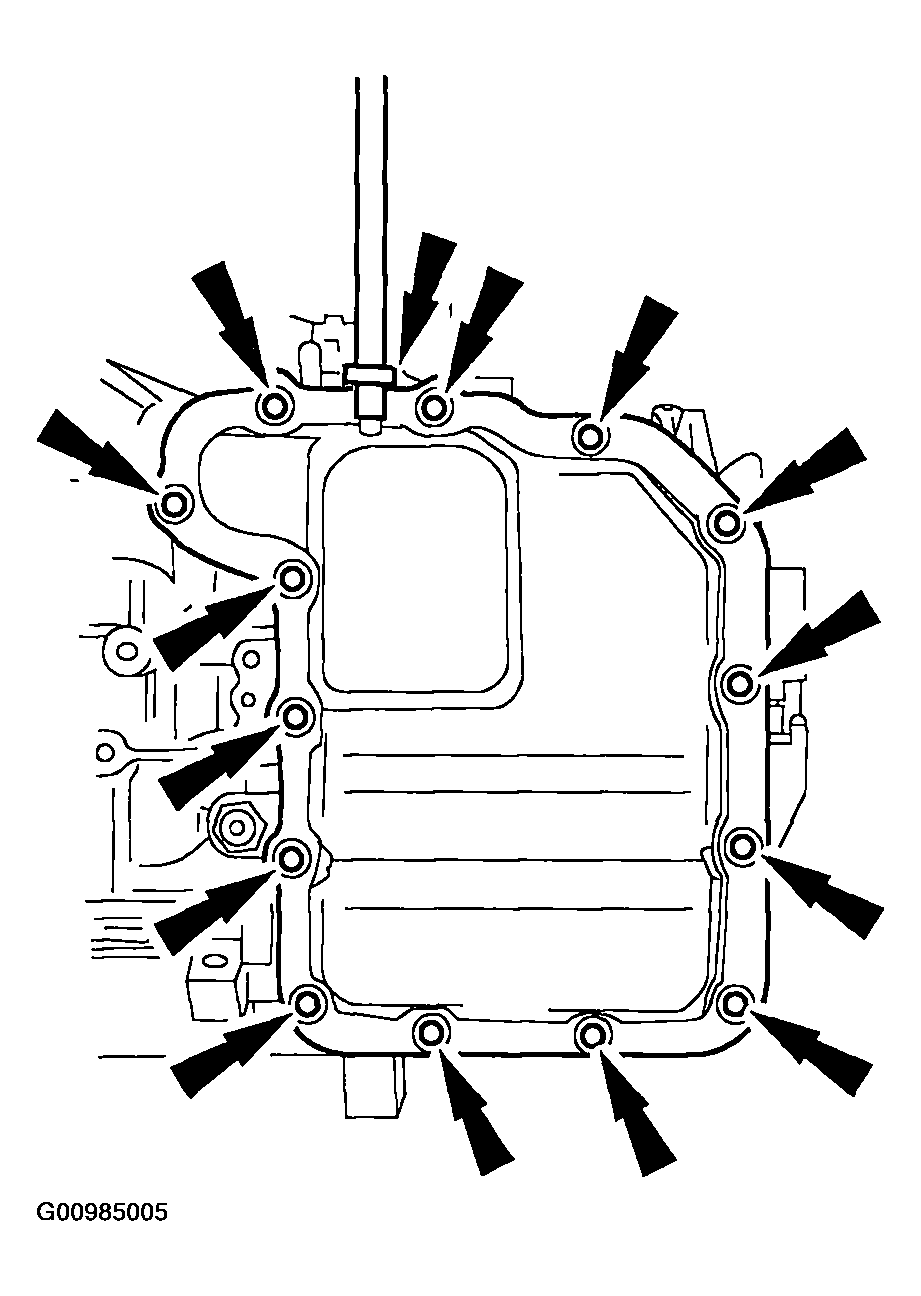

Position the main control cover on the case and loosely install the bolts.

Fig 2: Positioning Main Control Cover On Case & Loosely Install Bolts
Courtesy of MAZDA MOTORS CORP.
Tighten the bolts in sequence as indicated.

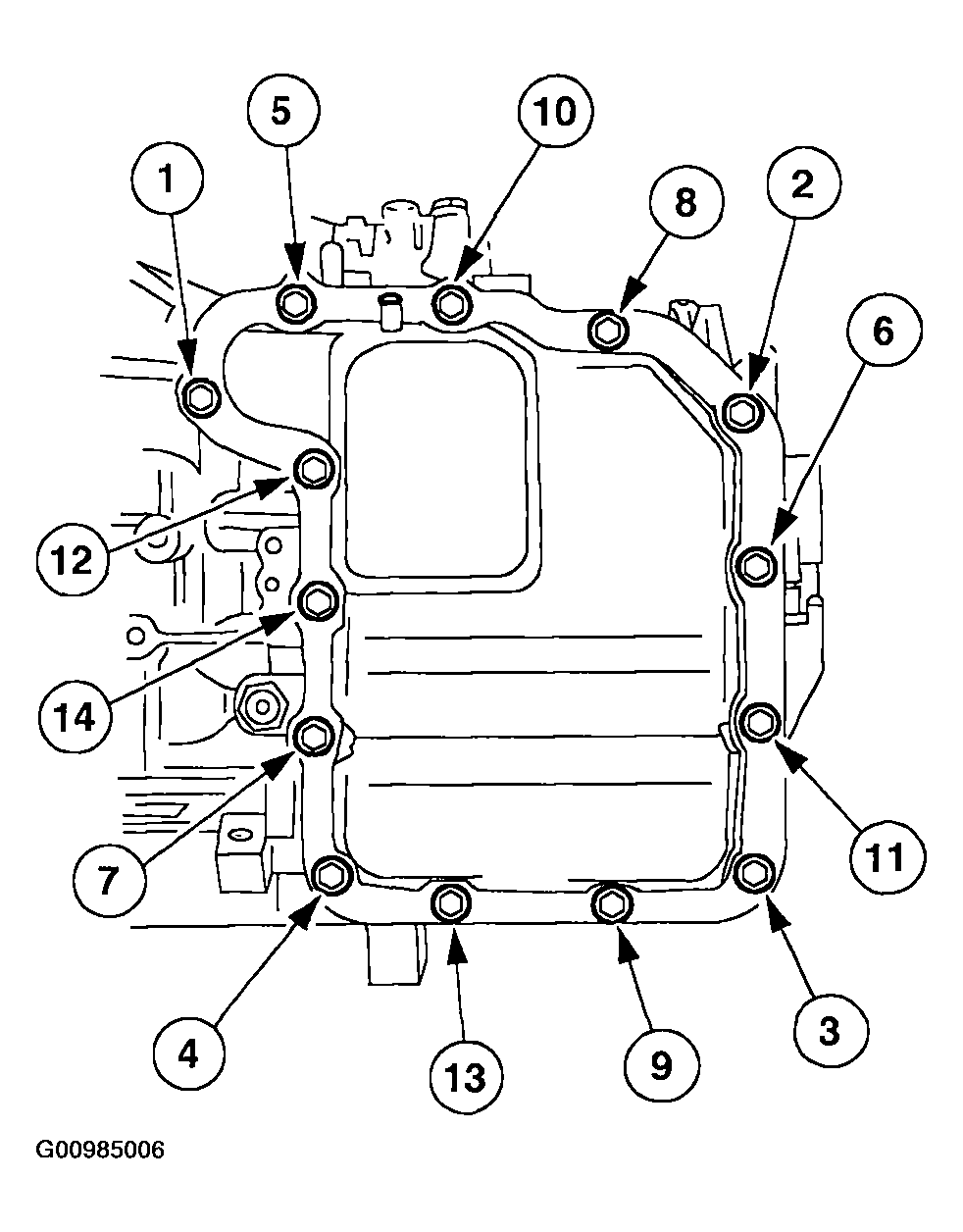

Fig 3: Identifying Bolt Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
Install the LH splash shield.

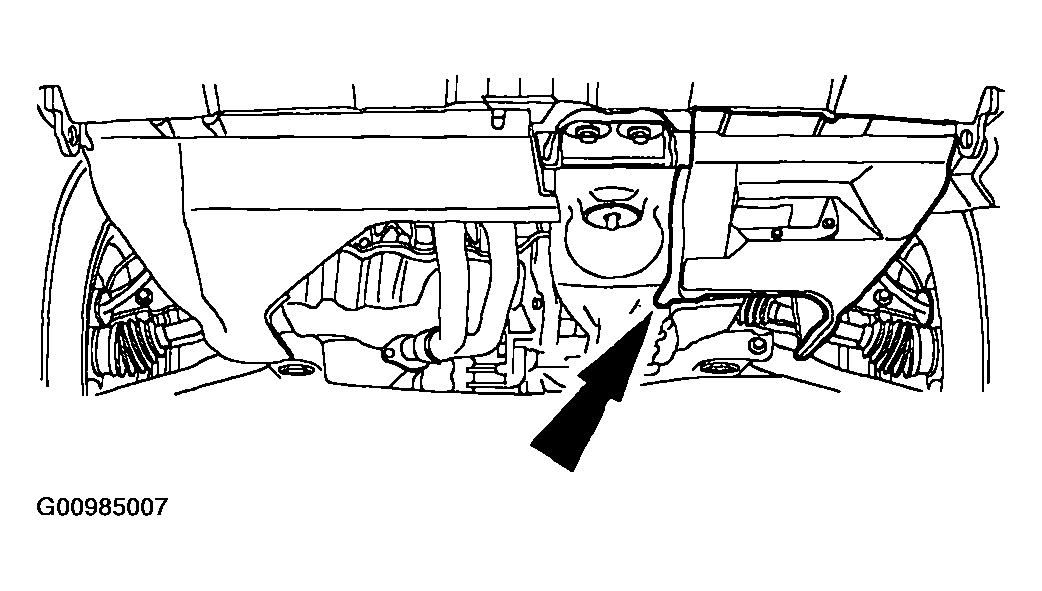

Fig 4: Identifying LH Splash Shield
Courtesy of MAZDA MOTORS CORP.
Install the LH front wheel.
Lower the vehicle.
Install the vent tube hose.

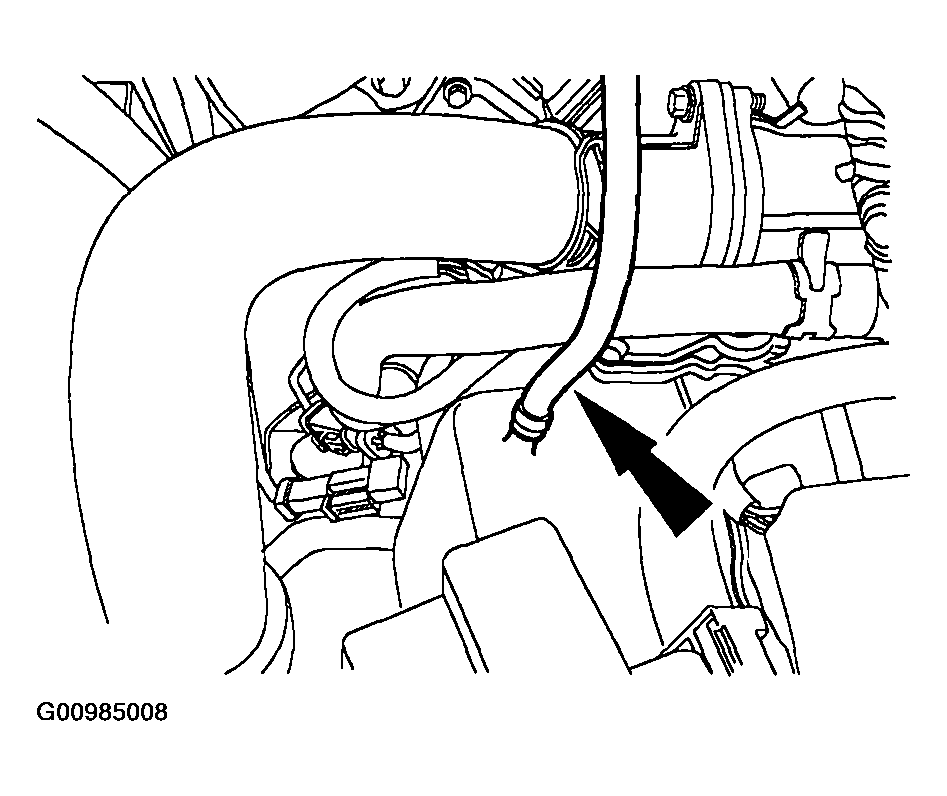

Fig 5: Installing Vent Tube Hose
Courtesy of MAZDA MOTORS CORP.
Install the intake tube and the air cleaner cover.

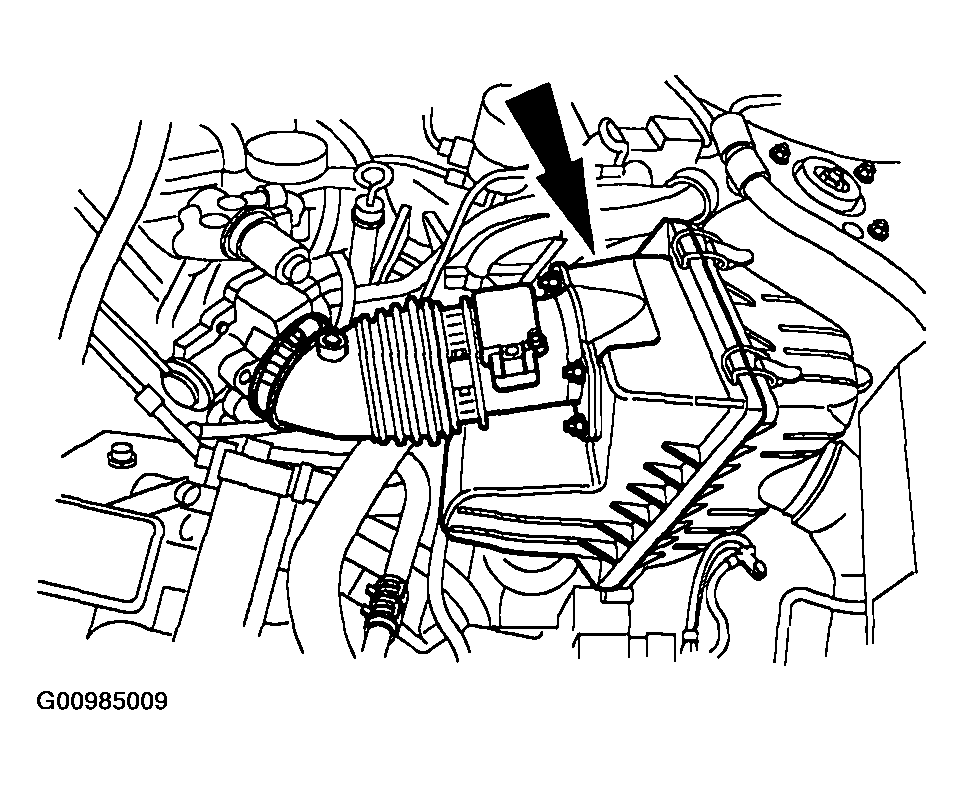

Fig 6: Installing Intake Tube & Air Cleaner Cover
Courtesy of MAZDA MOTORS CORP.
Install the breather tube and connect the mass air flow (MAF) sensor electrical connector.

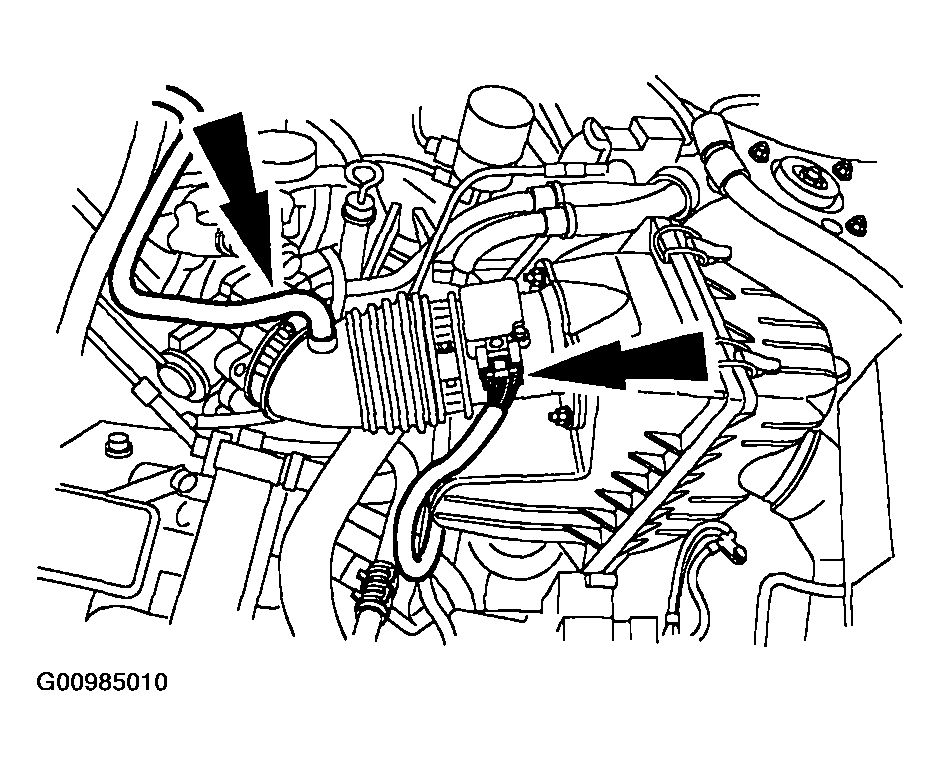

Fig 7: Installing Breather Tube & Connecting Mass Air Flow (MAF) Sensor Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Install the battery tray bracket.

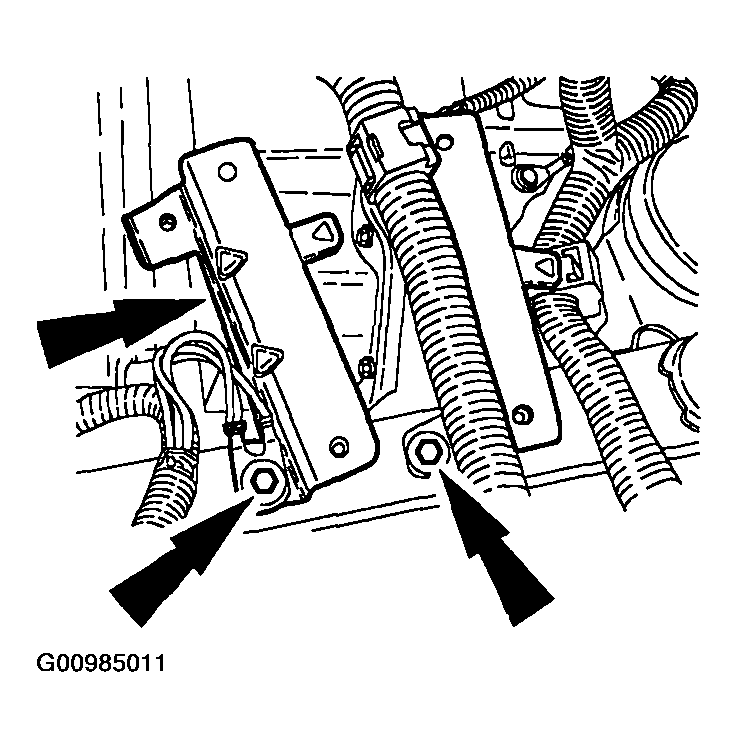

Fig 8: Installing Battery Tray Bracket
Courtesy of MAZDA MOTORS CORP.
Connect the wiring harness to the battery tray bracket.

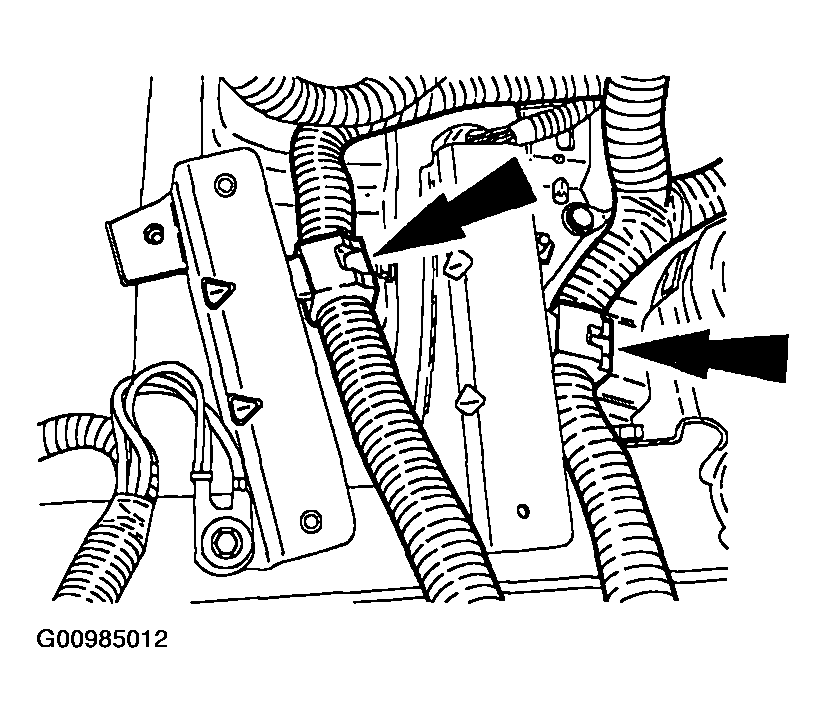

Fig 9: Connecting Wiring Harness To Battery Tray Bracket
Courtesy of MAZDA MOTORS CORP.
Install the battery tray. .
Connect the battery cables.
Check the transaxle fluid, add fluid as necessary using MERCON(R) Automatic Transaxle Fluid (ATF).
Start the engine and move the transaxle range selector lever through all gear positions. Refill as necessary.
