Windshield Wiper Switch Connector End View

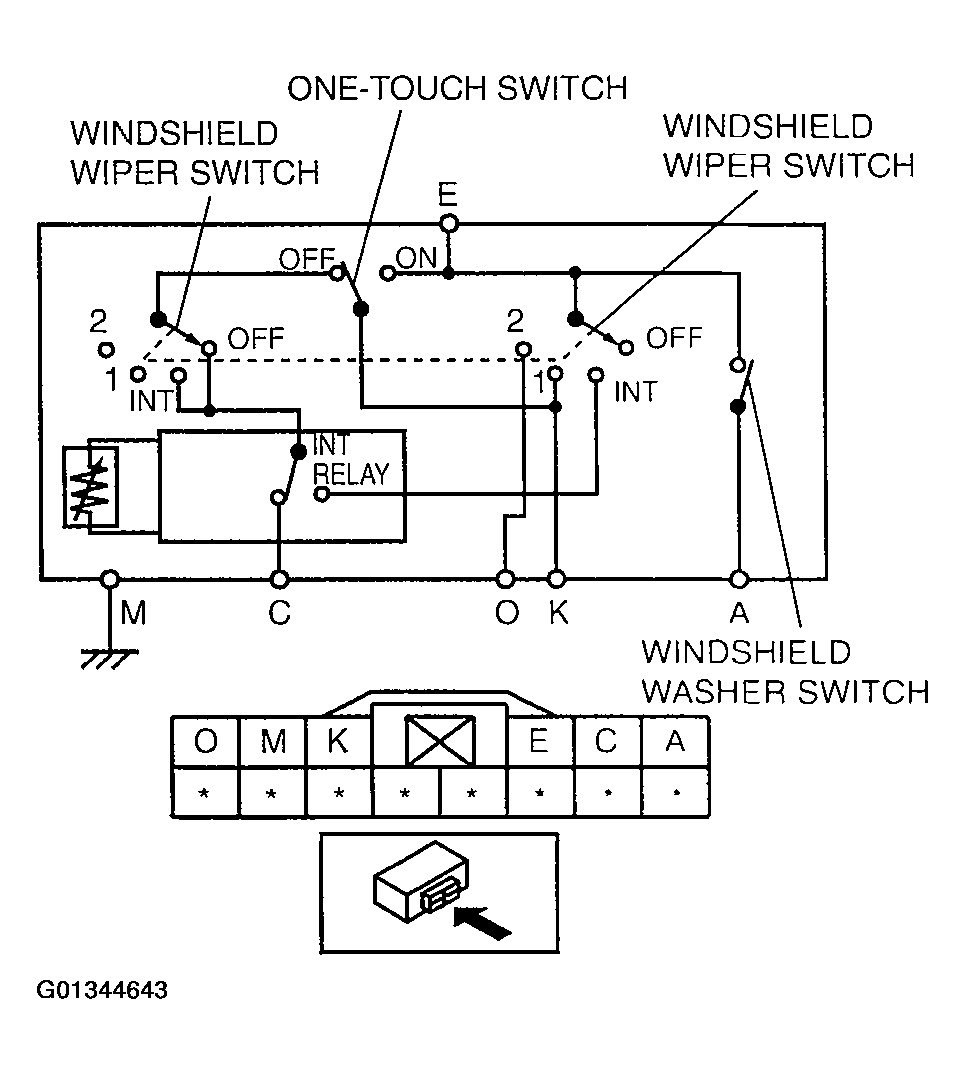

Fig 1: Windshield Wiper Switch Connector End View

G01344643

Courtesy of MAZDA MOTORS CORP.
