Oil Pump Removal/Installation: Notes

  1. Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION .)
  2. Remove the timing belt pulley.
  3. Remove the oil pan. (See OIL PAN REMOVAL/INSTALLATION [BP] .) (See OIL PAN REMOVAL/INSTALLATION [BP WITH TC] .)
  4. Remove the A/C compressor with the pipe still connected.
  5. Remove the A/C compressor bracket.
  6. Remove the generator. (See GENERATOR .)
  7. Remove in the order indicated in the table.

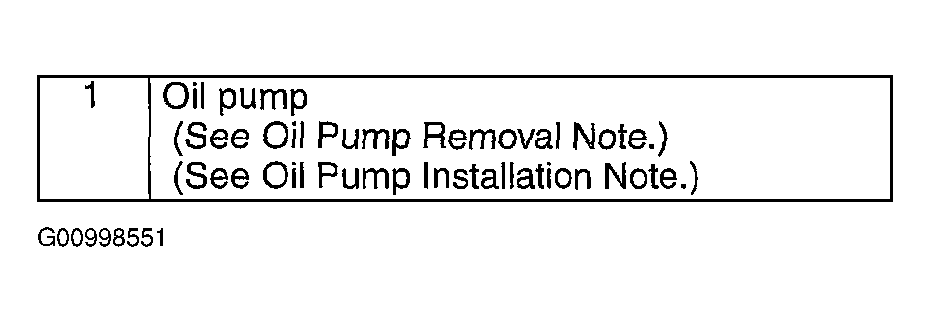

    Fig 1: Removing Order Of Oil Pump Table
    G00997739Courtesy of MAZDA MOTORS CORP.

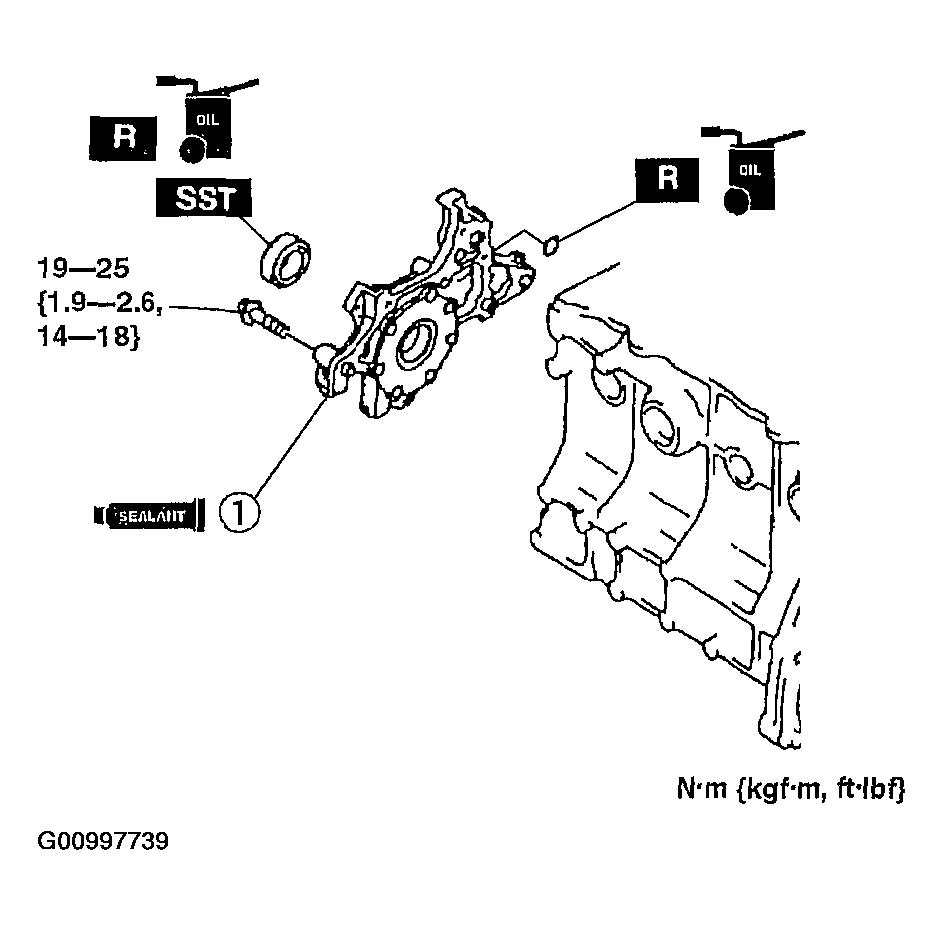

    Fig 2: Removing/Installing Oil Pump
    G00998551Courtesy of MAZDA MOTORS CORP.
  8. Install in the reverse order of removal.
