Oil Pump Disassembly/Assembly: Notes

  1. Remove the oil pump. (See OIL PUMP REMOVAL/INSTALLATION .)
  2. Disassemble in the order indicated in the table.

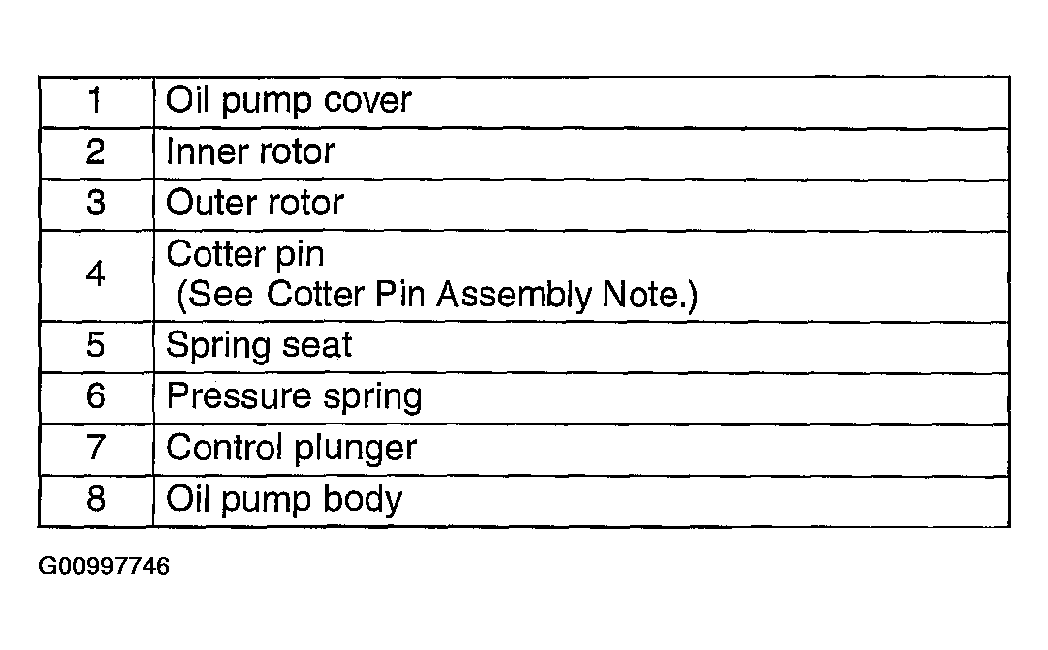

    Fig 1: Disassembling Order Of Oil Pump Table
    G00997746Courtesy of MAZDA MOTORS CORP.

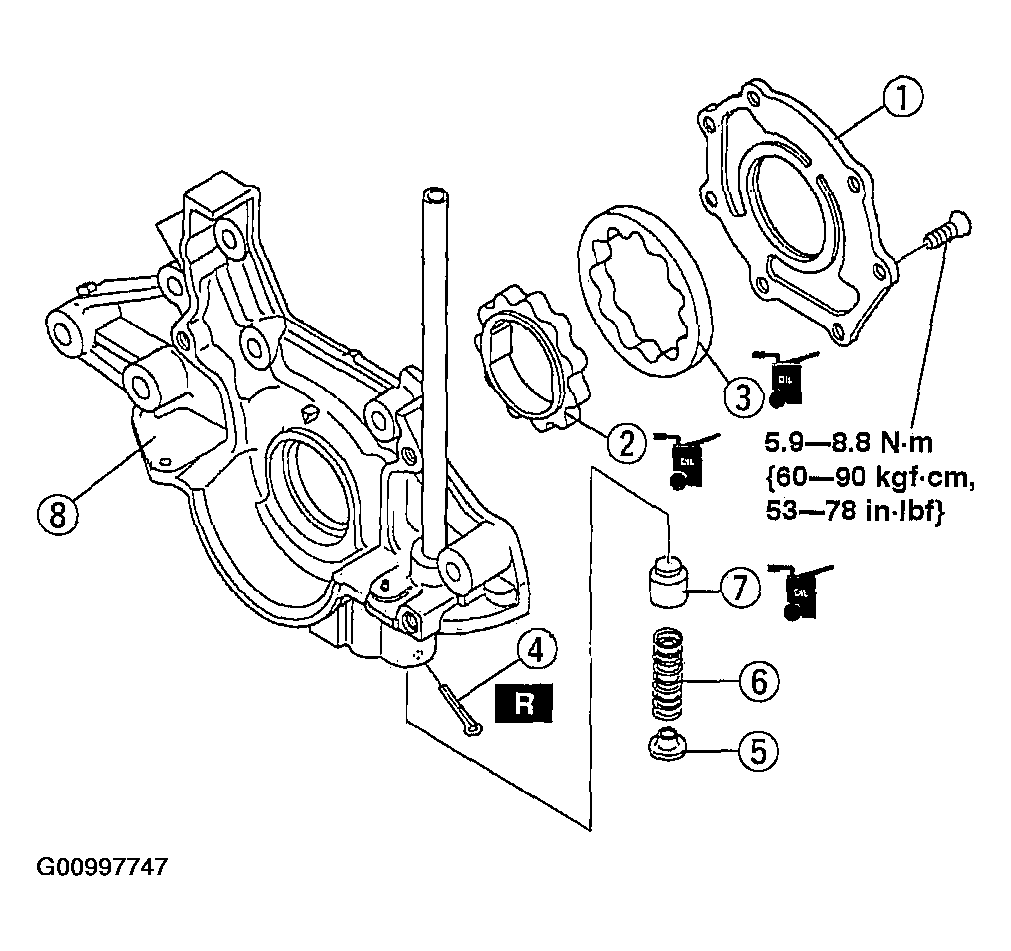

    Fig 2: Disassembling/Assembling Oil Pump
    G00997747Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
