Reclining Knuckle Cover Removal Note

  1. Remove the screws.
  2. Lift the reclining knuckle cover in the arrow direction to remove the hook.

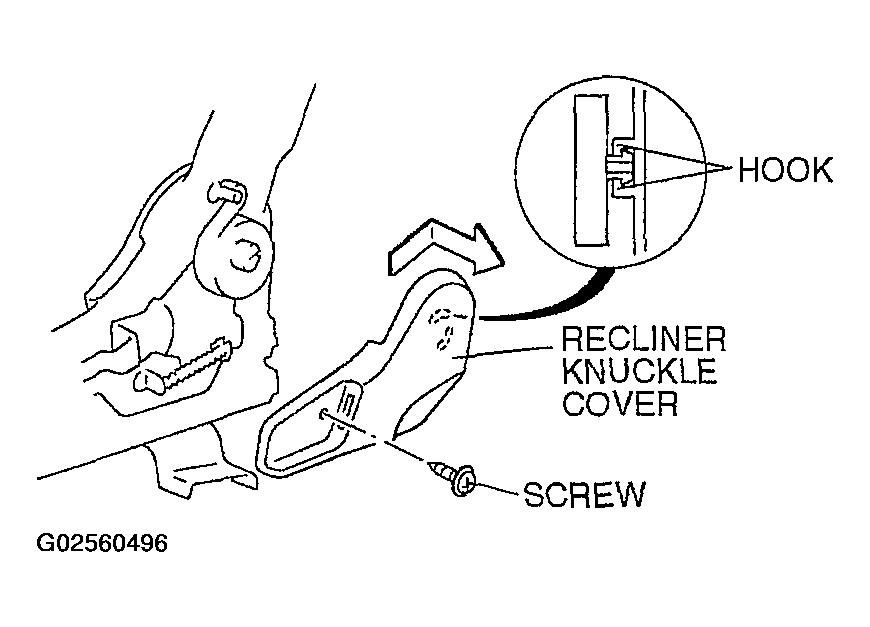

    Fig 1: Removing Reclining Knuckle Cover
    G02560496Courtesy of MAZDA MOTORS CORP.
