Home >> Mazda >> 2004 >> MX-5 Miata Base, Automatic >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Symptom Troubleshooting [Automatic Transmission] >> Automatic Transmission Basic Inspection

Automatic Transmission Basic Inspection

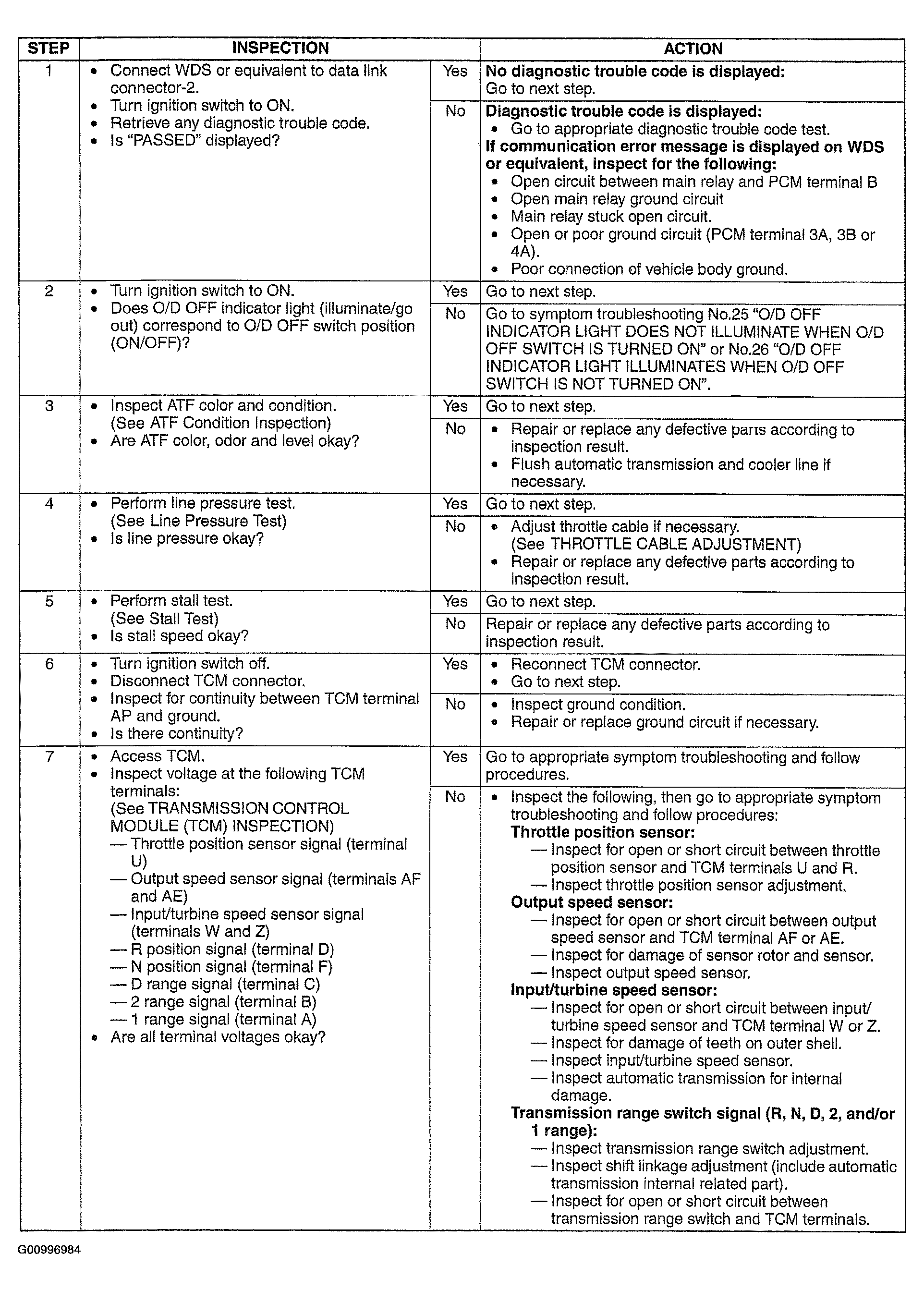

Fig 1: Automatic Transmission Basic Inspection Table

G00996984

Courtesy of MAZDA MOTORS CORP.
