Quick Diagnosis Chart

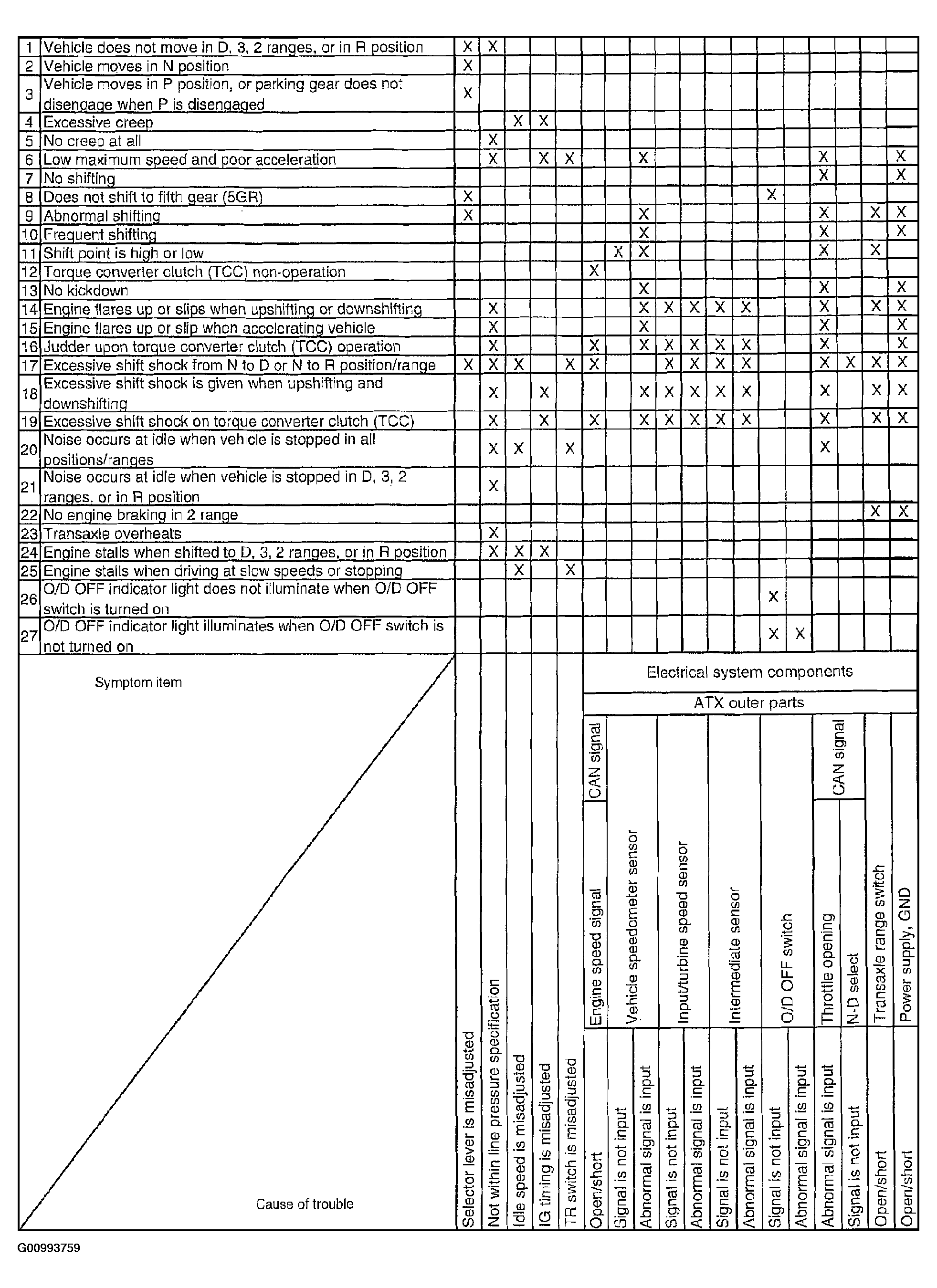

Fig 1: Quick Diagnosis Chart (1 Of 3)
G00993759Courtesy of MAZDA MOTORS CORP.

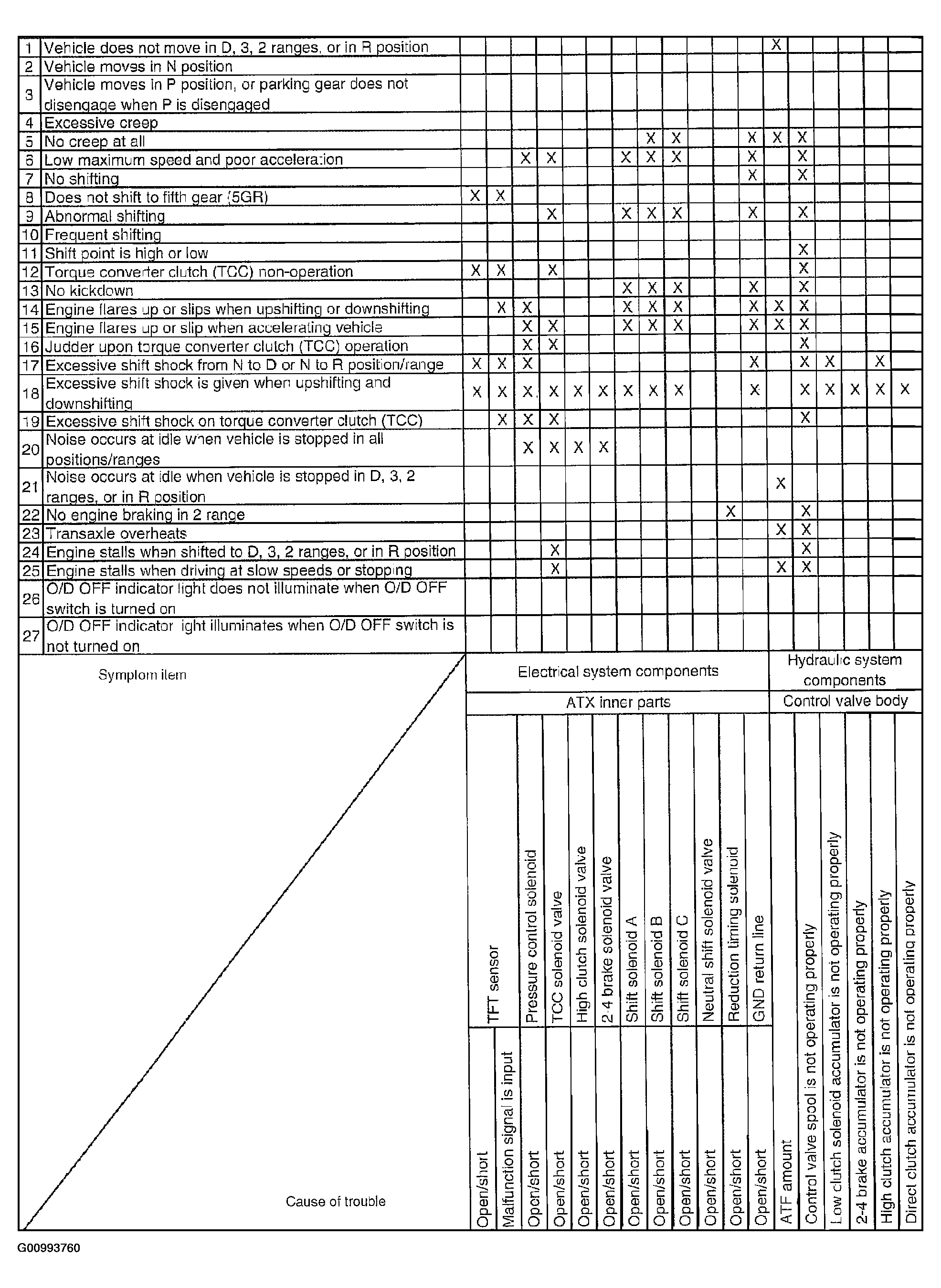

Fig 2: Quick Diagnosis Chart (2 Of 3)
G00993760Courtesy of MAZDA MOTORS CORP.

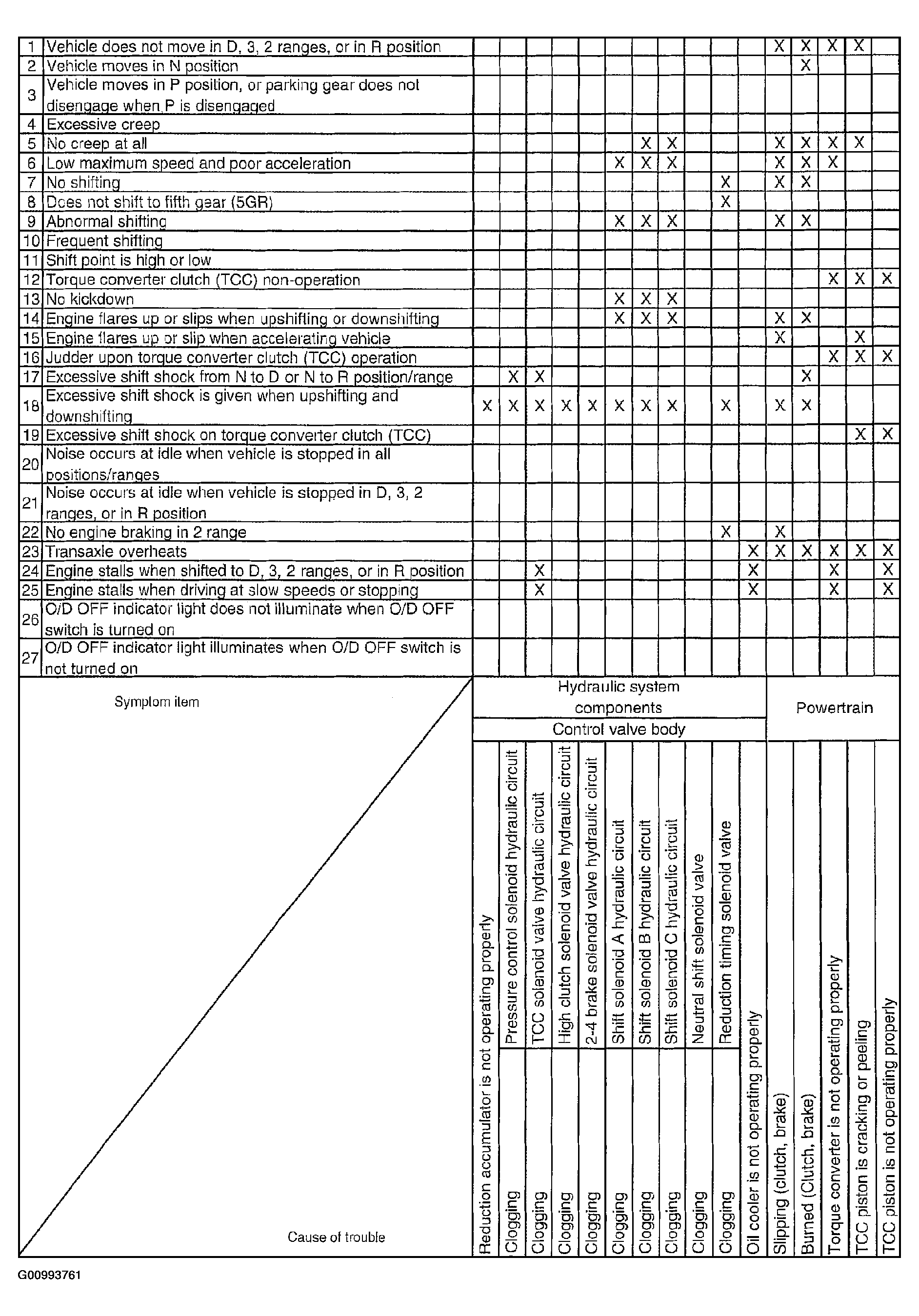

Fig 3: Quick Diagnosis Chart (3 Of 3)
G00993761Courtesy of MAZDA MOTORS CORP.
