Symptom Troubleshooting [Engine Control System AJ]
>>
No. 15 Emission Compliance
>>
Diagnostic Procedure
Diagnostic Procedure

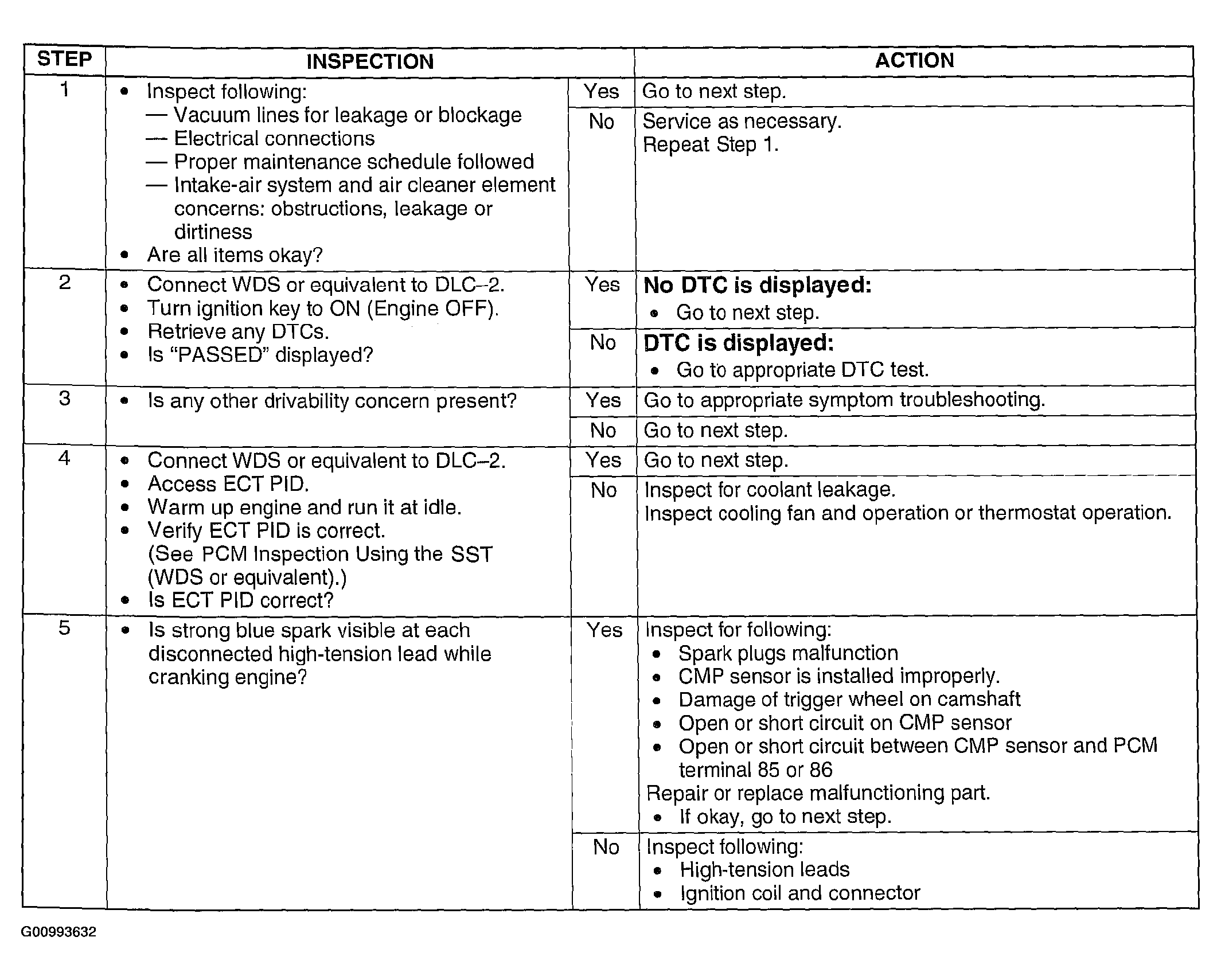

Fig 1: Symptom No.15 Diagnostic Procedure Chart (Step 1-5)
Courtesy of MAZDA MOTORS CORP.

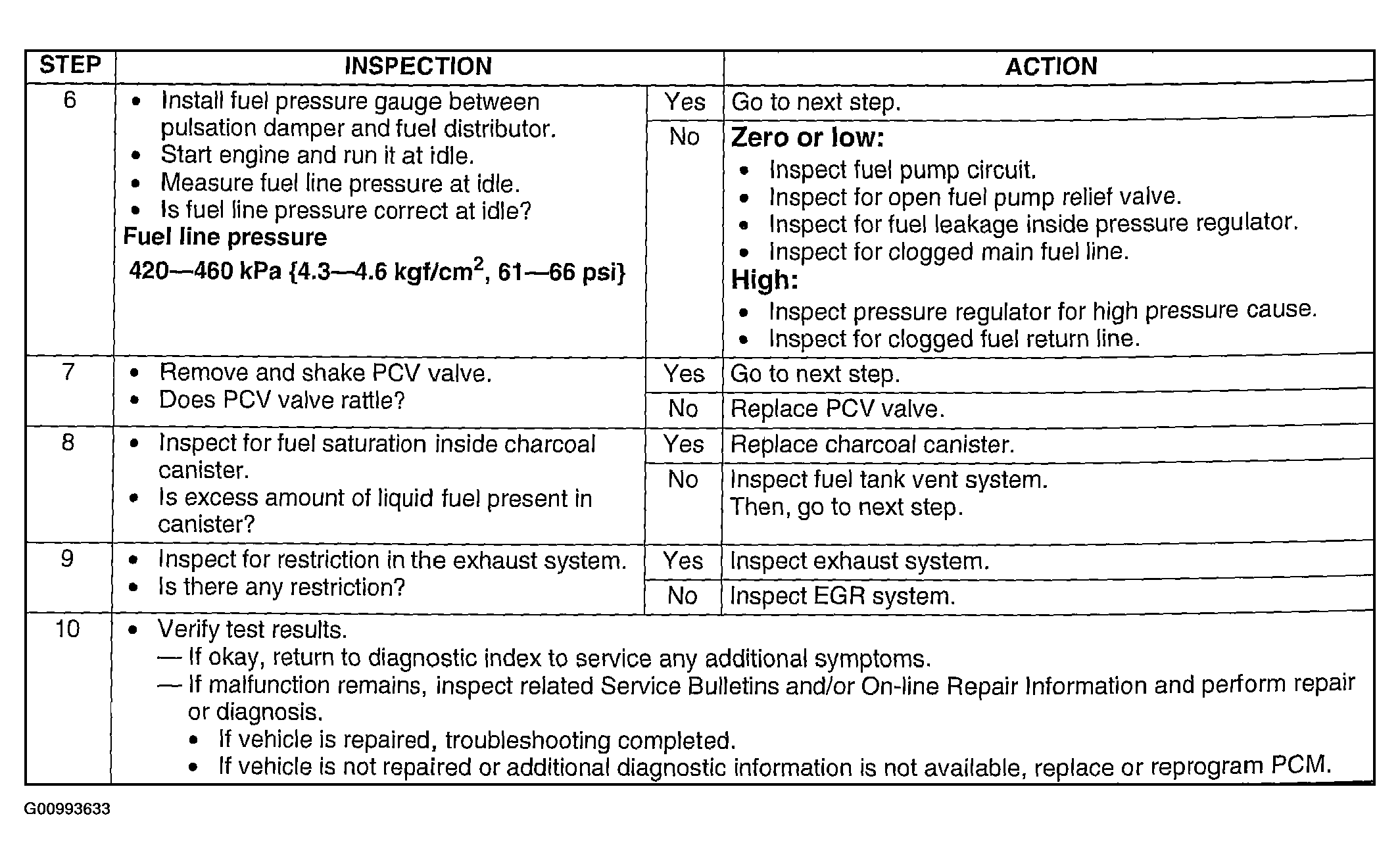

Fig 2: Symptom No.15 Diagnostic Procedure Chart (Step 6-10)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
