No. 1 Melting Of Main Or Other Fuses

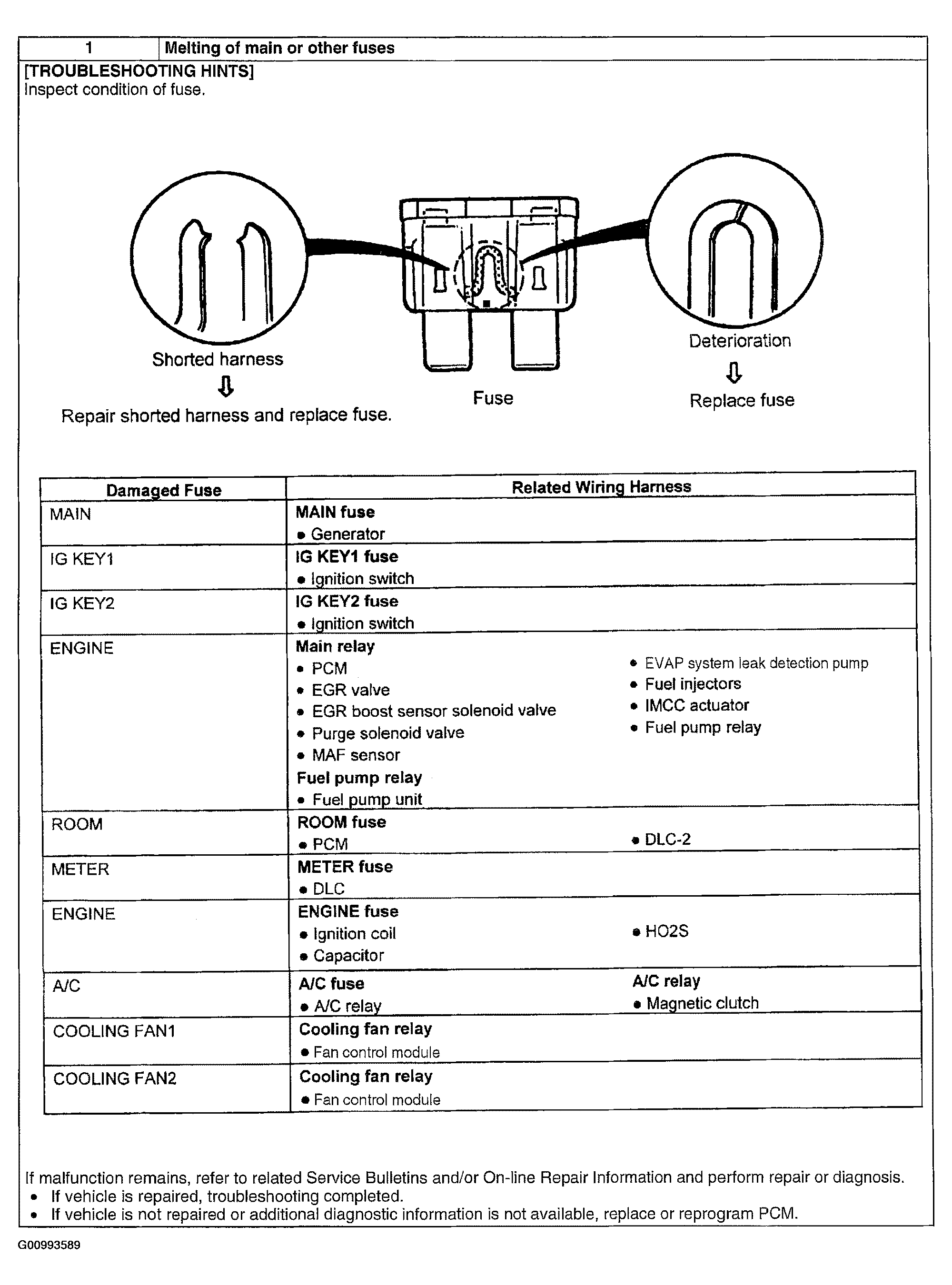

Fig 1: Symptom No. 1 Troubleshooting Hints

G00993589

Courtesy of MAZDA MOTORS CORP.
