Third-Row Seat Removal/Installation: Seat

  1. Remove the headrests.
  2. Remove the bolt. (LH)
    Fig 1: Removing Seat Bolt
    G02564150Courtesy of MAZDA MOTORS CORP.
  3. Stow the third-row seat.
  4. Open the cover (LH).
  5. Remove the bolts and then remove the third-row seat.

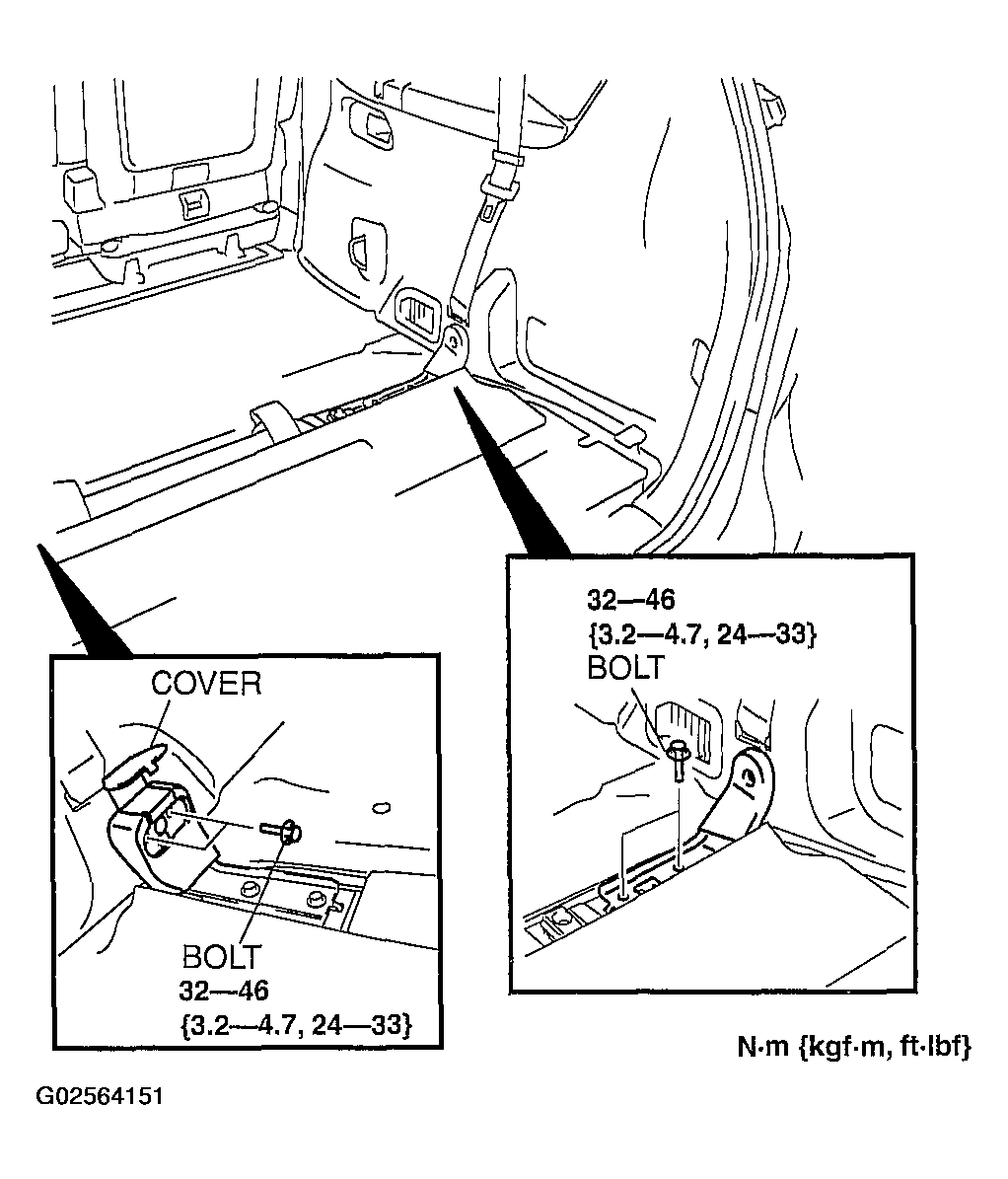

    Fig 2: Opening Cover & Bolt
    G02564151Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
