Rear Tilt Motor Inspection

  1. Disconnect the rear tilt motor connector.
  2. Inspect the rear tilt motor operation when B+ is applied to the terminals as shown.
    • If not as specified, replace the seat cushion frame.

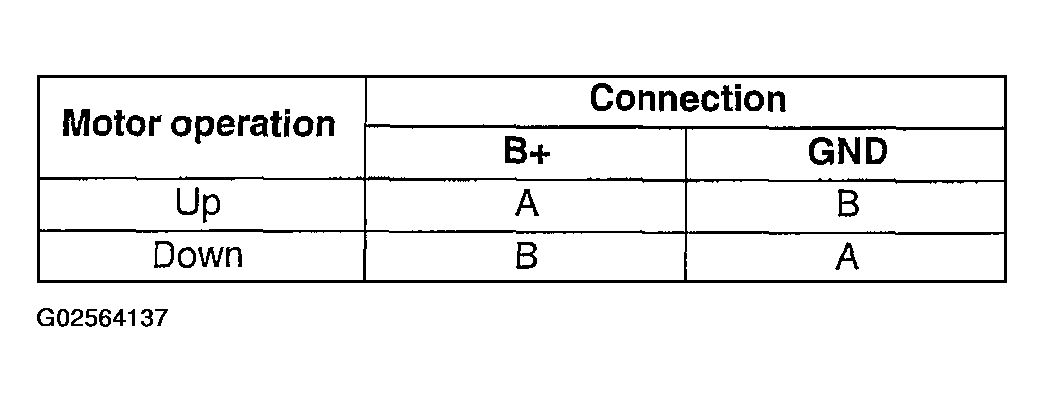

    Fig 1: Identifying Rear Tilt Motor Operation
    G02564137Courtesy of MAZDA MOTORS CORP.

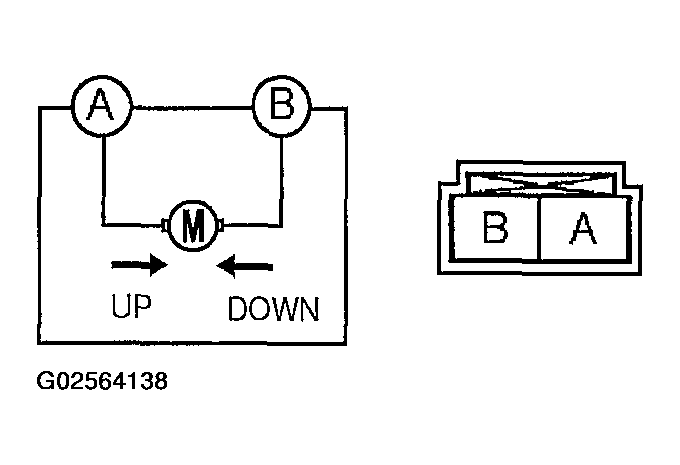

    Fig 2: Identifying Rear Tilt Motor Circuit, Terminals & Connector View
    G02564138Courtesy of MAZDA MOTORS CORP.
