Symptom Troubleshooting [Brake System)
>>
Symptom Troubleshooting
>>
Notes
Symptom Troubleshooting: Notes
Verify the symptoms, and perform troubleshooting according to the appropriate number.

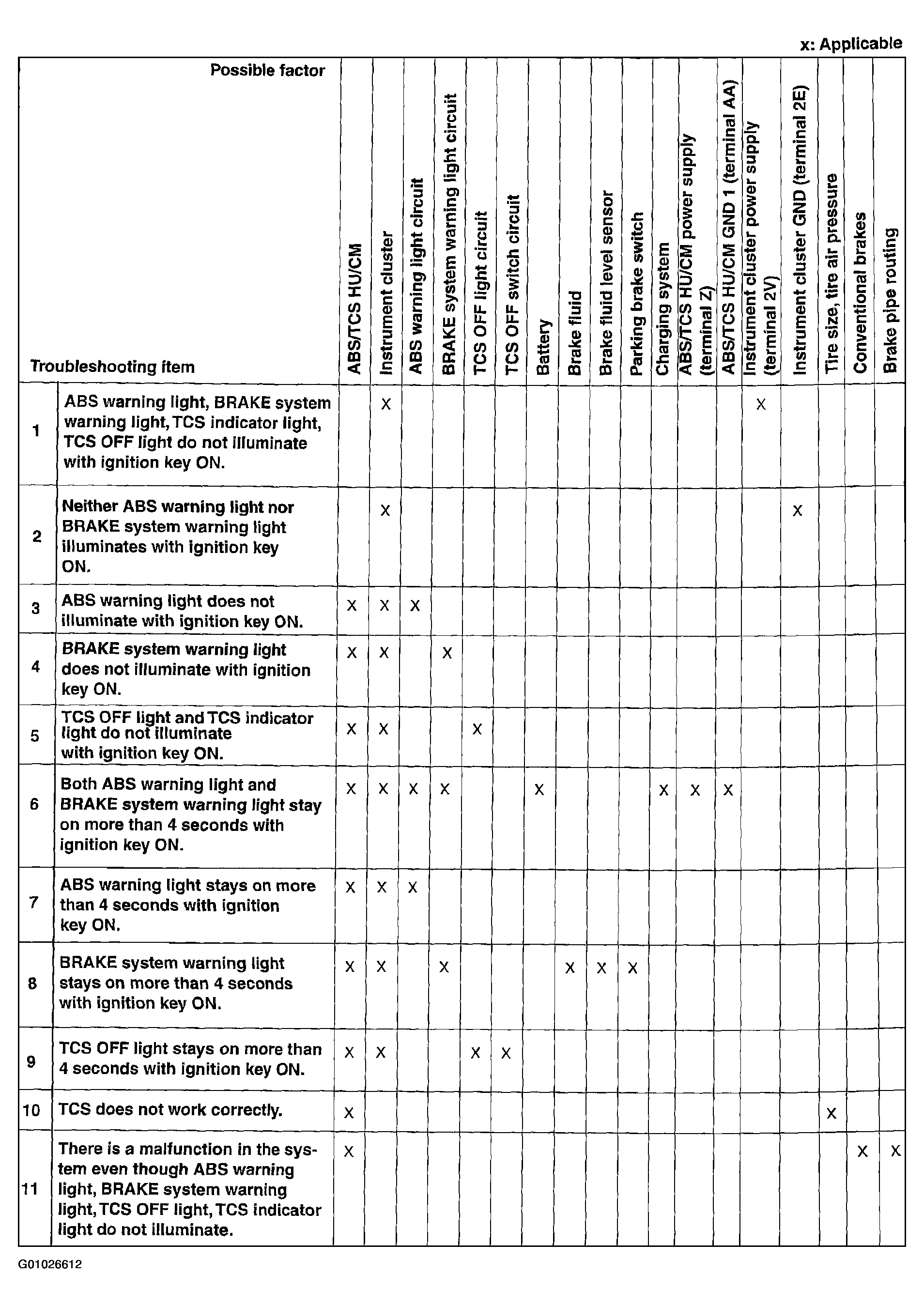

Fig 1: Symptom Troubleshooting Chart (1 Of 2)
Courtesy of MAZDA MOTORS CORP.
Fig 2: Symptom Troubleshooting Chart (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
