Cigarette Lighter Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove in the order indicated in the figure.

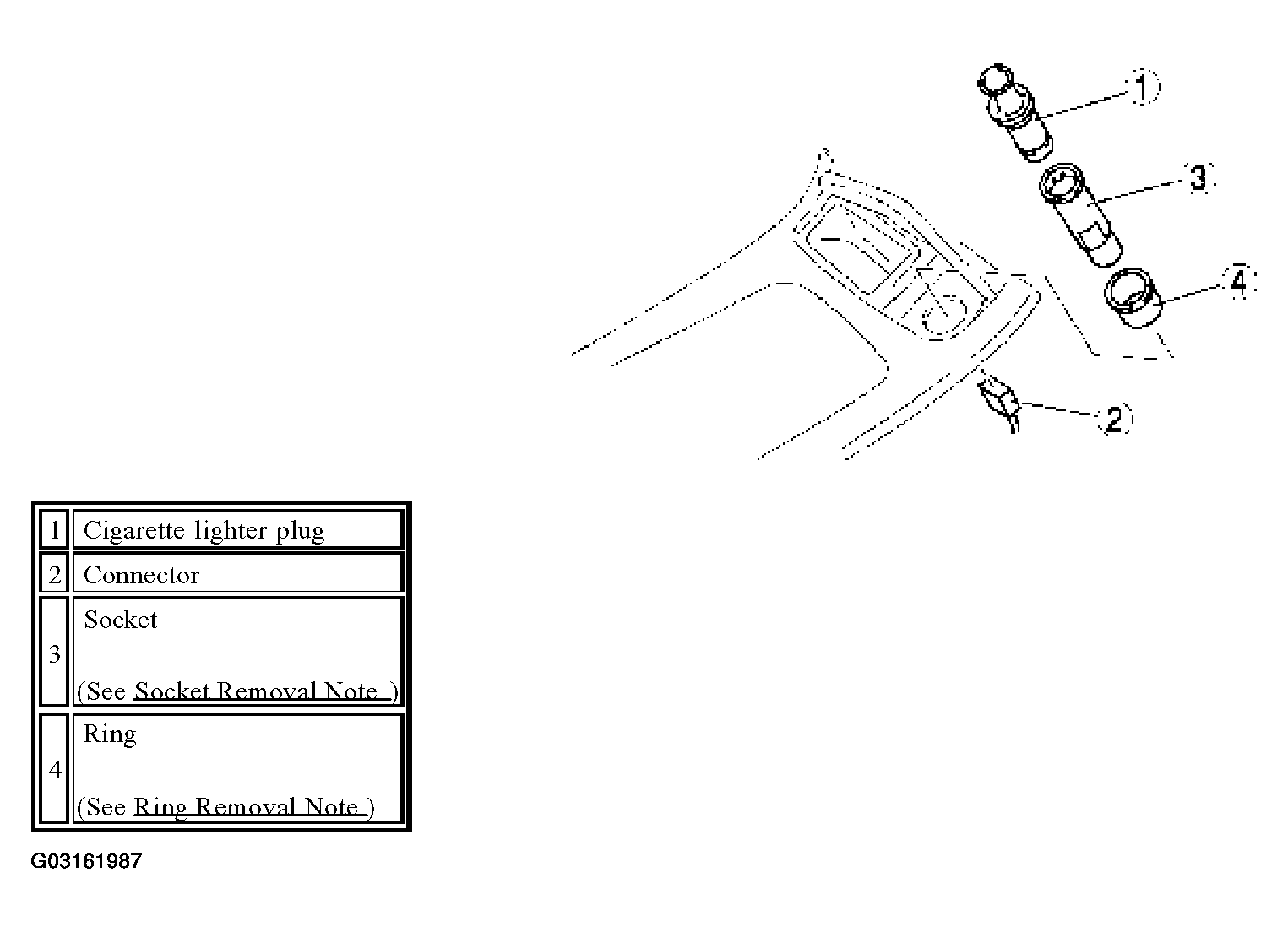

    Fig 1: Cigarette Lighter Removal Sequence
    G03161987Courtesy of MAZDA MOTORS CORP.
  3. Install in the reverse order of removal.
