Audio Unit Disassembly/Assembly

  1. Remove the audio unit. (See CENTER PANEL MODULE DISASSEMBLY/ASSEMBLY  .)
  2. Disassemble in the order indicated in the figure.

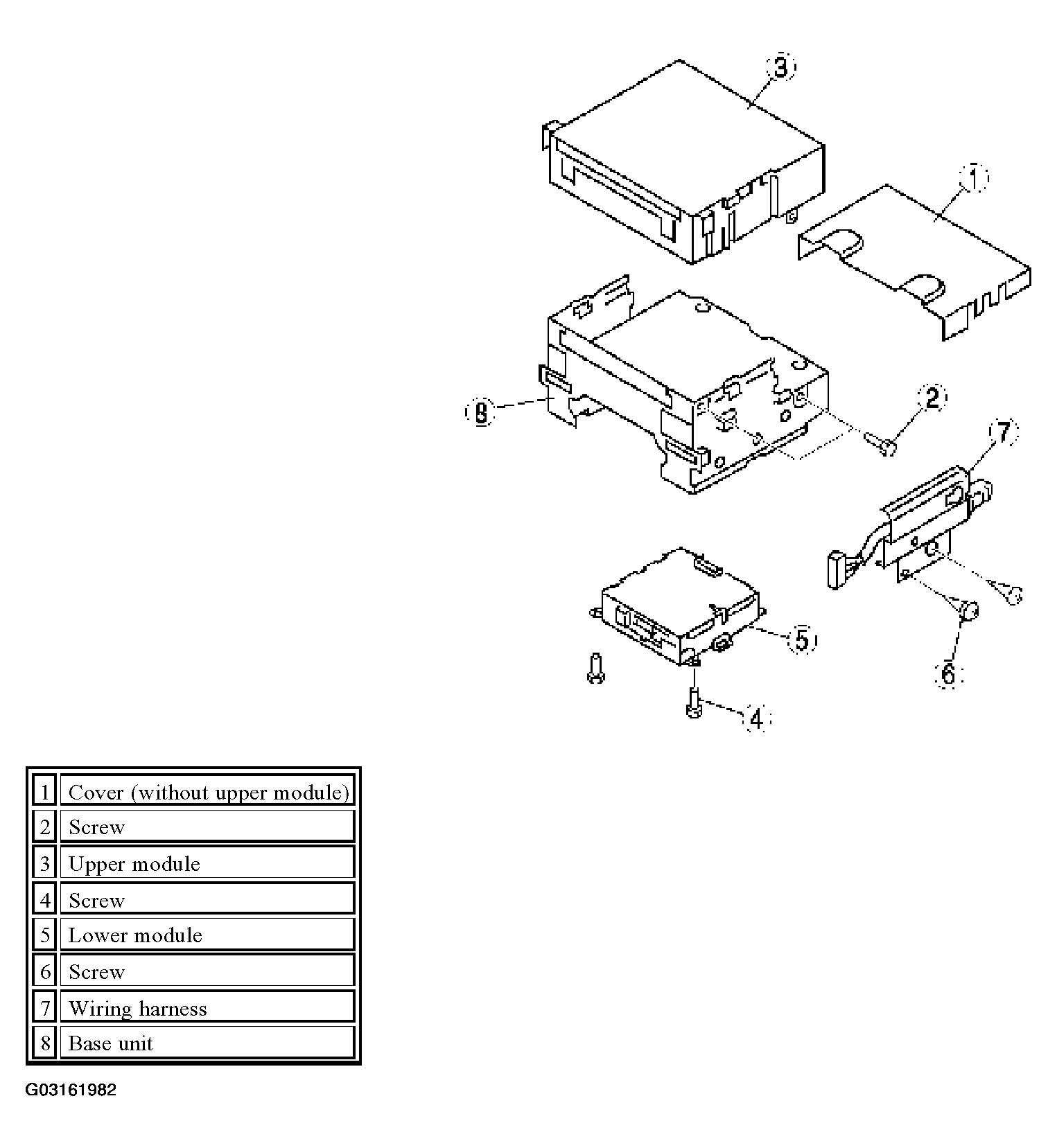

    Fig 1: Audio Unit Removal Sequence
    G03161982Courtesy of MAZDA MOTORS CORP.
  3. Assemble in the reverse order of disassembly.
