Audio Control Switch Removal/Installation

NOTE:
  • The audio control switch and the cruise control switch use a common connector.
  1. Disconnect the negative battery cable.
  2. Remove the driver-side air bag module. (See DUAL-STAGE DRIVER-SIDE AIR BAG MODULE .)
  3. Remove the steering wheel.
  4. Remove in the order indicated in the figure.

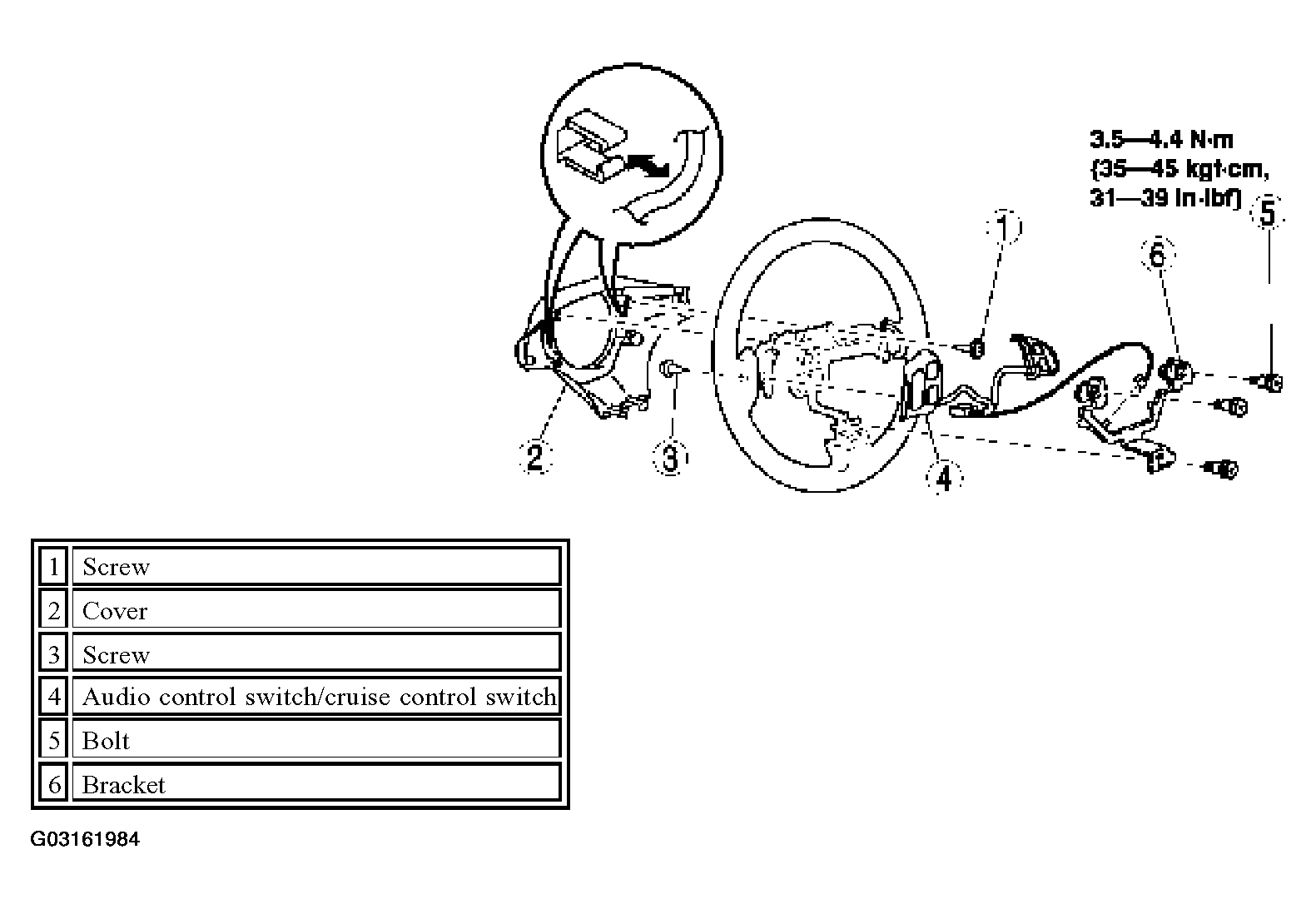

    Fig 1: Audio Control Switch Removal Installation
    G03161984Courtesy of MAZDA MOTORS CORP.
  5. Install in the reverse order of removal.
