Accessory Socket Removal/Installation: Notes

  1. Disconnect the negative battery cable.
  2. Remove the console. (See CONSOLE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure.

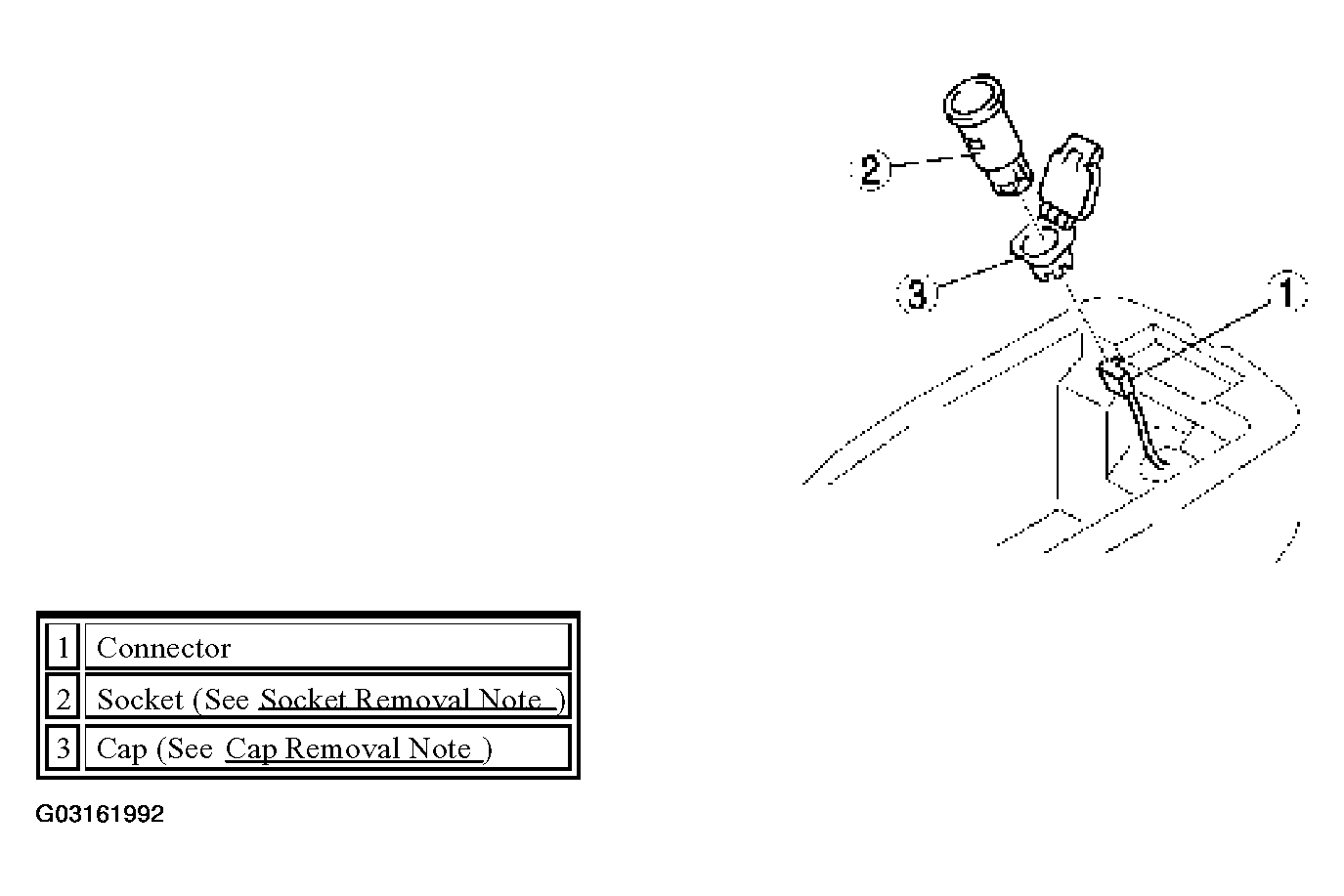

    Fig 1: Accessory Socket Removal Sequence
    G03161992Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
