Rear Safety Belt Retractor: Removal

WARNING:

All safety belt assemblies including retractors, buckles, front seat belt buckle support assemblies (slide bar), shoulder belt height adjusters (if so equipped), child safety seat tether attachments, and attaching hardware should be inspected after any collision. All belt assemblies should be replaced unless a qualified technician finds the assemblies show no damage and operate properly. Belt assemblies not in use during a collision should also be inspected and replaced if either damage or improper operation is noted.

NOTE:

Driver side shown, passenger side similar.

Vehicles With Rear Power Point

Disconnect the battery ground cable and wait at least one minute. .
Both Rear Safety Belt Retractors

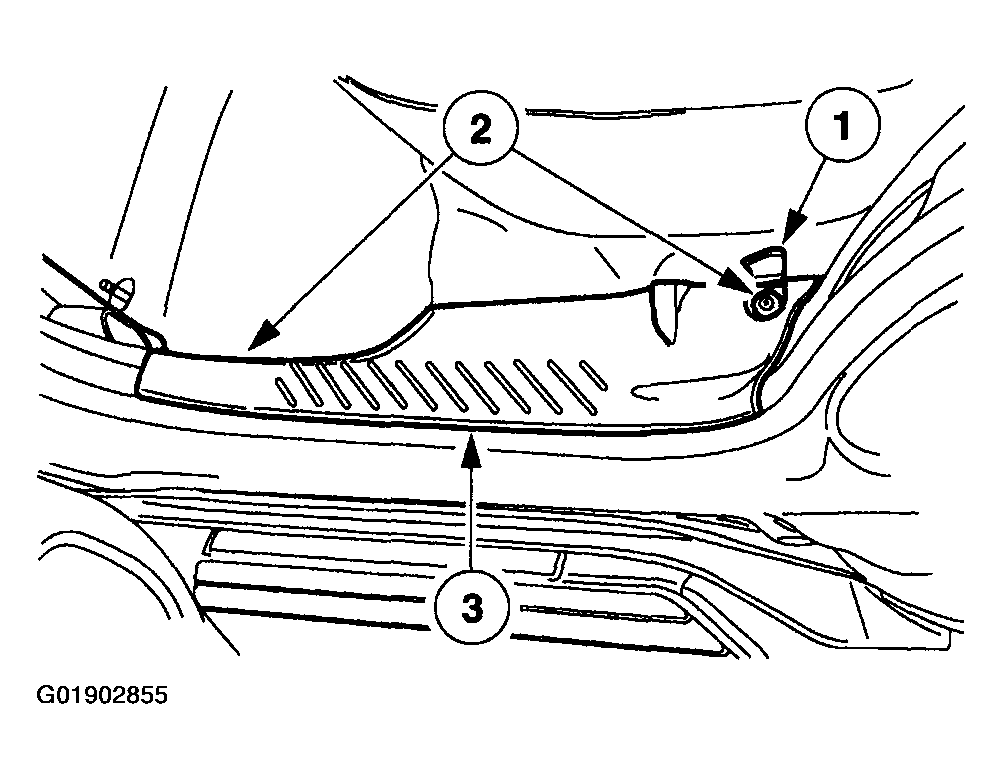

Fig 1: Removing Rear Door Scuff Plate
Courtesy of MAZDA MOTORS CORP.
Remove the rear door scuff plate.
1. Open the cover.
2. Remove the two pin-type retainers (one shown).
3. Remove the rear door scuff plate.

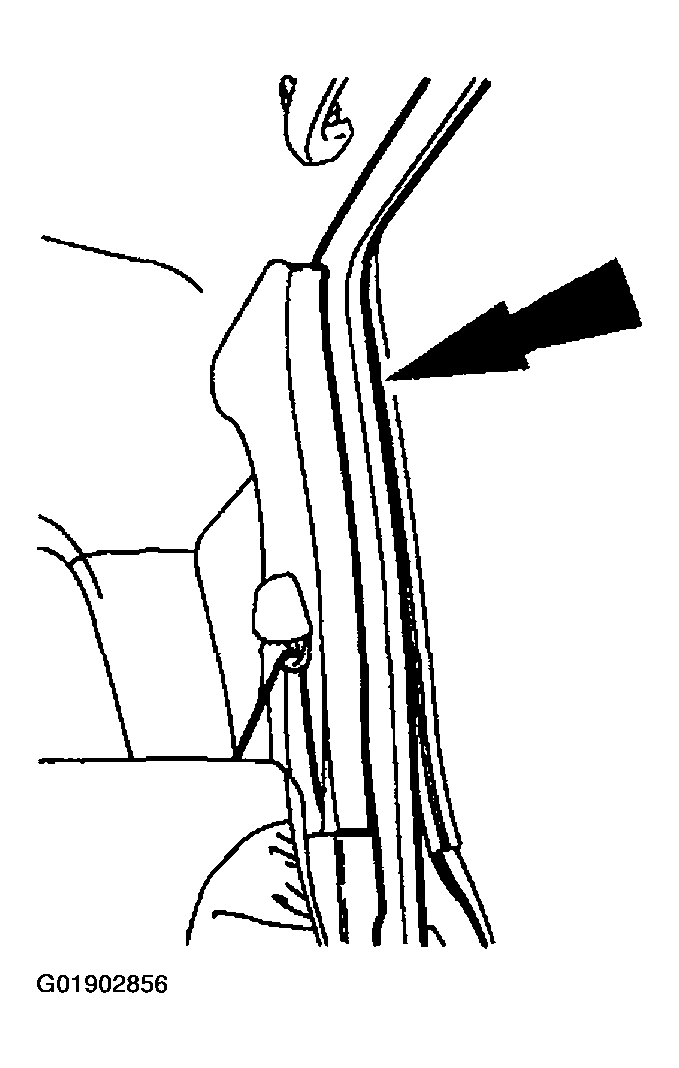

  Fig 2: Separating Weatherstripping
  Courtesy of MAZDA MOTORS CORP.
Separate the weatherstripping from the C-pillar.

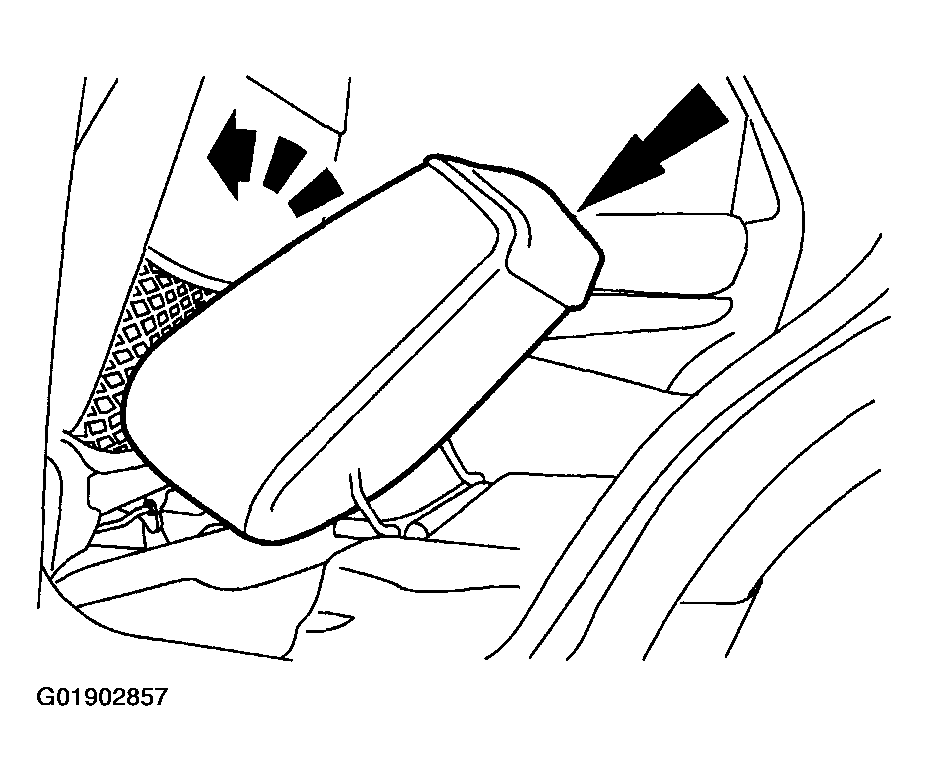

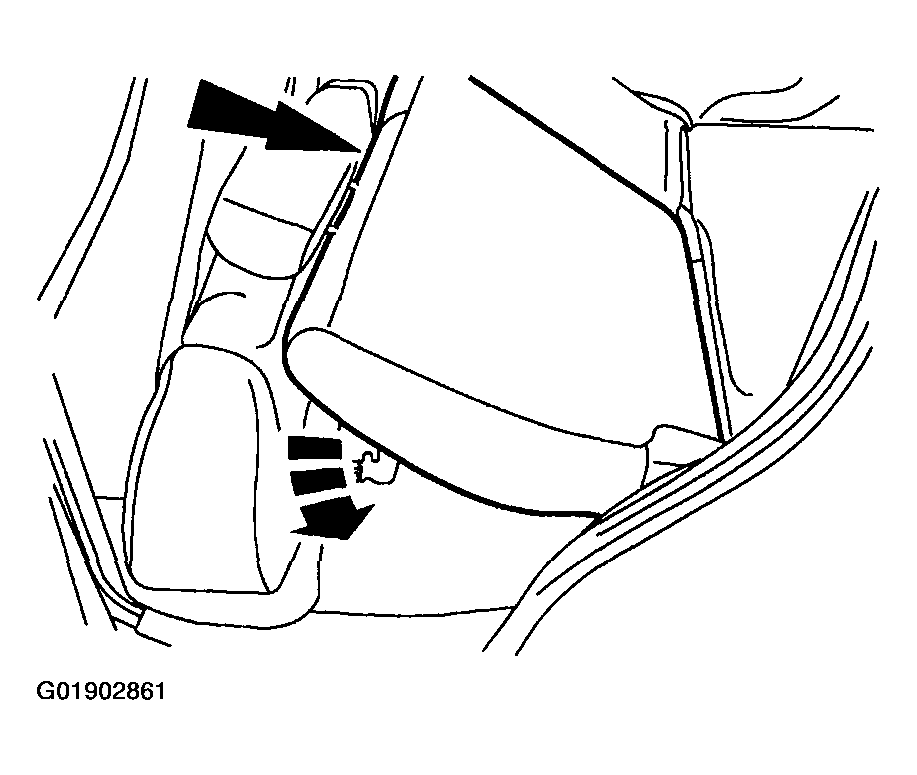

Fig 3: Pivoting Rear Seat Cushion Forward
Courtesy of MAZDA MOTORS CORP.
Pivot the rear seat cushion forward.

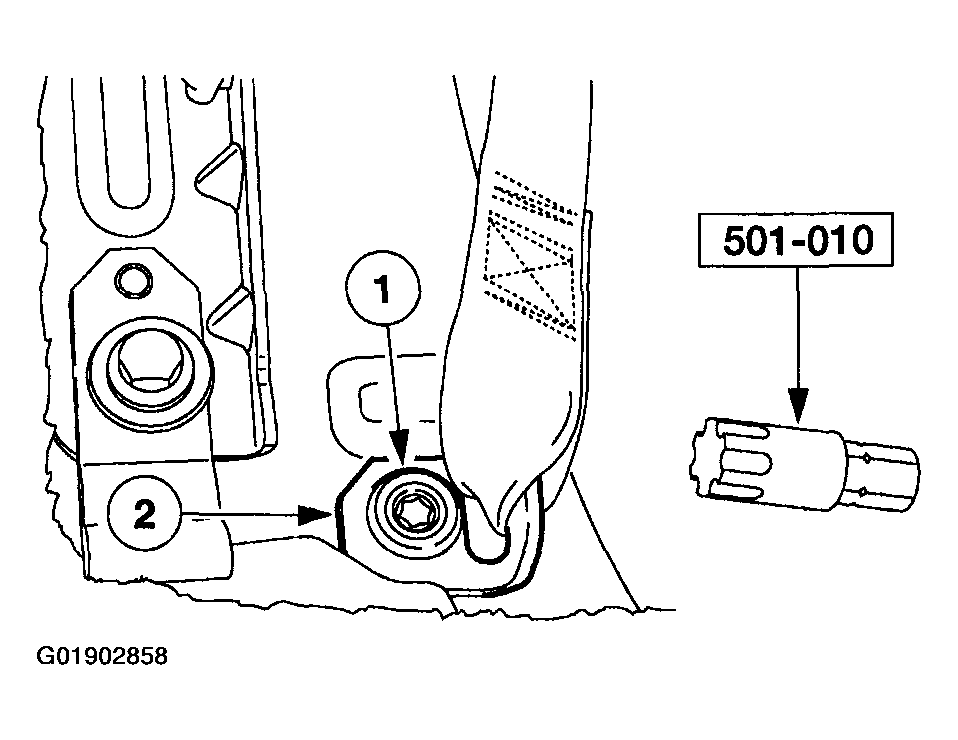

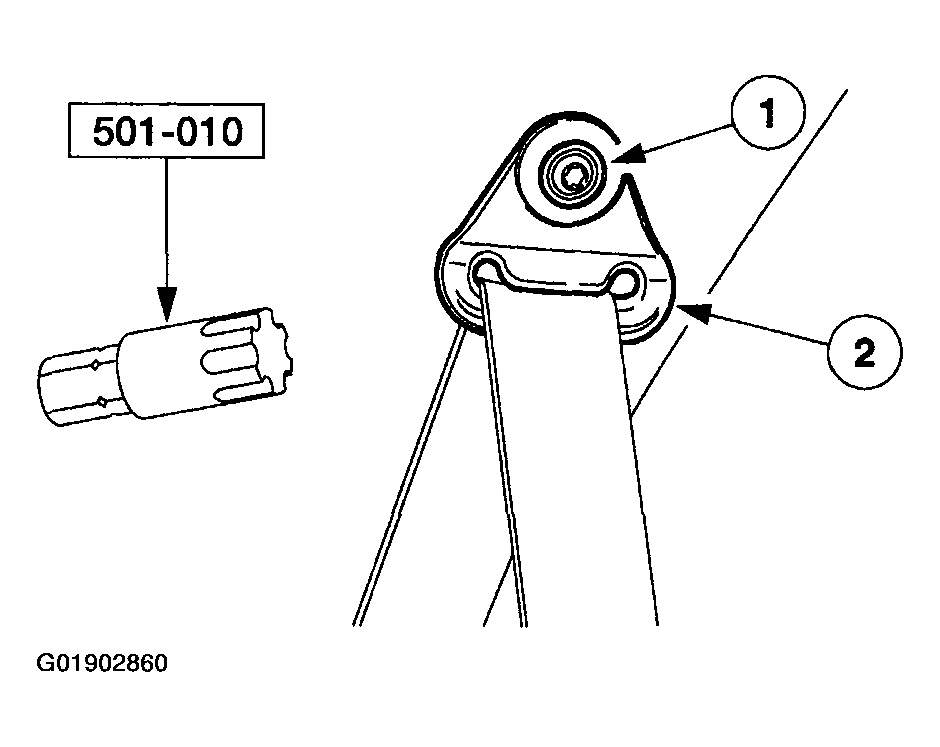

Fig 4: Removing Safety Belt Anchor
Courtesy of MAZDA MOTORS CORP.
Remove the safety belt anchor.
1. Using the special tool, remove the bolt.
2. Remove the safety belt anchor.

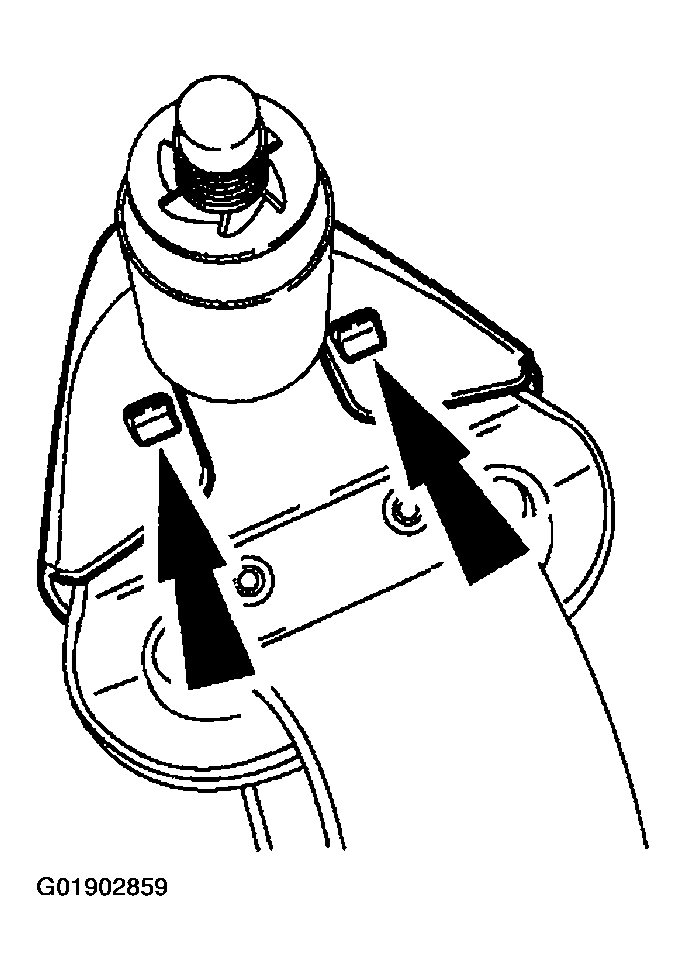

  Fig 5: Locating Retaining Tab
  Courtesy of MAZDA MOTORS CORP.
NOTE:
- The rear safety belt guide has been removed for clarity.
From behind the rear safety belt guide cover, release the retaining tabs, slide the cover up and remove it.

Fig 6: Removing Rear Safety Belt Guide
Courtesy of MAZDA MOTORS CORP.
Remove the rear safety belt guide.
1. Using the special tool, remove the bolt.
2. Remove the safety belt guide.
  - If necessary, remove the spacer from the rear safety belt guide.
Fig 7: Lowering Second Row Seat Backrest
Courtesy of MAZDA MOTORS CORP.
Lower the second row seat backrest.

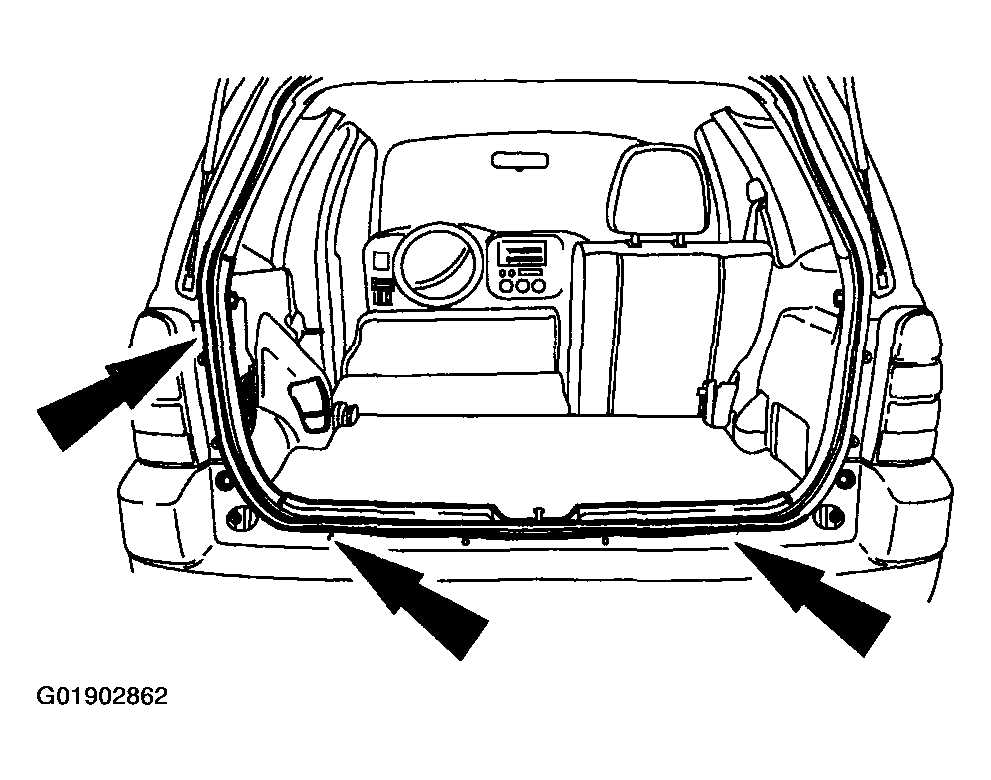

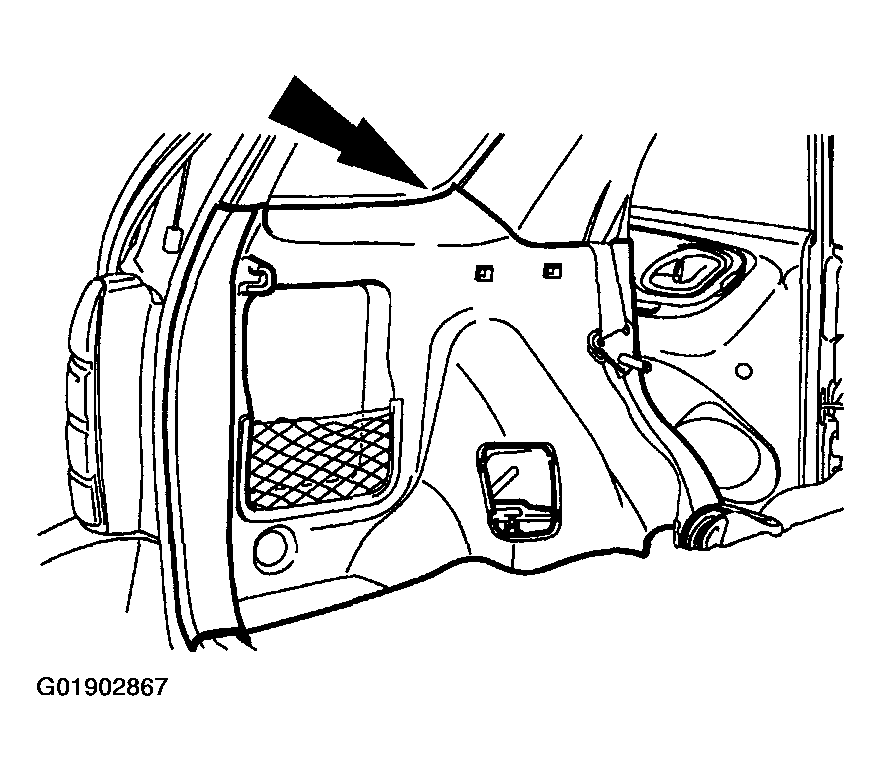

Fig 8: Separating Rear Hatch Weatherstripping
Courtesy of MAZDA MOTORS CORP.
Separate the rear hatch weatherstripping along the scuff plate and rear quarter trim panel on the side of the safety belt retractor being serviced.

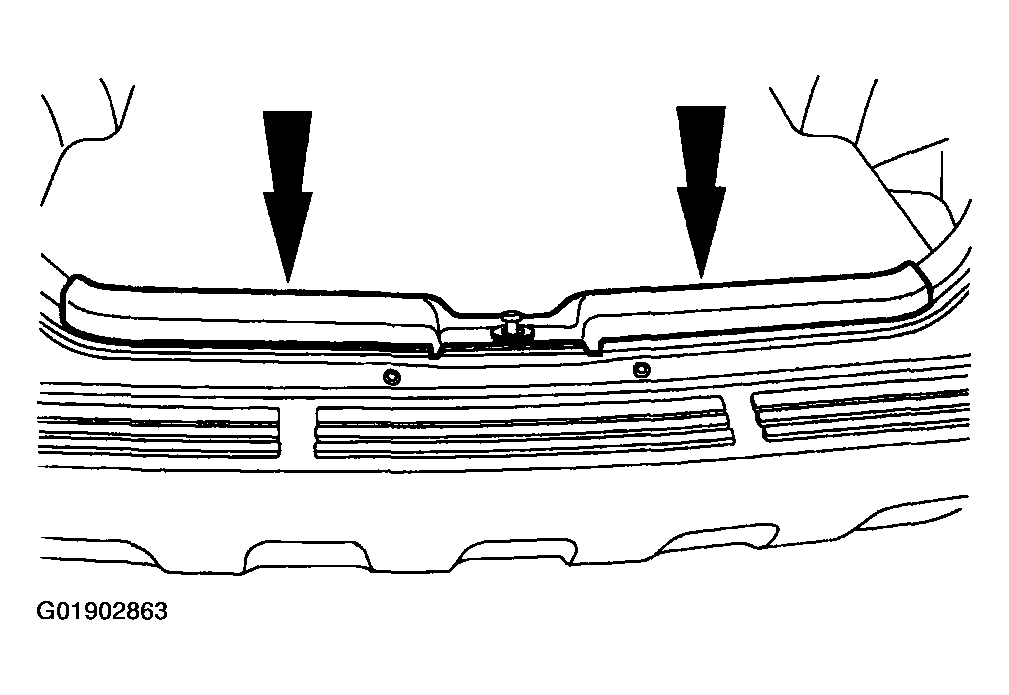

Fig 9: Removing Rear Hatch Scuff Plate
Courtesy of MAZDA MOTORS CORP.
Remove the rear hatch scuff plate.
- Pull up to release the retaining clips.
All Vehicles

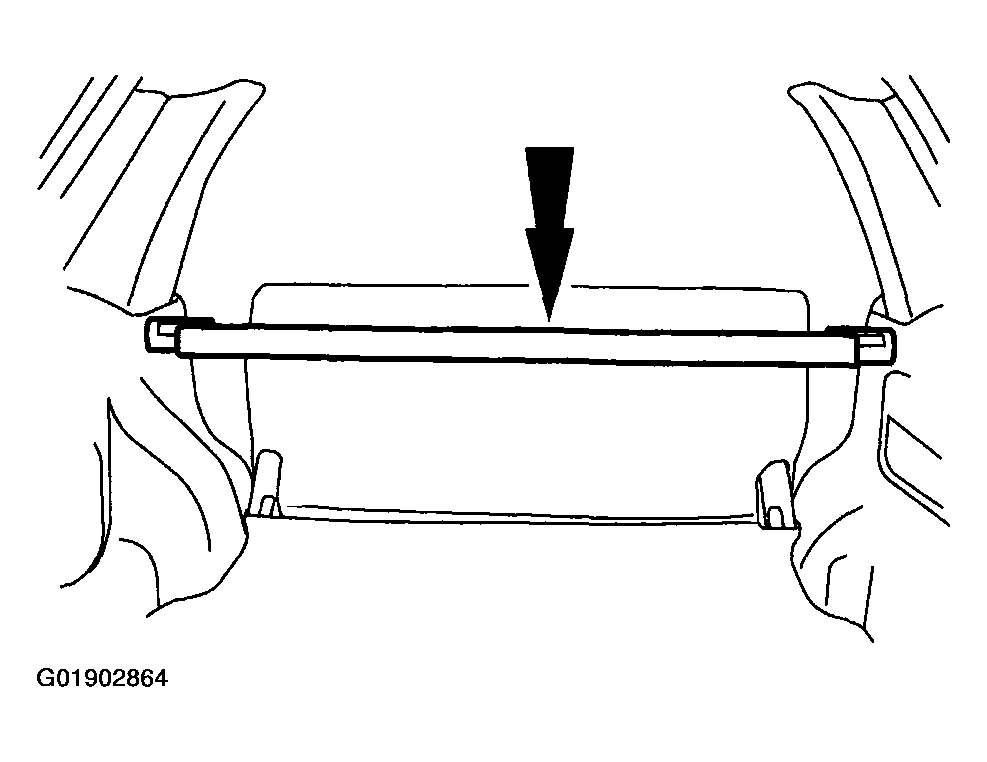

Fig 10: Removing Cargo Cover
Courtesy of MAZDA MOTORS CORP.
Remove the cargo cover.

Fig 11: Removing Cargo Cover Hold-Down
Courtesy of MAZDA MOTORS CORP.
Remove the cargo cover hold-down
RH Side Only

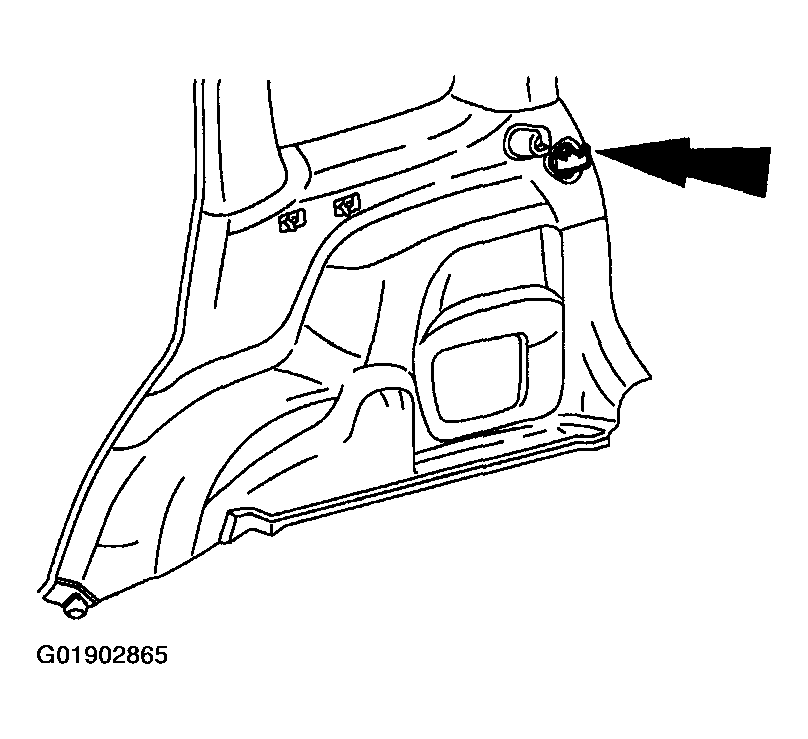

Fig 12: Removing Rear Quarter Trim Panel
Courtesy of MAZDA MOTORS CORP.
Pull out to release the retaining clips and remove the rear quarter trim panel.
LH Side Only

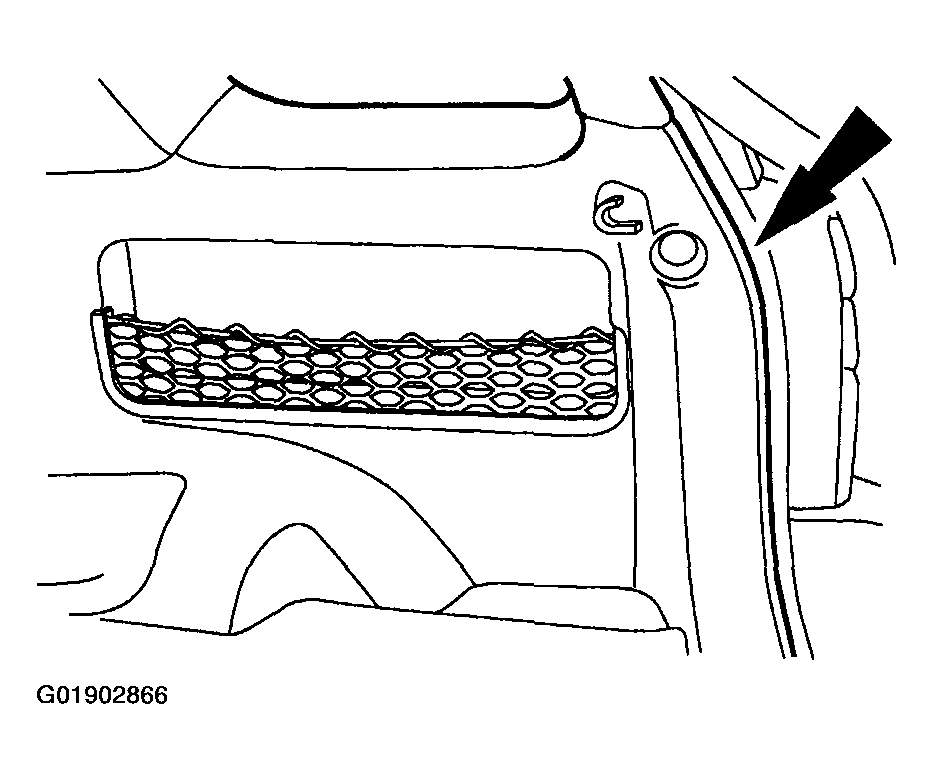

Fig 13: Removing Rear Quarter Trim Panel
Courtesy of MAZDA MOTORS CORP.
Pull out to release the retaining clips and remove the rear quarter trim panel.

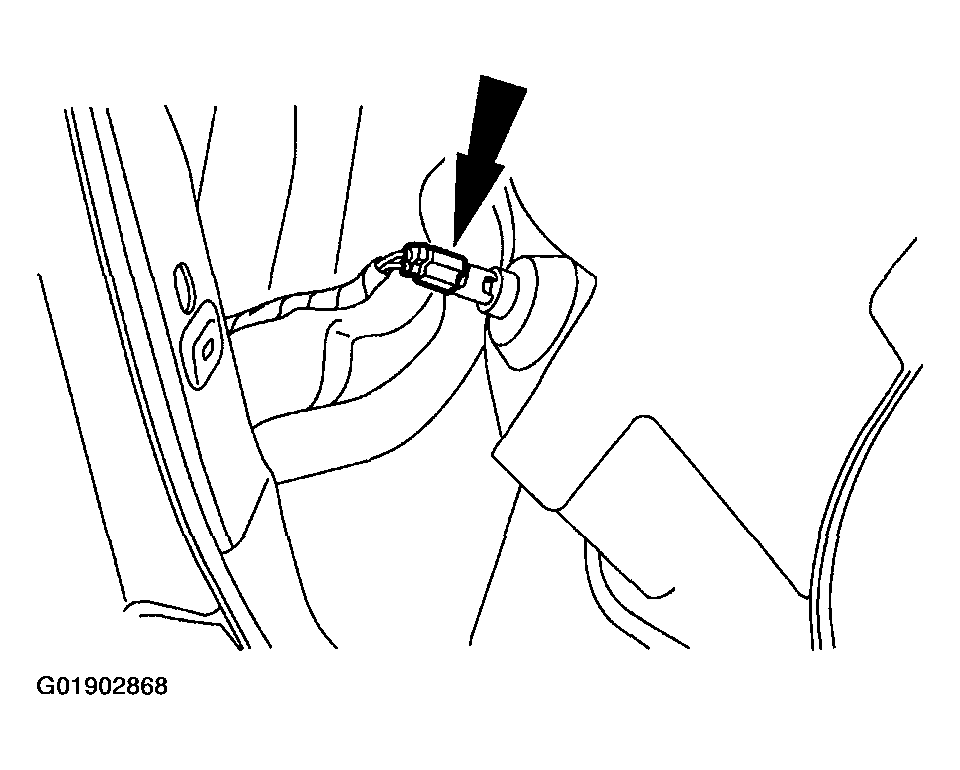

Fig 14: Disconnecting Power Point Electrical Connector
Courtesy of MAZDA MOTORS CORP.
Remove the rear quarter trim panel.
- If equipped, disconnect the power point electrical connector.
Both Rear Safety Belt Retractors

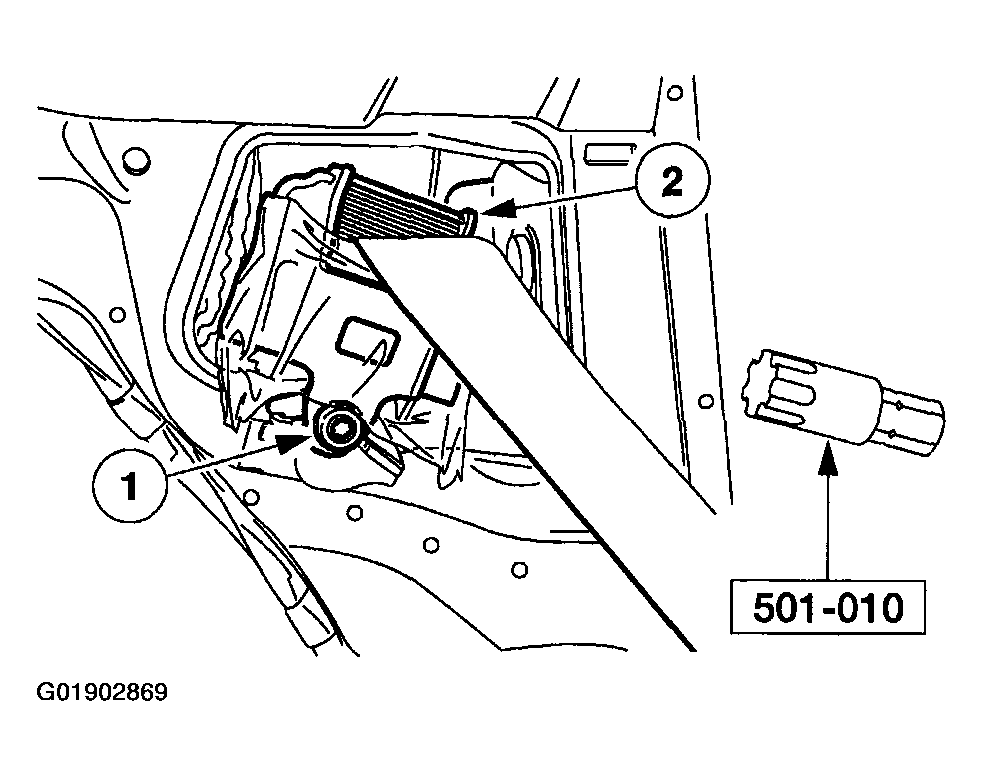

Fig 15: Removing Rear Safety Belt Retractor
Courtesy of MAZDA MOTORS CORP.
Remove the rear safety belt retractor.
1. Using the special tool, remove the bolt.
2. Remove the rear safety belt retractor.
