Removal and Installation

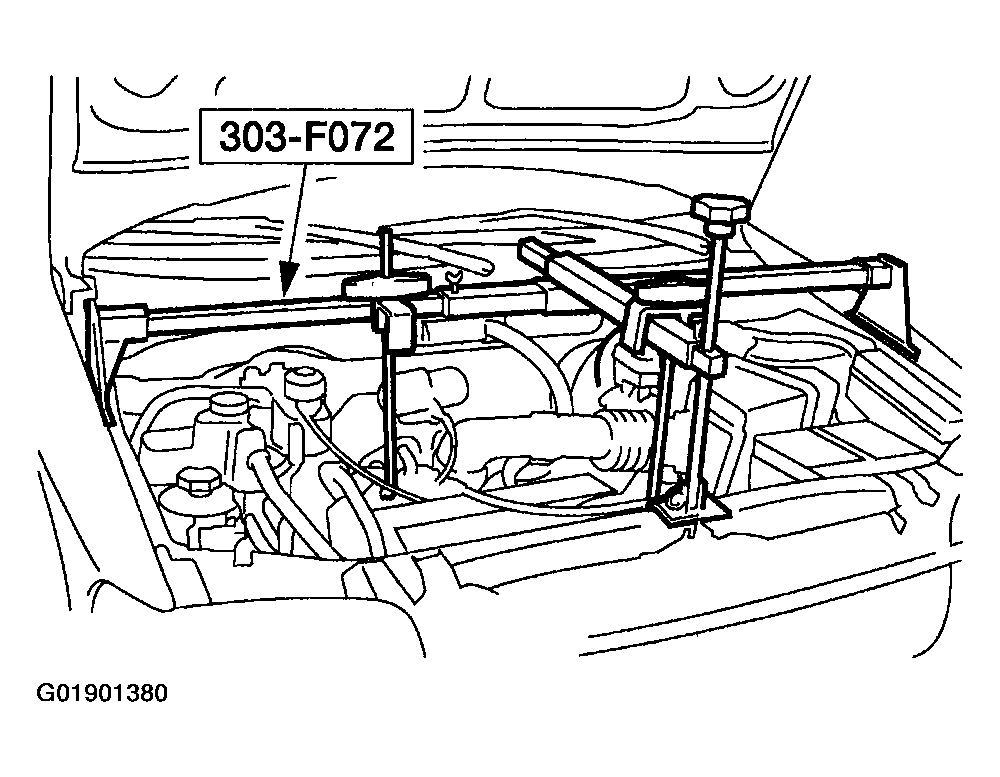

Fig 1: Using Special Tool, Support Engine

Courtesy of MAZDA MOTORS CORP.

Using the special tool, support the engine.

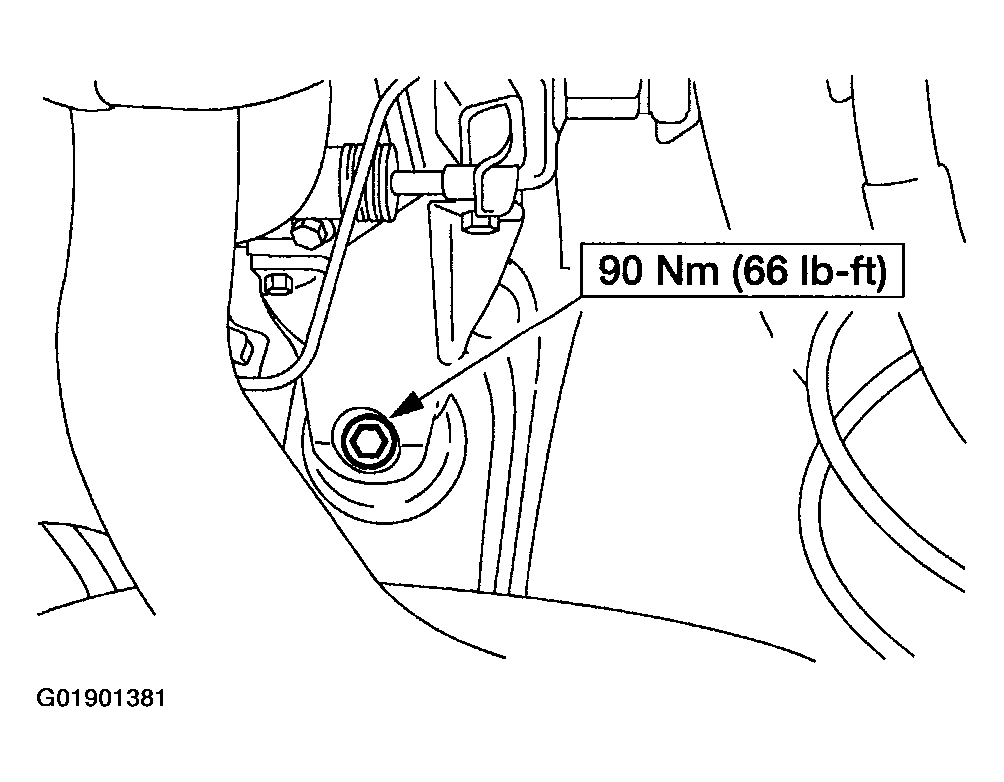

Fig 2: Removing Front Transaxle Support Insulator Bolt
Courtesy of MAZDA MOTORS CORP.
Remove the front transaxle support insulator bolt.
Raise and support the vehicle. .

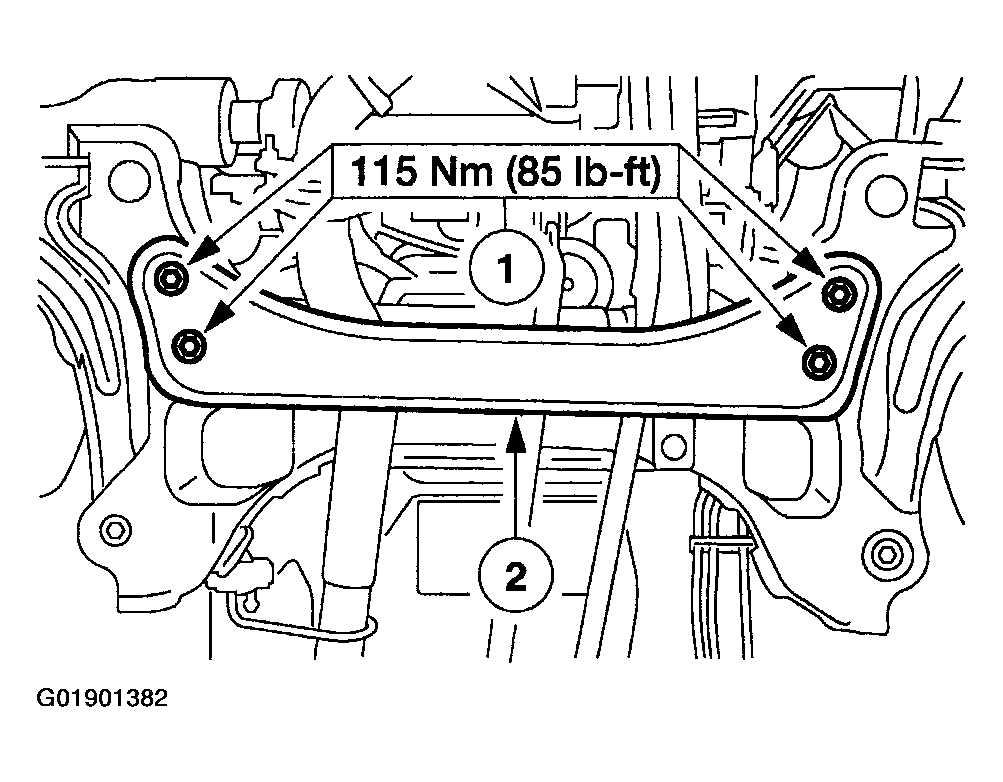

Fig 3: Removing Transverse Crossmember
Courtesy of MAZDA MOTORS CORP.
Remove the transverse crossmember.
1. Remove the bolts.
2. Remove the transverse crossmember.

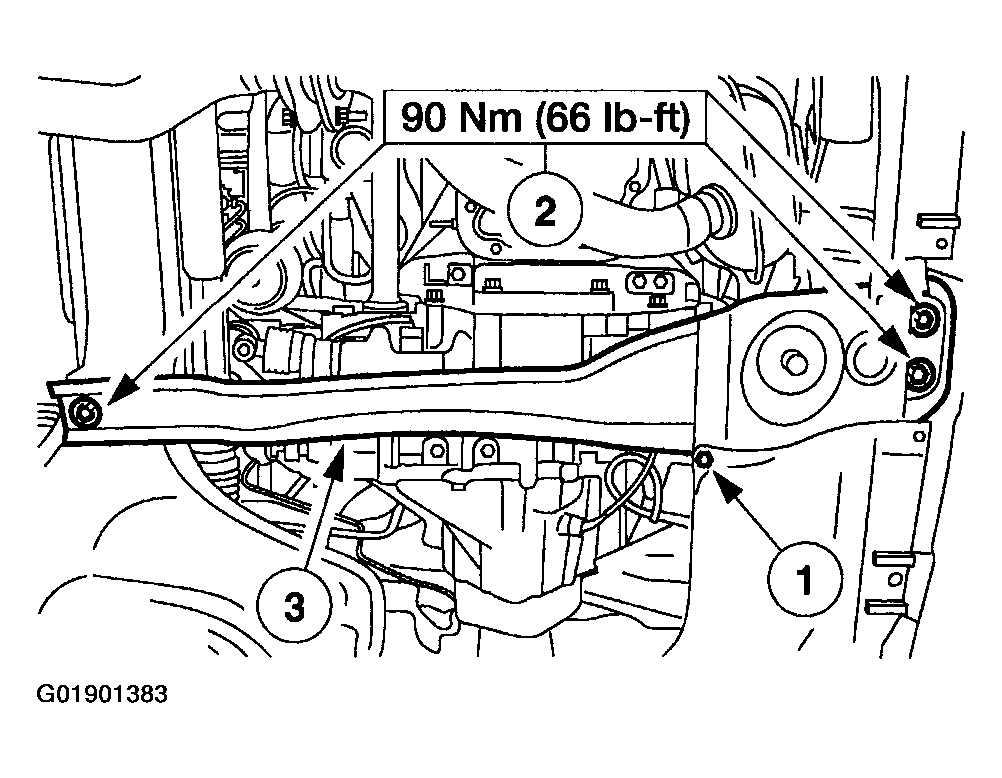

  Fig 4: Removing Front-To-Aft Crossmember
  Courtesy of MAZDA MOTORS CORP.
Remove the front-to-aft crossmember.
1. Remove the splash shield screw.
2. Remove the bolts and the nut.
3. Remove the front-to-aft crossmember.
To install, reverse the removal procedure.
