Inner Rotor, Outer Rotor Assembly Note

  1. Match the punch marks on the inner and outer rotor before installing the inner and outer rotor.

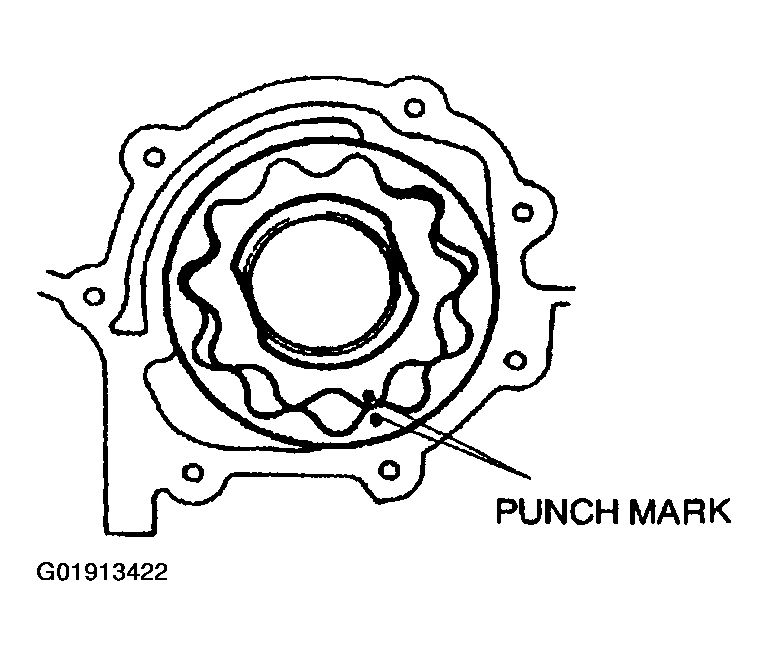

    Fig 1: Matching Punch Marks On Inner And Outer Rotor
    G01913422Courtesy of MAZDA MOTORS CORP.
