Steering Gear And Linkage Disassembly/Assembly: Notes

  1. Disassemble in the order indicated in the table.

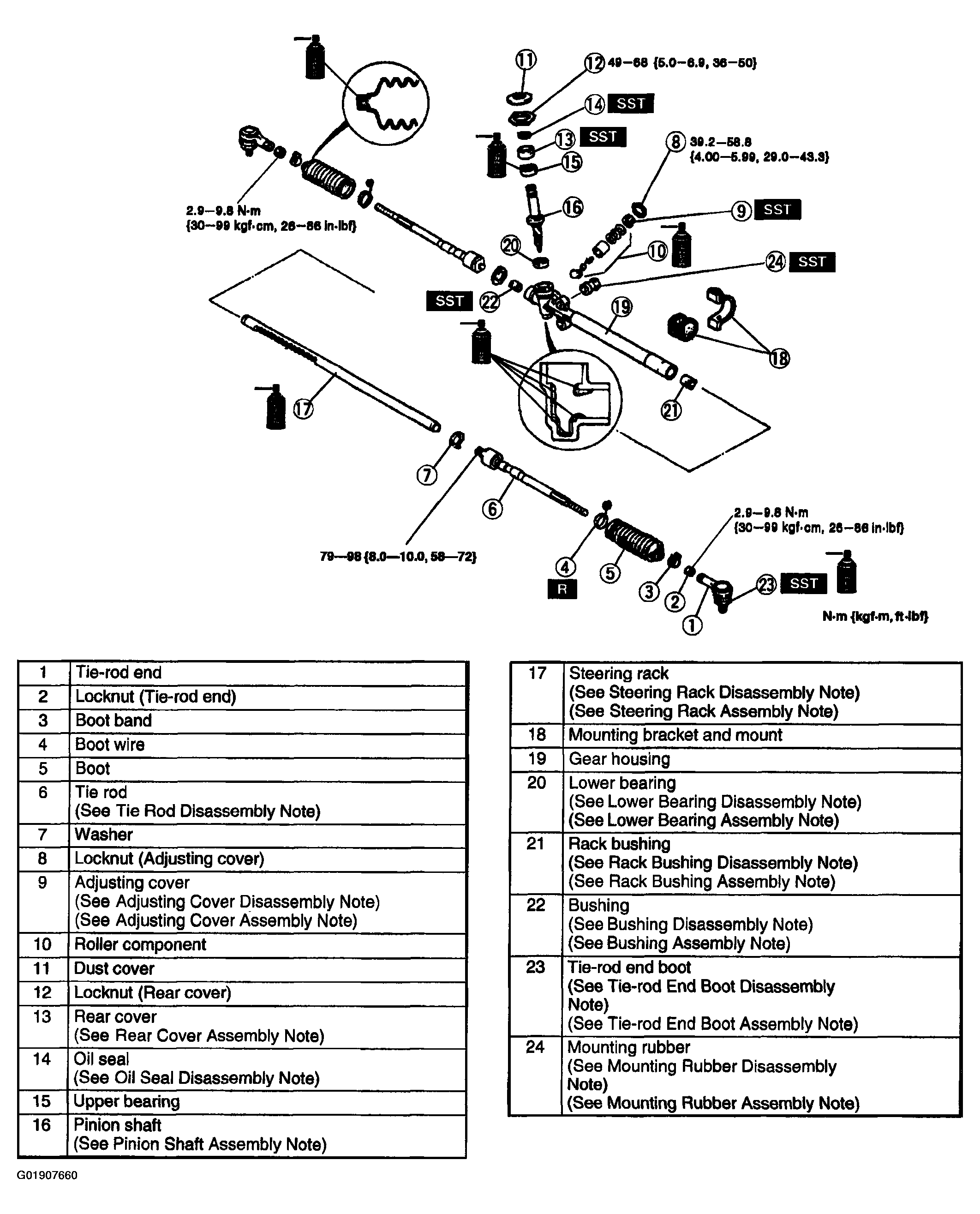

    Fig 1: Disassemble Order Of Steering Gear And Linkage
    G01907660Courtesy of MAZDA MOTORS CORP.
  2. Assemble in the reverse order of disassembly.
