Blower Unit Removal/Installation

  1. Disconnect the negative battery cable.
  2. Remove the dashboard. (See DASHBOARD REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the figure below.
    Fig 1: Blower Unit Component Table
    G01883626Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.

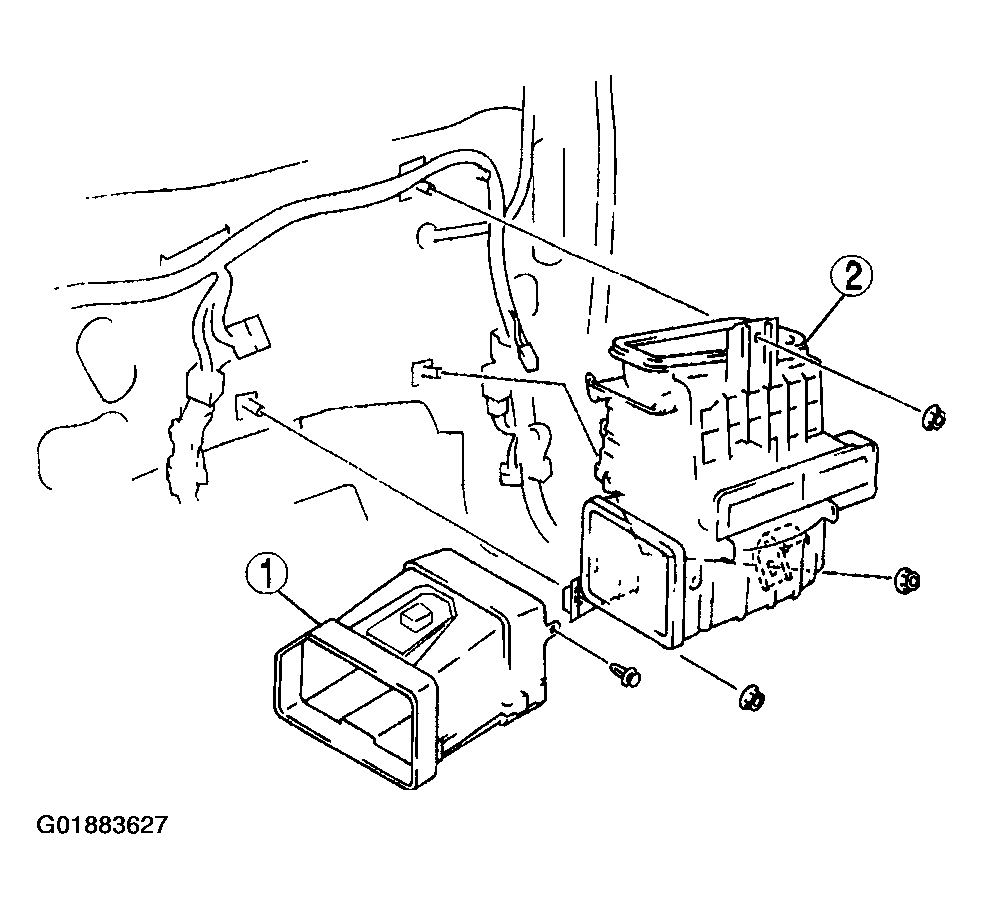

    Fig 2: Removing Blower Unit
    G01883627Courtesy of MAZDA MOTORS CORP.
