Rear Tilt Motor Inspection

  1. Disconnect the rear tilt motor connector.
  2. Inspect the rear tilt motor operation when B+ is applied to the terminals as shown.
    • If not as specified, replace the seat cushion frame.

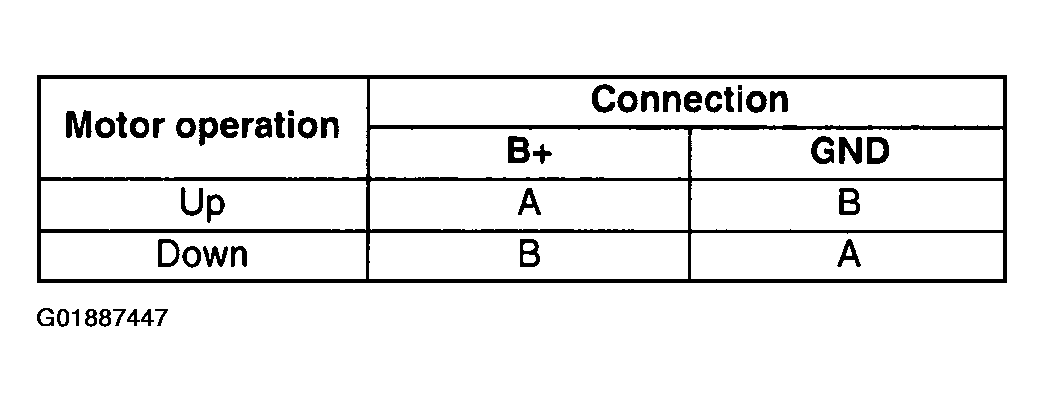

      Fig 1: Rear Tilt Motor Operation (1 Of 2)
      G01887447Courtesy of MAZDA MOTORS CORP.

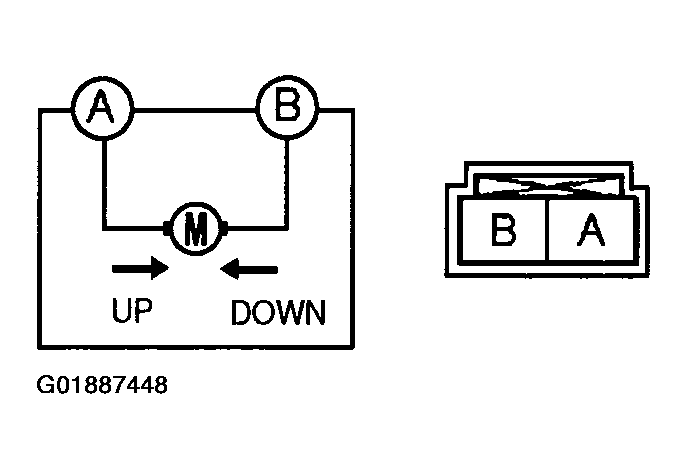

      Fig 2: Rear Tilt Motor Operation (2 Of 2)
      G01887448Courtesy of MAZDA MOTORS CORP.
