LEMON Manuals
: Even more car manuals for everyone
Home
>>
Mazda
>>
2003
>>
MPV ES
>>
Repair and Diagnosis
>>
Body & Frame
>>
Seats
>>
Front Seat Disassembly/Assembly
>>
Driver's Seat (Power Seat)
>>
Notes
Driver's Seat (Power Seat): Notes

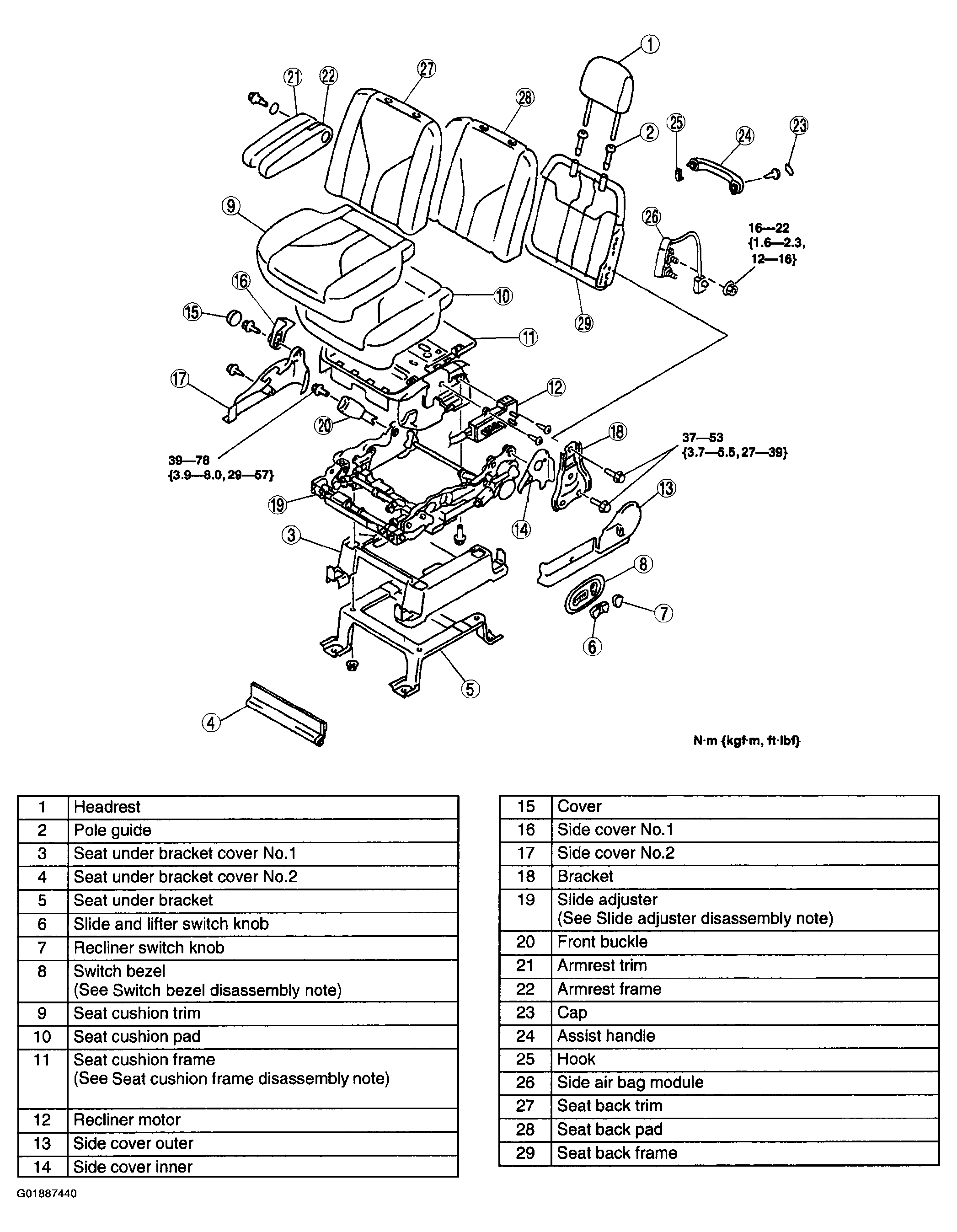

Fig 1: Exploded View Of Driver'S Seat (Power Seat)
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
