Main Fuse Block

Main fuse block is located next to the battery inside the engine compartment. See Fig 1.

Fig 1: Locating Engine Compartment Fuse Block

Courtesy of MAZDA MOTORS CORP.

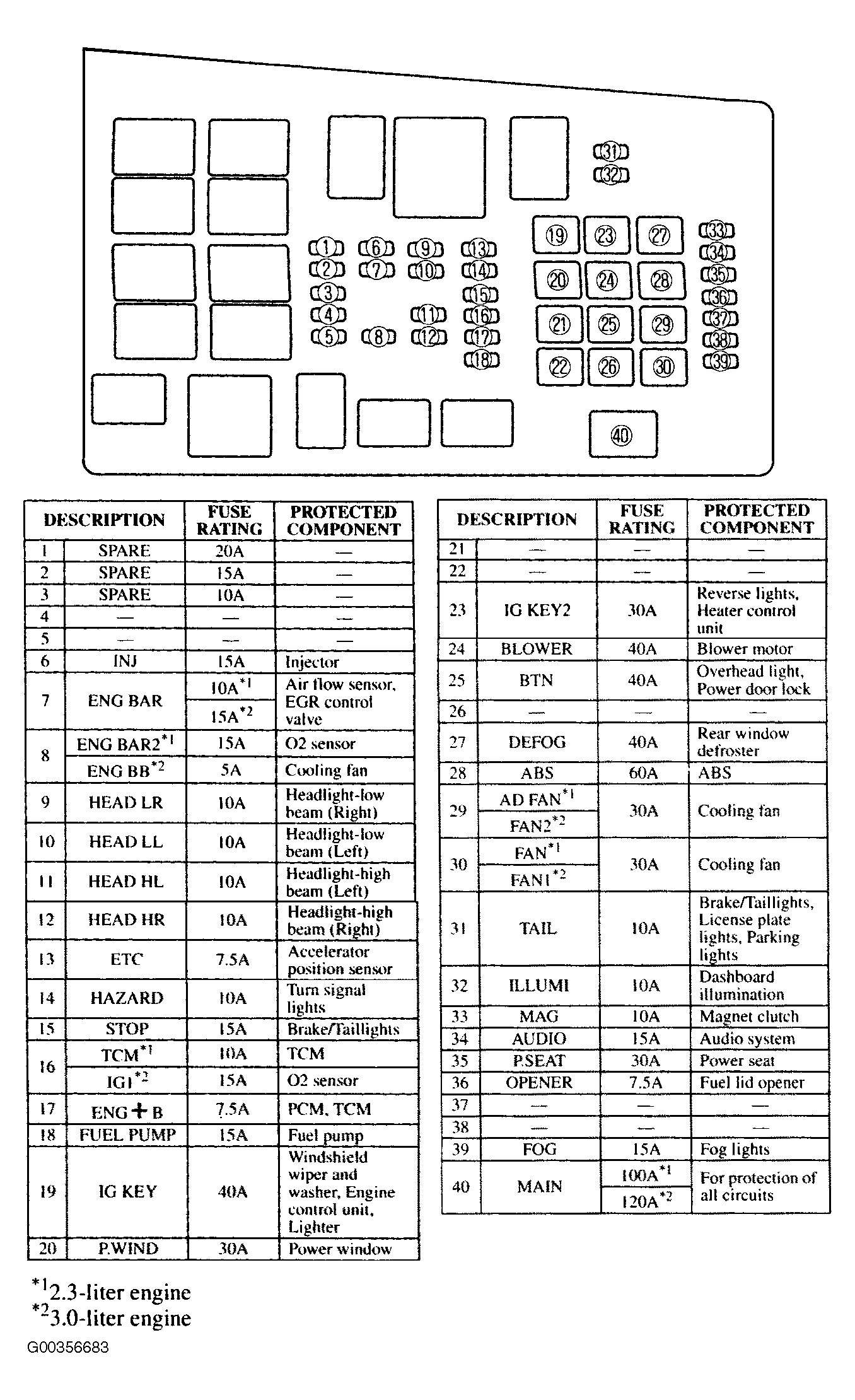

Fig 2: Identifying Engine Compartment Fuse Block Components

Courtesy of MAZDA MOTORS CORP.
