External Sealing

The CD4E transaxle has the following parts to prevent external fluid leakages:

Gaskets
Lip type seals
O-rings
Seal rings

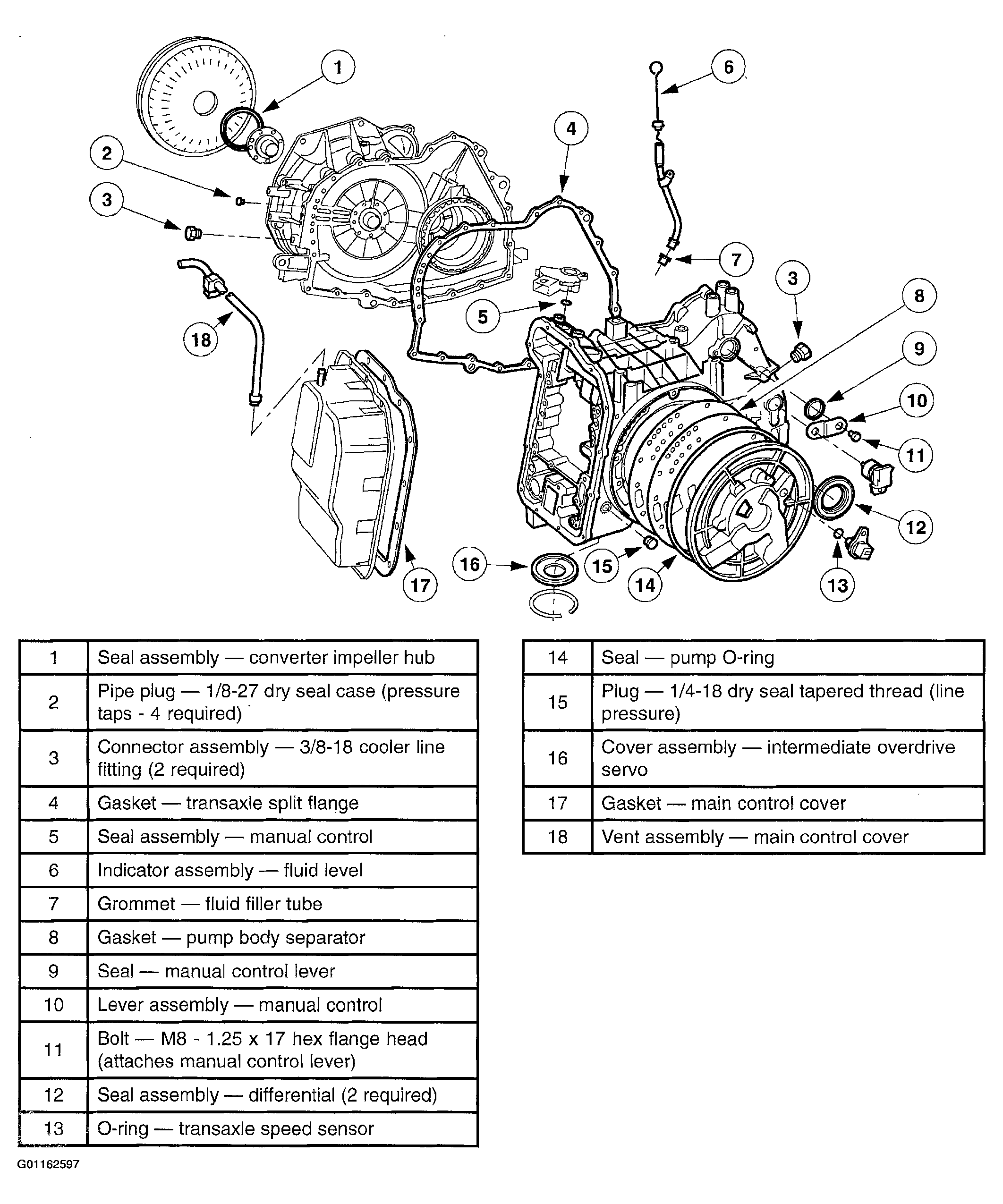

Fig 1: Locating External Seals

G01162597

Courtesy of MAZDA MOTORS CORP.
