Passenger's Side

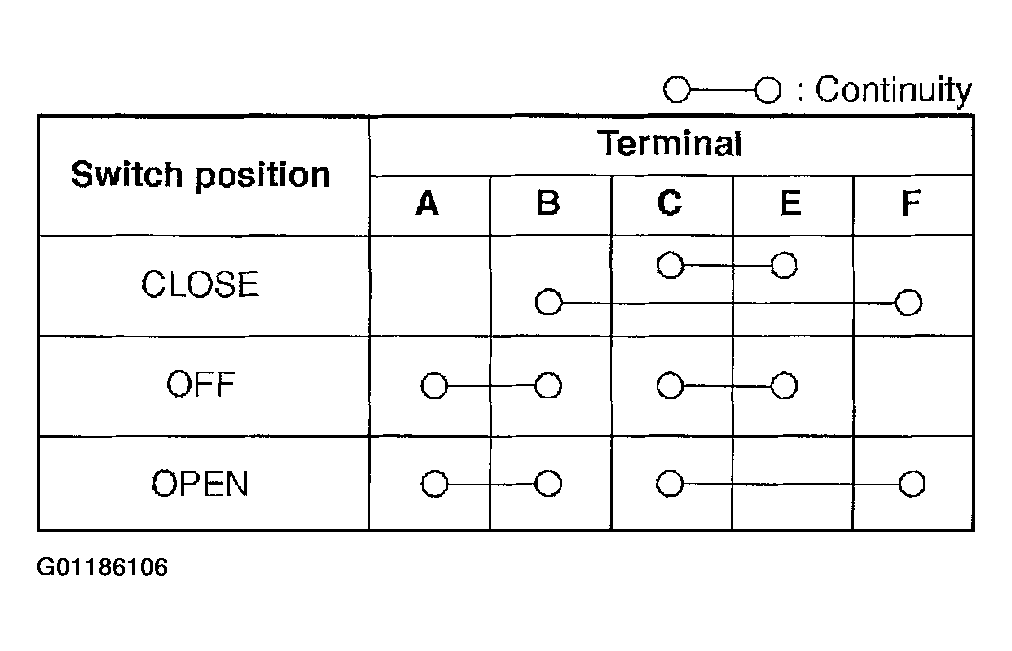

Fig 1: Passenger's Side Power Window Subswitch Continuity Check
G01186106Courtesy of MAZDA MOTORS CORP.

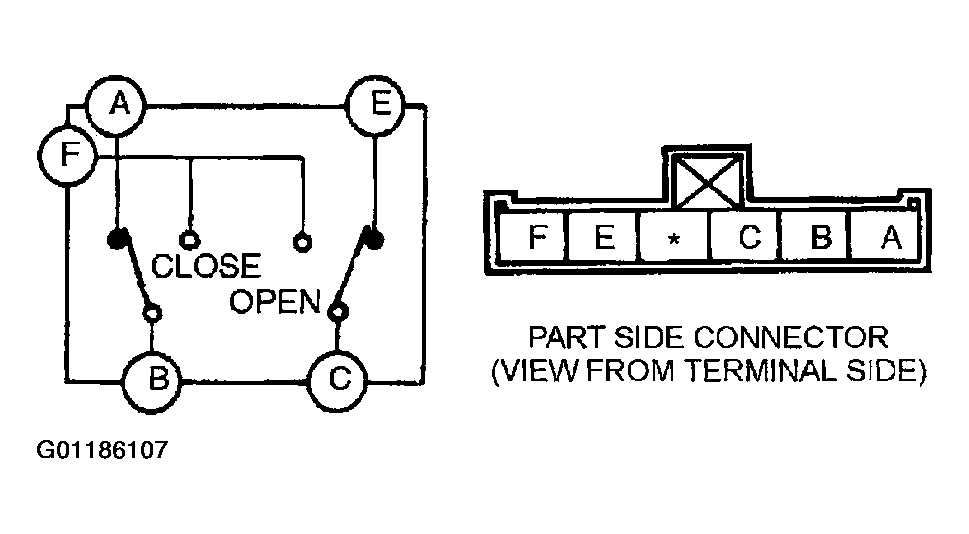

Fig 2: Identifying Passenger's Side Power Window Subswitch Terminals & Circuit
G01186107Courtesy of MAZDA MOTORS CORP.
