Home >> Mazda >> 2002 >> B4000 Base, Automatic >> Repair and Diagnosis >> Engine Mechanical >> Engine Mechanical - Overhaul >> Special Tools

Special Tools

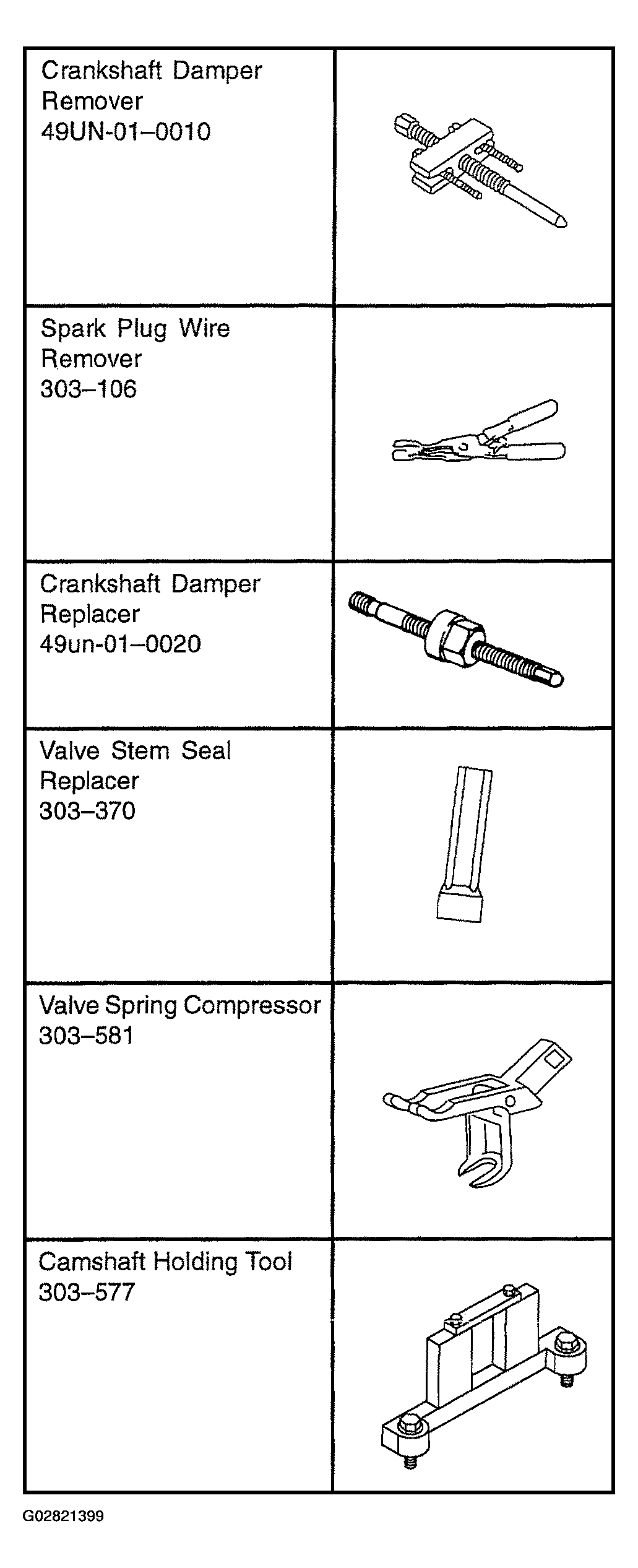

Fig 1: Identifying Special Service Tools (1 Of 3)
G02821399Courtesy of MAZDA MOTORS CORP.

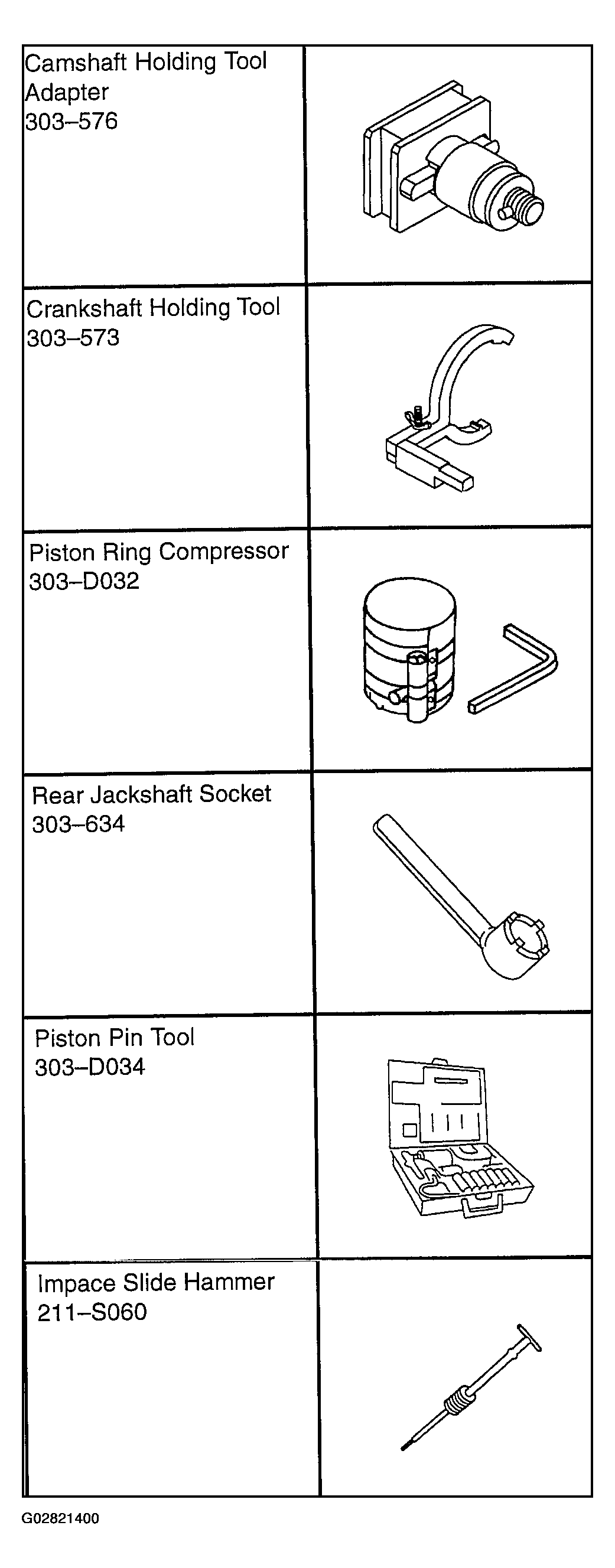

Fig 2: Identifying Special Service Tools (2 Of 3)
G02821400Courtesy of MAZDA MOTORS CORP.

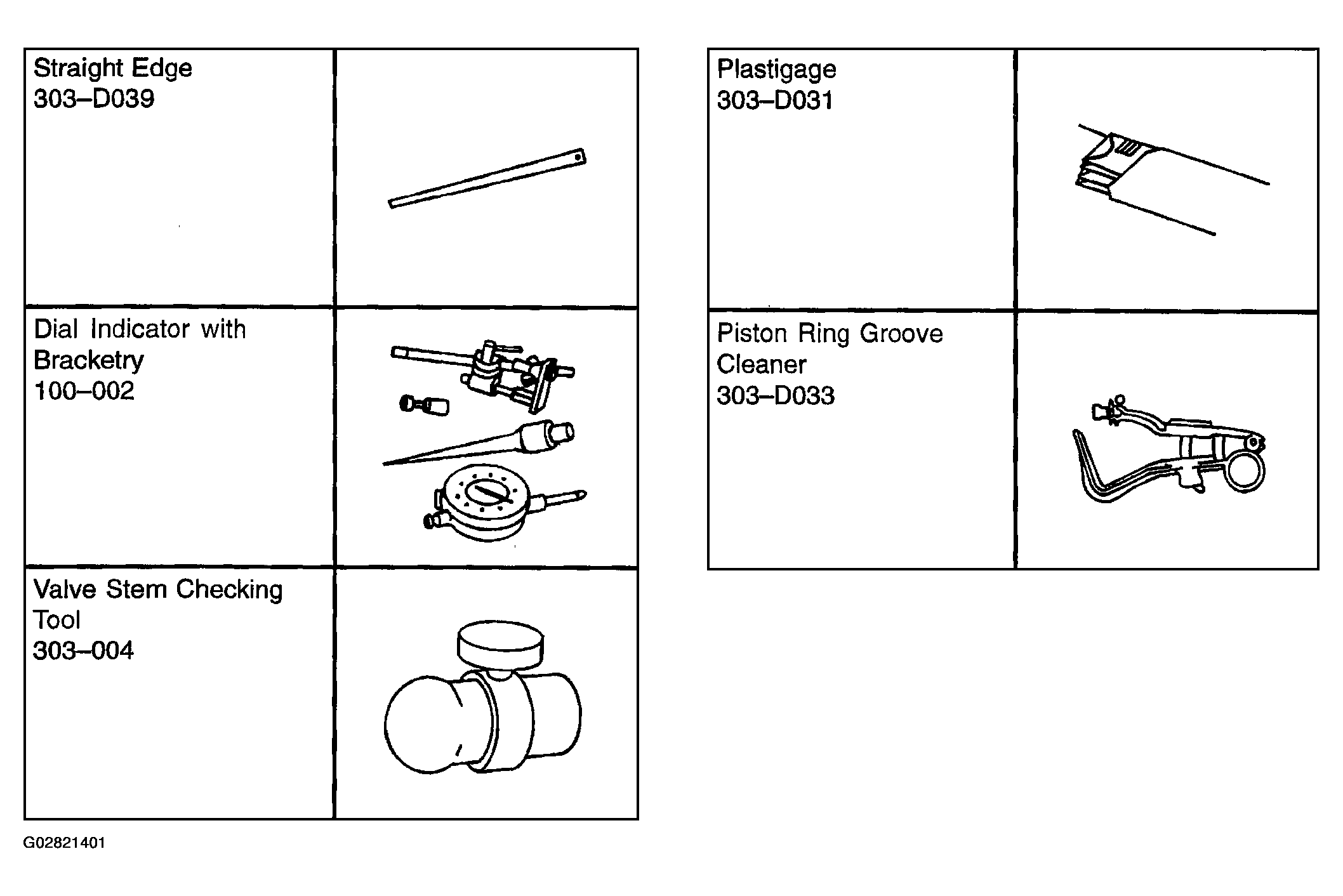

Fig 3: Identifying Special Service Tools (3 Of 3)
G02821401Courtesy of MAZDA MOTORS CORP.
