Main Fuse Block

Main fuse block is located on driver's side of engine compartment. See Fig 1 .

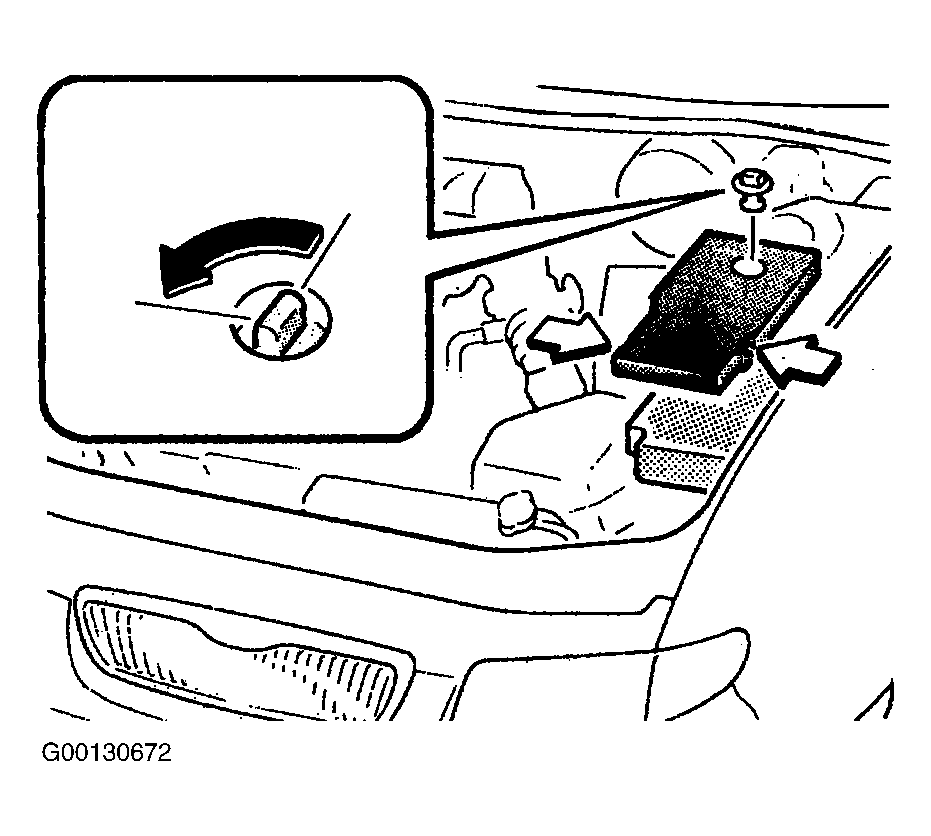

Fig 1: Locating Main Fuse Block
G00130672Courtesy of MAZDA MOTORS CORP.

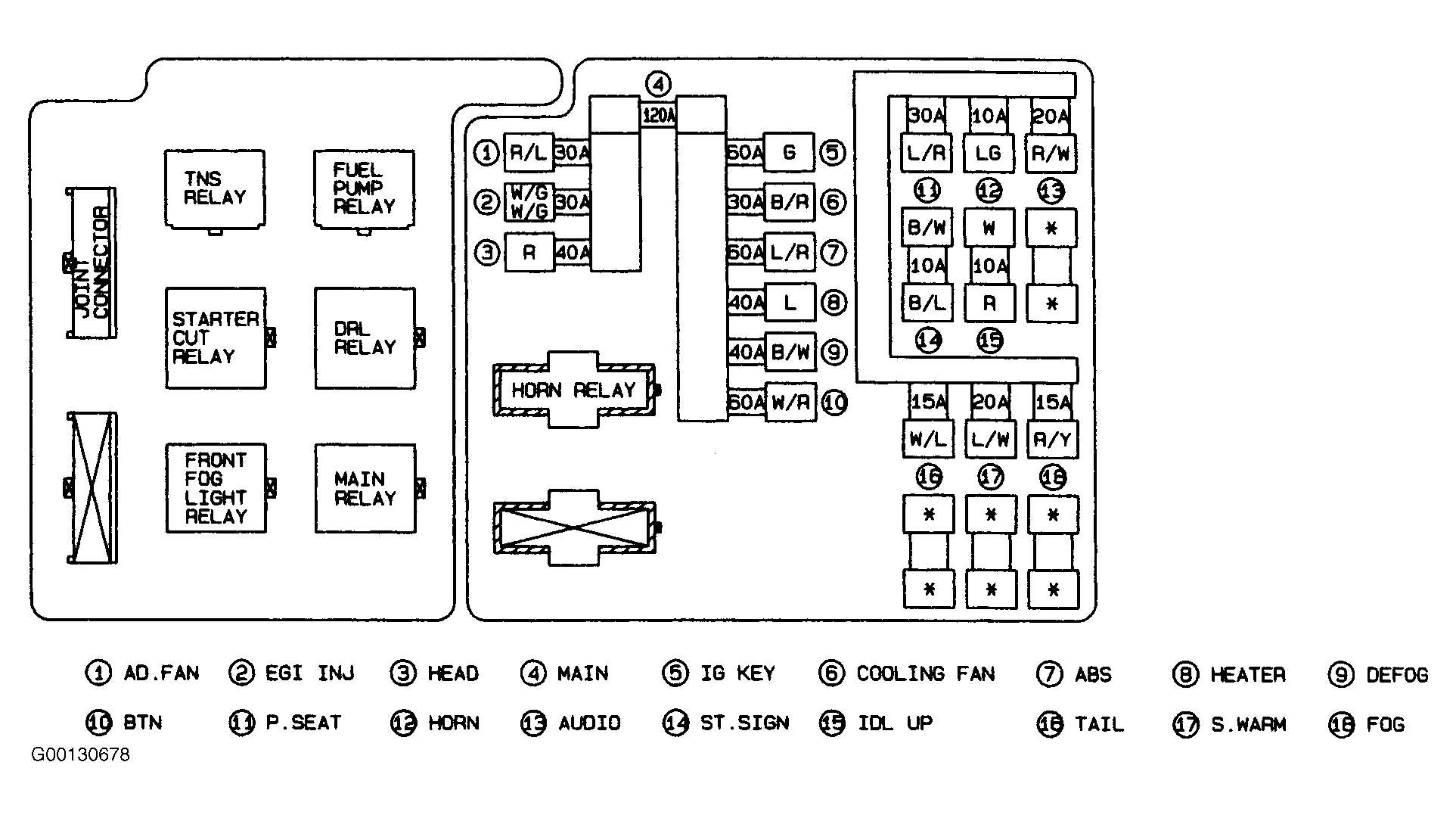

Fig 2: Identifying Main Fuse Block Components
G00130678Courtesy of MAZDA MOTORS CORP.
