Joint Box

Joint box is located on under driver's side of instrument panel, behind kick panel. See Fig 1 .

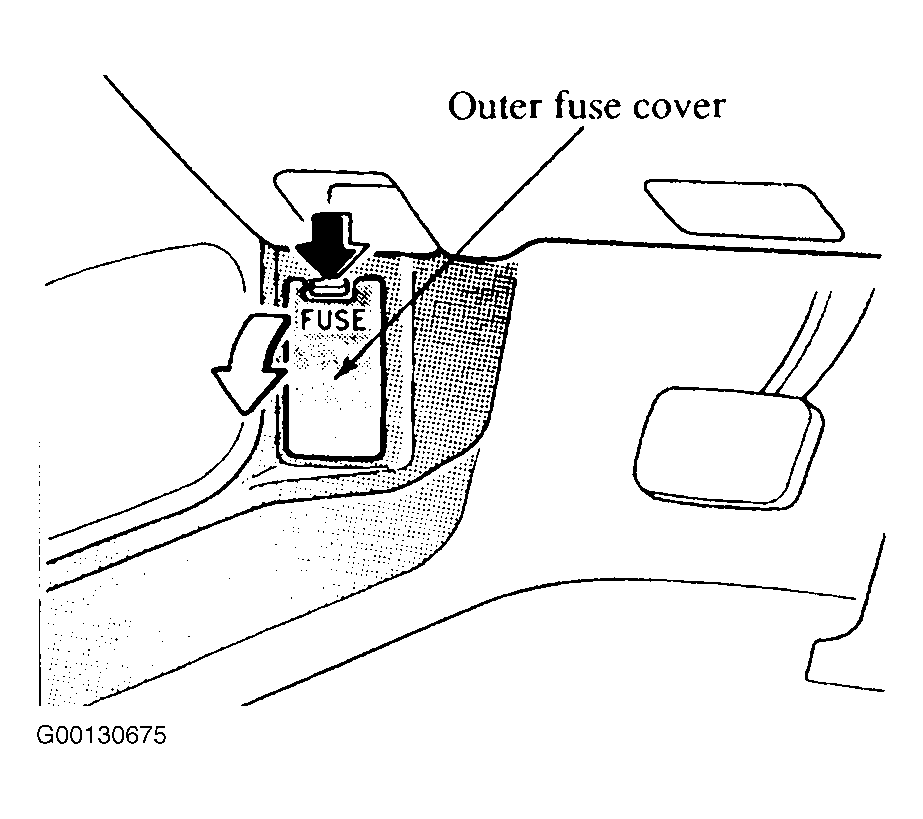

Fig 1: Locating Joint Box

Courtesy of MAZDA MOTORS CORP.

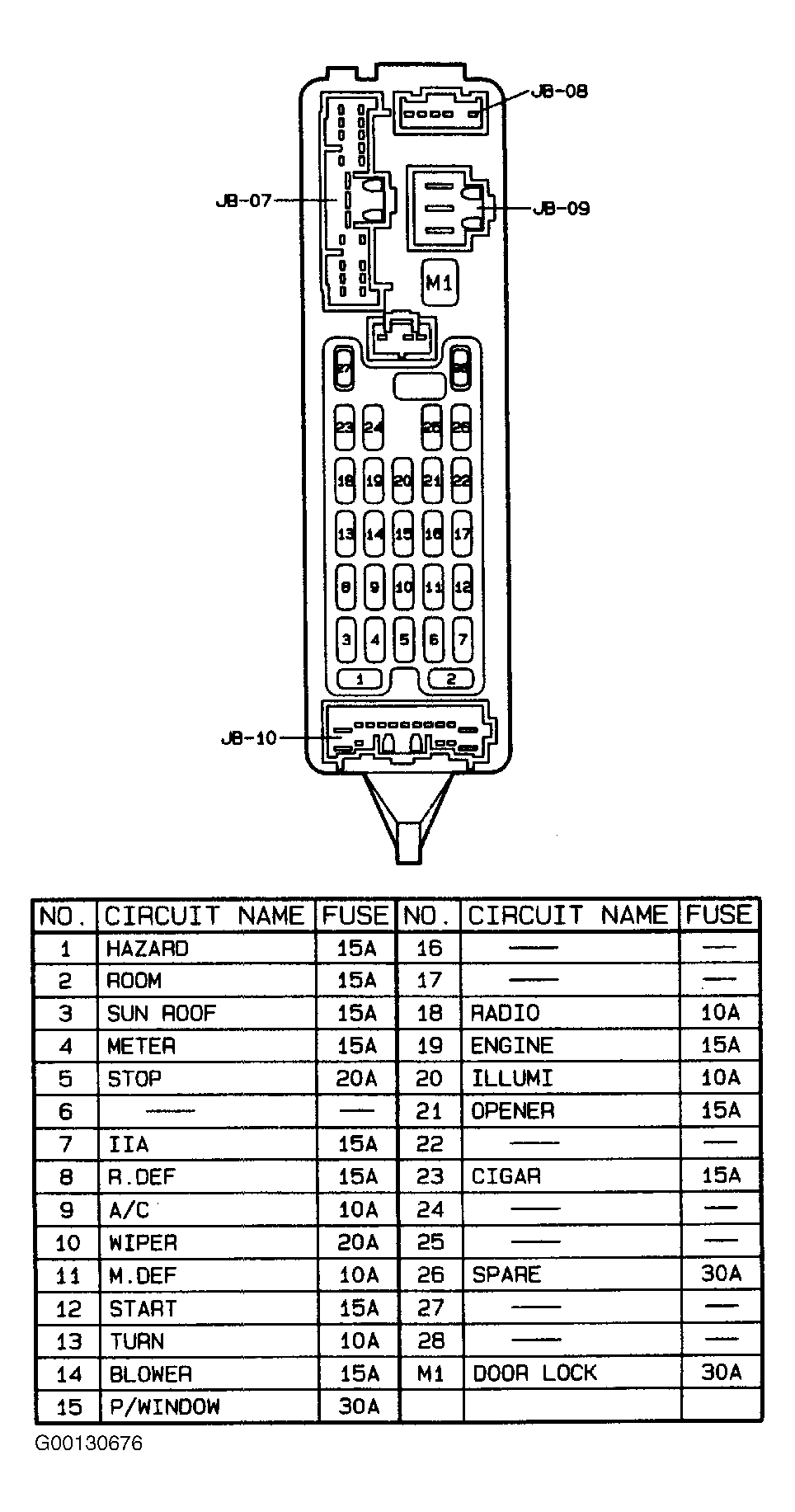

Fig 2: Identifying Joint Box Components

Courtesy of MAZDA MOTORS CORP.
