Torque Specifications
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||
|---|---|---|---|---|
| Back-Up Light Switch | 18-25 (25-34) | |||

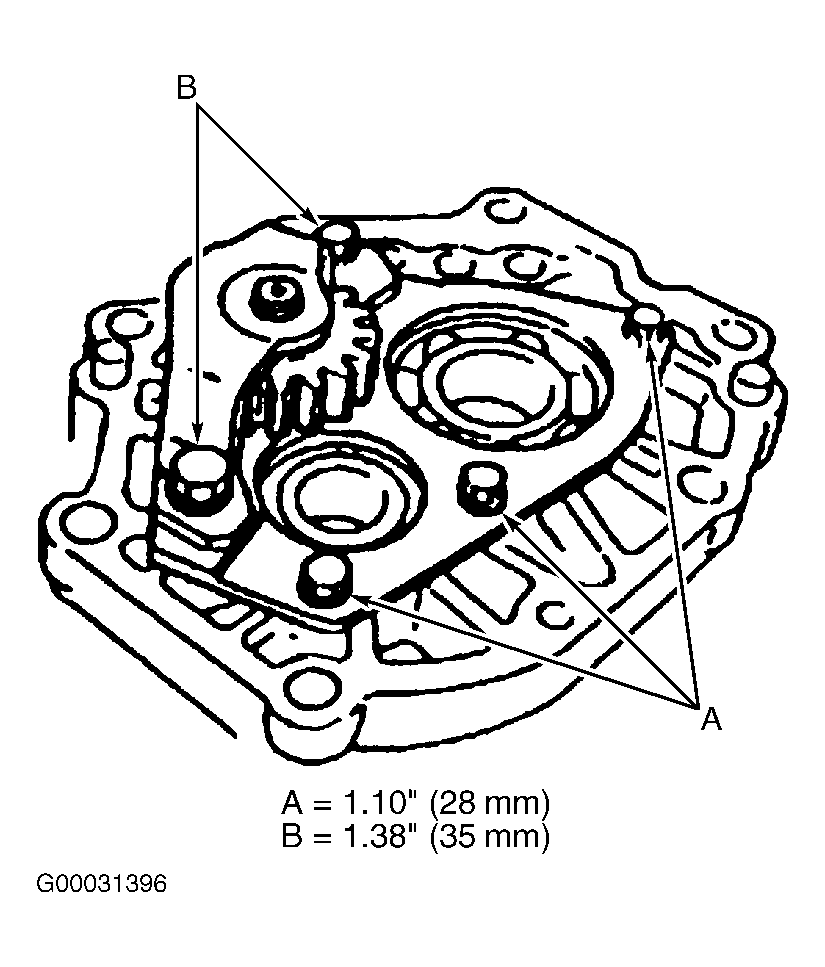

| Bearing Cover Bolt (1) | ||||
| "A" | 15-19 (20-26) | |||
| "B" | 27-39 (37-53) | |||
| Cap Plug | 14-18 (19-25) | |||
| Countershaft Lock Nut | 94-145 (128-196) | |||
| Extension Housing | 16-22 (22-30) | |||
| Input Shaft Front Cover | 14-18 (19-25) | |||
| Mainshaft Lock Nut | 94-173 (128-235) | |||
| Neutral Safety Switch | 18-25 (25-34) | |||
| Spring Cap Bolt | 14-18 (19-25) | |||
| INCH Lbs. (N.m) | ||||
| Reverse Idler Gear Shaft | 70-104 (7.9-11.7) | |||
| Speedometer Sensor | 70-95 (7.9-10.7) | |||
|
||||
