Fuse Block

Fuse block is located under driver's side of instrument panel. See Fig 1 .

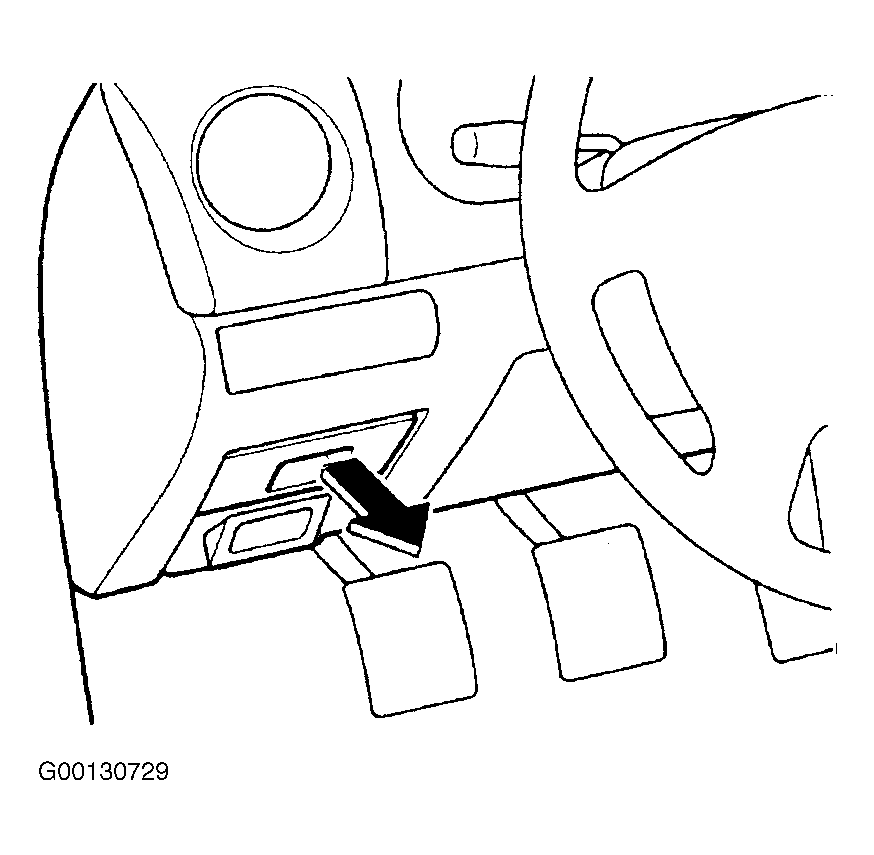

Fig 1: Locating Fuse Block

Courtesy of MAZDA MOTORS CORP.

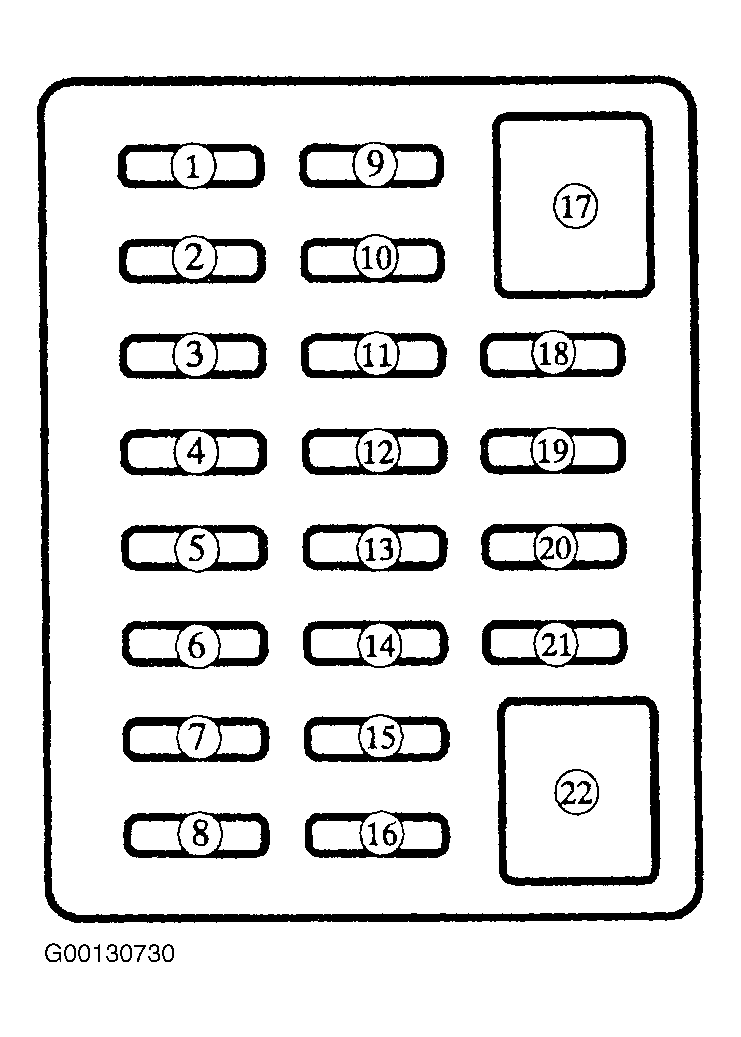

Fig 2: Identifying Fuse Block Components

Courtesy of MAZDA MOTORS CORP.

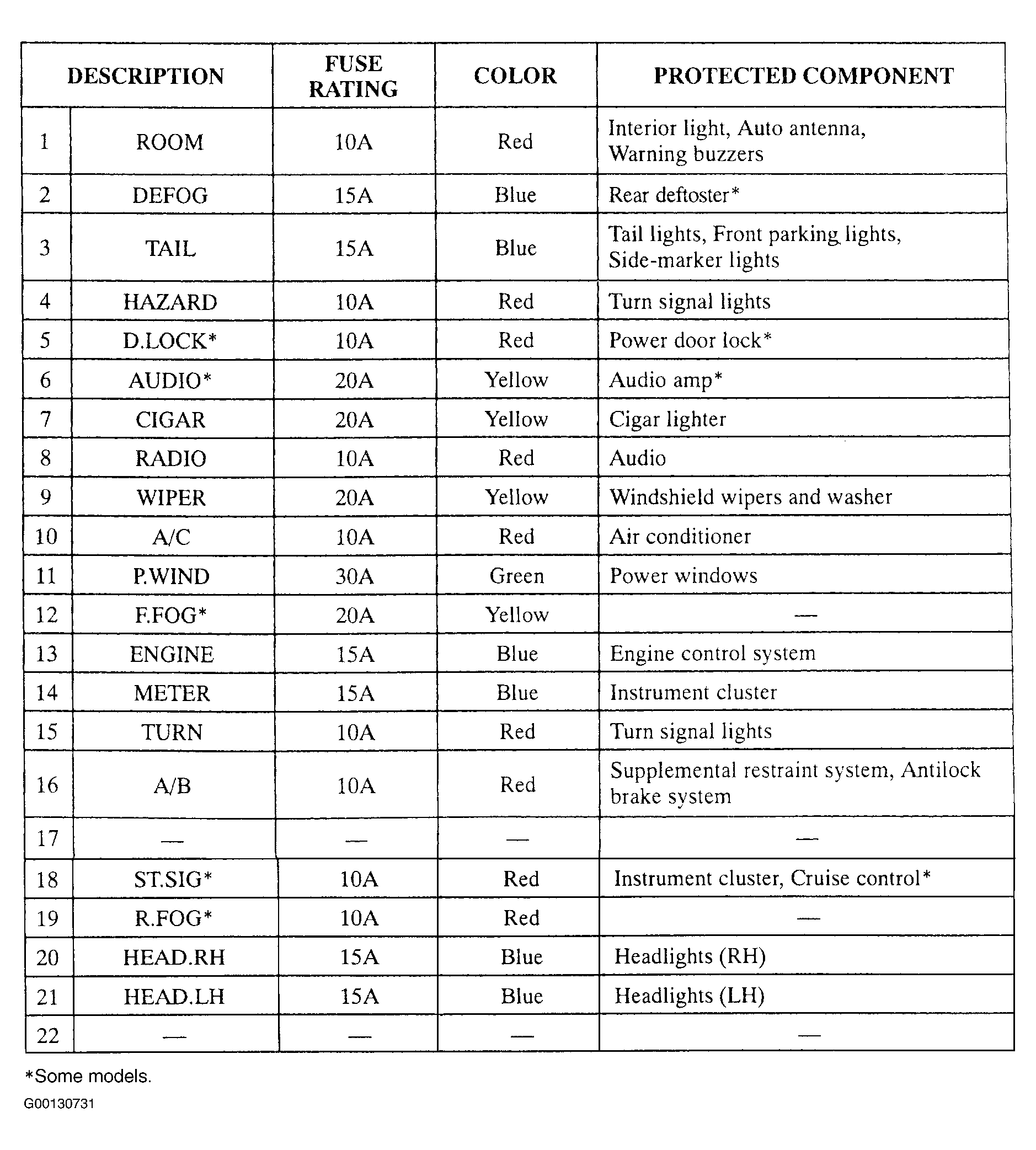

Fig 3: Fuse Block Legend

Courtesy of MAZDA MOTORS CORP.
