Door Lock Timer Unit

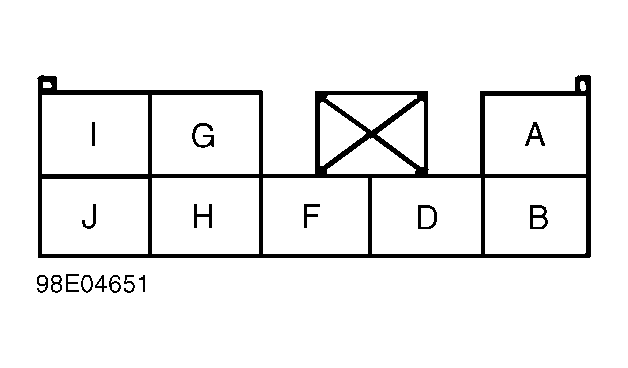

Remove door lock timer unit from bracket behind glove box. See Fig 1 . Leave door lock timer unit connector attached. Using DVOM, measure voltage at specified terminals of door lock timer unit connector (backprobe connector). See Fig 2 . See DOOR LOCK TIMER UNIT CONNECTOR PIN VOLTAGES table. Disconnect door lock timer unit connector and check continuity at terminal "A" (ground). If voltage measurements or continuity are not as specified, check related components and wiring harnesses. If related components and wiring harnesses are okay, but system is still not functioning properly, replace door lock timer unit.
DOOR LOCK TIMER UNIT CONNECTOR PIN VOLTAGES
| Terminal | Desired Condition | |
|---|---|---|
| "A" (Ground) | Continuity | |
| "B" (CPU) | ||
| Driver's Actuator Unlocked | 12V50V512V | |
| Other | 12V | |
| "D" (CPU) | ||
| Door Lock Actuator Locked | 12V50V512V | |
| Other | 12V | |
| "F" (Door Lock Actuator) | ||
| Door Lock Actuator Locked | 0V512V50V | |
| Other | 0V | |
| "G" (Door Lock Actuator) | ||
| Door Lock Actuator Unlocked | 12V50V512V | |
| Other | 0V | |
| "I" (Power Supply) | 12V | |
| "J" (Ground) | Grounded | |
