Power Mirror Motor

Disconnect power mirror motor connector. Apply battery voltage and ground to specified terminals of power mirror motor connector. See Fig 1 or Fig 2 . If mirror does not move as specified, replace power mirror assembly.

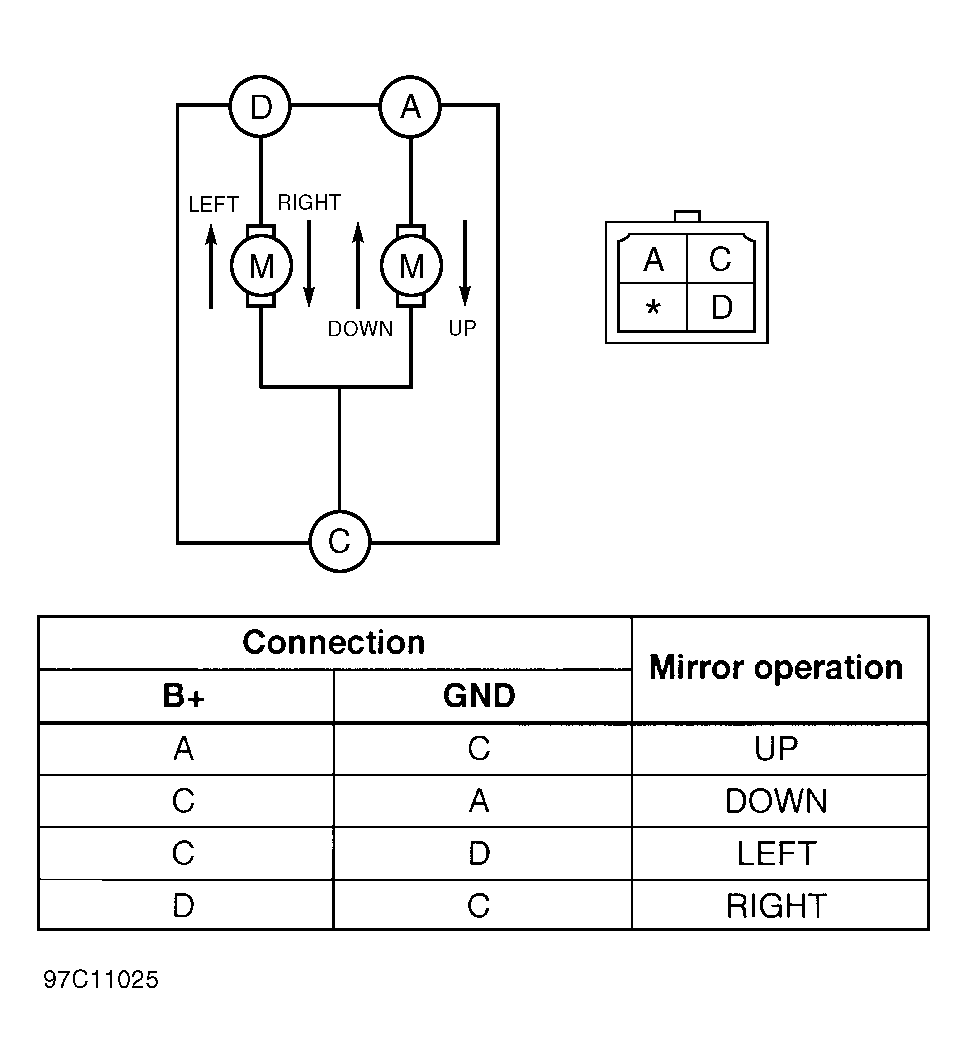

Fig 1: Testing Power Mirror Motor (Left Mirror)

Courtesy of MAZDA MOTORS CORP.

Fig 2: Testing Power Mirror Motor (Right Mirror)

Courtesy of MAZDA MOTORS CORP.
