Steering Gear
NOTE:
See
Fig 1
for exploded views of rack and pinion steering gears.

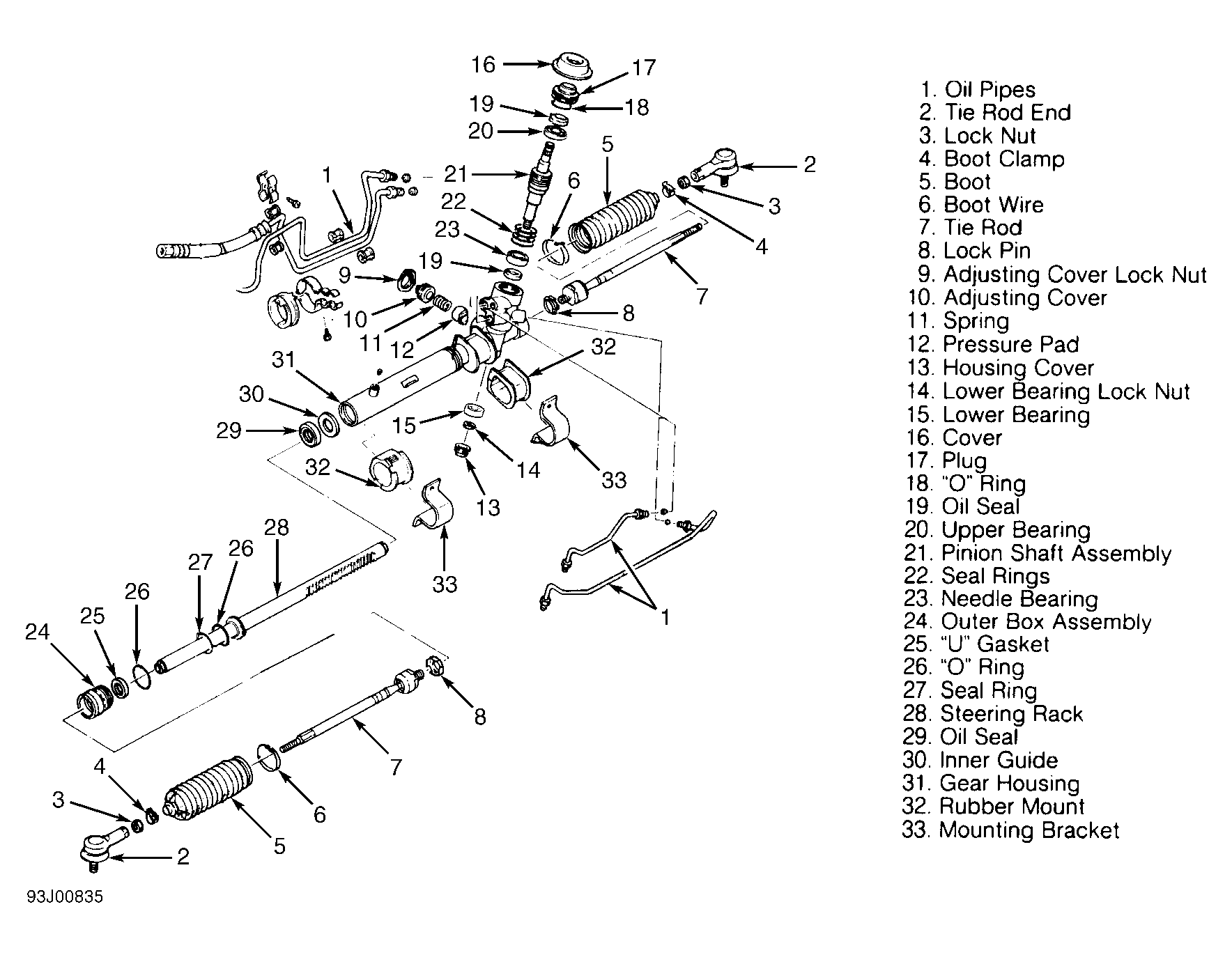

Fig 1: Exploded View Of Rack & Pinion Steering Gear
Courtesy of MAZDA MOTORS CORP.
