Blower Switch

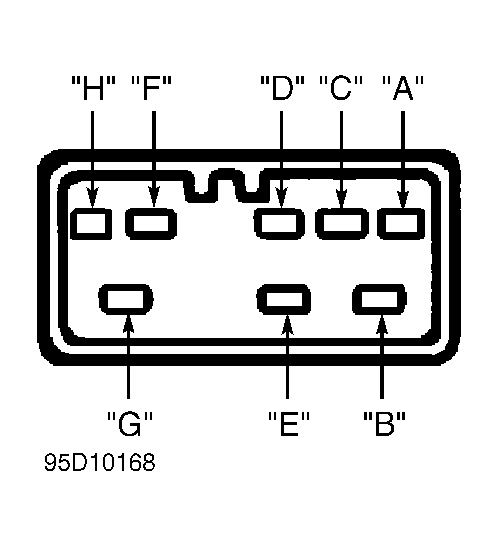

Remove heater control panel. See CONTROL PANEL under REMOVAL & INSTALLATION. Set switch in appropriate position, and check continuity between specified blower switch terminals. See appropriate BLOWER SWITCH CONTINUITY TEST table. See Fig 1 . If continuity is not as specified, replace blower switch.
BLOWER SWITCH CONTINUITY TEST
| Blower Switch Position | Continuity Between Terminals |
|---|---|
| Off | "A" & "C" |
| 1 | "A" & "C"; "B" & "F" |
| 2 | "A" & "C"; "B", "D" & "H" |
| 3 | "A" & "C"; "B", "D" & "E" |
| 4 | "A" & "C"; "B", "D" & "G" |
