Power Steering Pump: Reassembly

Apply ATF to vanes, rotor, oil seal and "O" rings. Install NEW "O" rings. To reassemble, reverse disassembly procedure. Press NEW oil seal into housing. Ensure rounded edges of vanes contact cam.

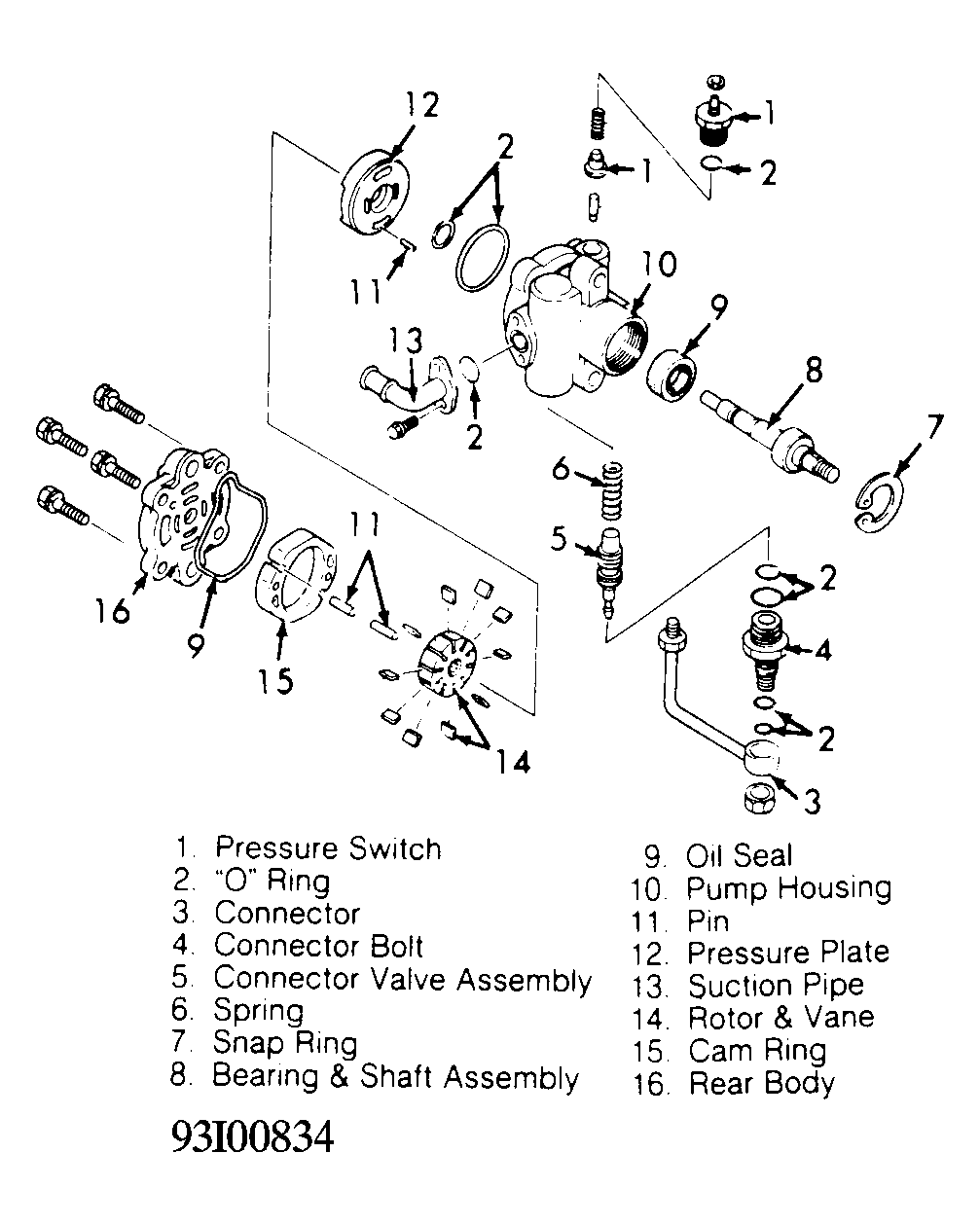

Fig 1: Exploded View Of Power Steering Pump (B2600i)

Courtesy of MAZDA MOTORS CORP.
